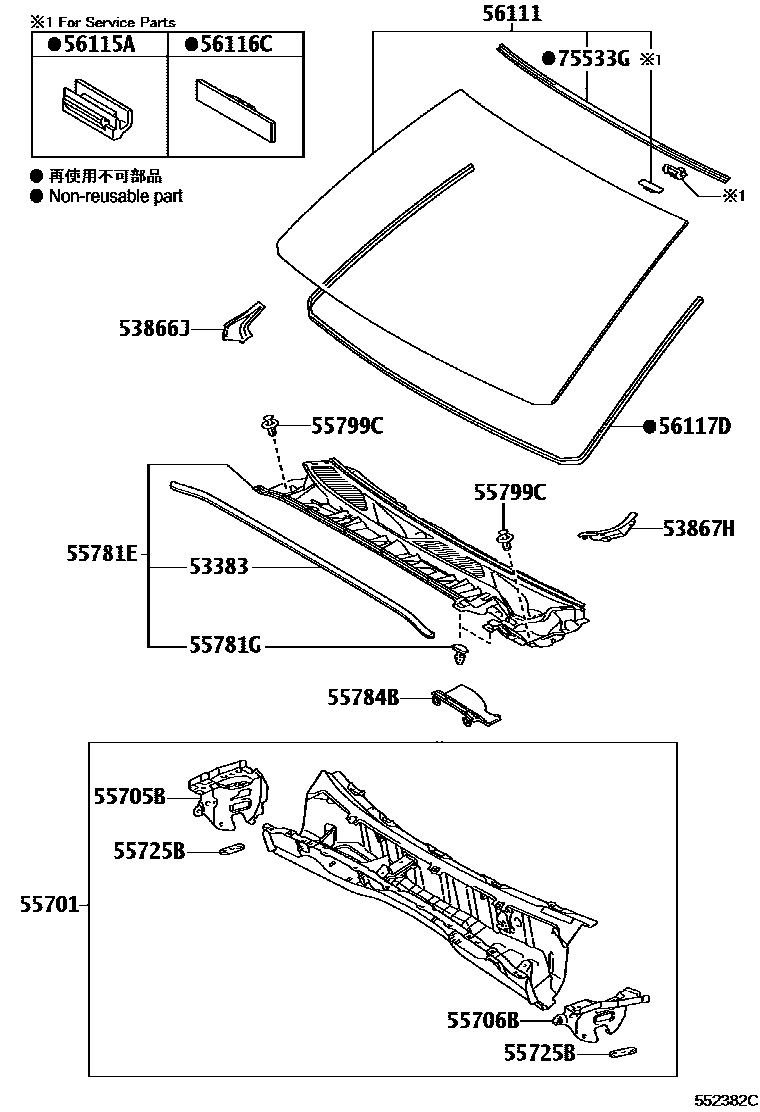

Toyota 4RUNNER — COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-35050iGRN28#200908-201308

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-35030iGRN28#200908-201308

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-35020iGRN28#201308-201908

55701PANEL SUB-ASSY, COWL

main55700-35730iTRN28#200908-201108

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-35010iGRN28#200908-201308

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-35020iGRN28#200908-201308

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-51020×2iGRN28#201308-201908

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-35100iGRN28#201908

main55708-35110iGRN285201308-201401

CANADA SPEC

main55708-35111iGRN285201402-201908

CANADA SPEC

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08108×2iGRN28#201308-201908

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-35010iTRN28#200908-201108

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-07211×2iGRN28#201308-201312

main90467-07217×2iGRN28#201908

56111GLASS, WINDSHIELD

main56101-35160supersedes 56101-35320iGRN28#201308-201908

WINDSHIELD DEICER-WITH

main56101-35180iGRN285200908-201101

CANADA SPEC&APPEARANCE PACKAGE(SR5)&BACK MONITOR-WITH(IN INNER MIRROR)

main56101-35190supersedes 56101-35320iGRN28#200908-201308

APPEARANCE PACKAGE(SR5)&BACK MONITOR-WITH(IN INNER MIRROR)

main56101-35310supersedes 56101-35320iGRN28#201908

WINDSHIELD DEICER-WITH

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iGRN28#201908

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iGRN28#200908-201308

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-35150iGRN28#201908

L=2632

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-35200iTRN28#200908-201108

16 parts on this diagram · 1 diagram in section
