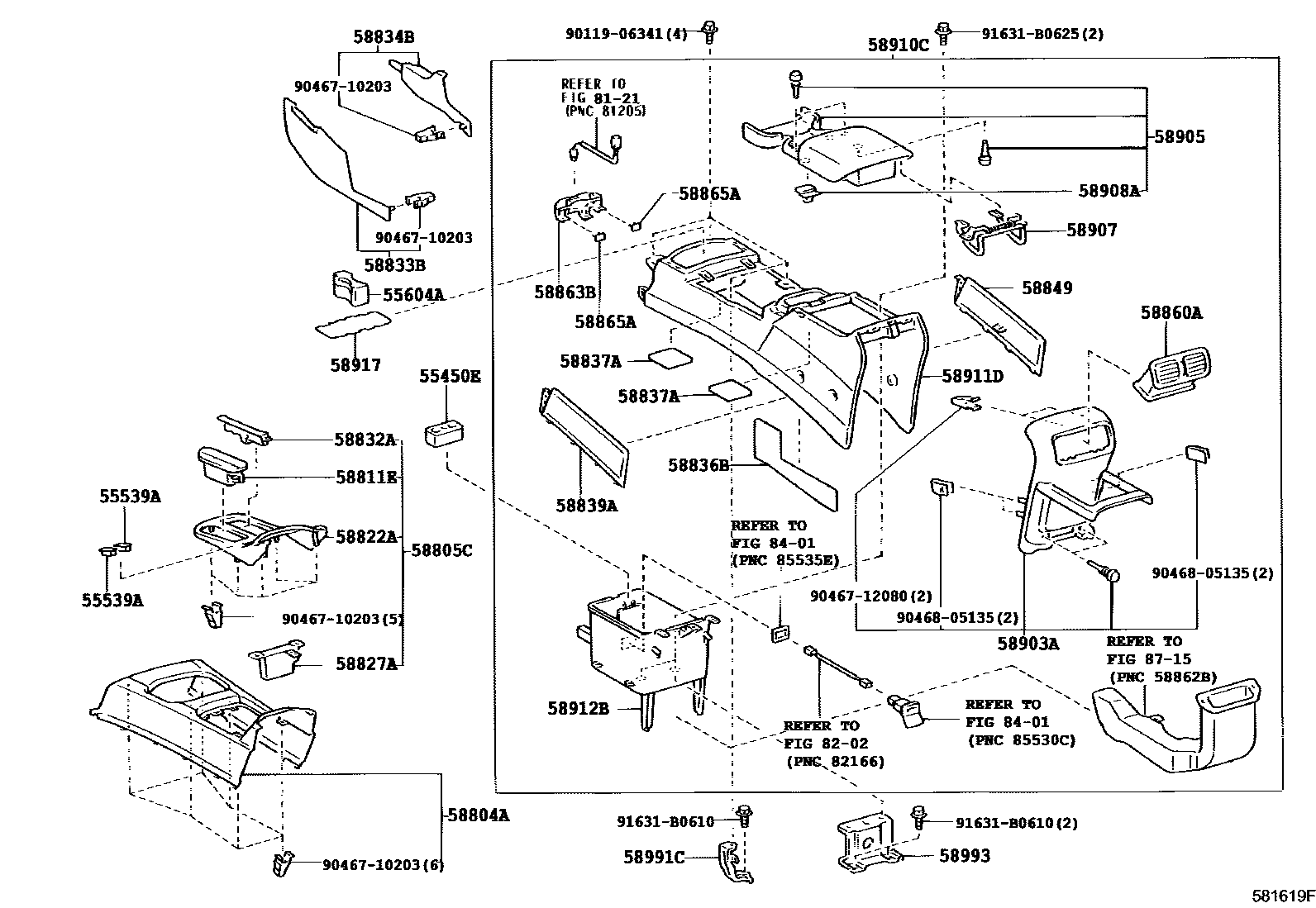

Toyota 4RUNNER — CONSOLE BOX & BRACKET
55450EBOX ASSY, COIN
55539ACOVER, SPARE SWITCH HOLE
BLACK,TRIM1#,4#; BLACK,TRIM12,13,4#
55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP
58804APANEL SUB-ASSY, CONSOLE, UPPER
APPEARANCE PACKAGE SPORT
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#,4#
58811EBOX, CONSOLE, UPPER
58822APANEL, CONSOLE, UPPER REAR
DK.GRAY,TRIM1#,4#
58827AGARNISH, CONSOLE BOX POCKET
58832AGARNISH, CONSOLE UPPER PANEL, REAR
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
STONE,TRIM1#; STONE,TRIM12,13
FAWN,TRIM4#
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
STONE,TRIM1#; STONE,TRIM12,13
FAWN,TRIM4#
58836BPAD, CONSOLE BOX SILENCER, NO.1
58837APAD, CONSOLE BOX SILENCER, NO.2
58839ACOVER, CONSOLE BOX HOLE
APPEARANCE PACKAGE SPORT; APPEARANCE PACKAGE SPORT&ACCESSORY CONNECTOR-DC12V=FRONT,REAR AC115V=FRONT; APPEARANCE PACKAGE SPORT&ACCESSORY CONNECTOR-DC12V=FRONT,REAR AC115V=FRONT&REAR AUDIO-REAR SEAT ENTERTAINMENT; APPEARANCE PACKAGE SPORT&REAR AUDIO-REAR SEAT ENTERTAINMENT
58849COVER, CONSOLE BOX HOLE, NO.2
APPEARANCE PACKAGE SPORT; APPEARANCE PACKAGE SPORT&ACCESSORY CONNECTOR-DC12V=FRONT,REAR AC115V=FRONT; APPEARANCE PACKAGE SPORT&ACCESSORY CONNECTOR-DC12V=FRONT,REAR AC115V=FRONT&REAR AUDIO-REAR SEAT ENTERTAINMENT; APPEARANCE PACKAGE SPORT&REAR AUDIO-REAR SEAT ENTERTAINMENT
58860AREGISTER ASSY, CONSOLE BOX
APPEARANCE PACKAGE SPORT; APPEARANCE PACKAGE SPORT&ACCESSORY CONNECTOR-DC12V=FRONT,REAR AC115V=FRONT; APPEARANCE PACKAGE SPORT&ACCESSORY CONNECTOR-DC12V=FRONT,REAR AC115V=FRONT&REAR AUDIO-REAR SEAT ENTERTAINMENT; APPEARANCE PACKAGE SPORT&REAR AUDIO-REAR SEAT ENTERTAINMENT
58863BSUPPORT, CONSOLE BOX, NO.3
58865ALENS, FRONT CONSOLE BOX, NO.1
58903APANEL SUB-ASSY, CONSOLE REAR END
DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM12,13,4#
APPEARANCE PACKAGE SPORT&ACCESSORY CONNECTOR-DC12V=FRONT,REAR AC115V=FRONT&REAR AUDIO-REAR SEAT ENTERTAINMENT,DK.GRAY,TRIM1#; APPEARANCE PACKAGE SPORT&ACCESSORY CONNECTOR-DC12V=FRONT,REAR AC115V=FRONT,DK.GRAY,TRIM1#; APPEARANCE PACKAGE SPORT&REAR AUDIO-REAR SEAT ENTERTAINMENT,DK.GRAY,TRIM1#; APPEARANCE PACKAGE SPORT,DK.GRAY,TRIM1#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
DK.GRAY,TRIM12,13,4#
DK.GRAY,TRIM12,13,4#
DK.GRAY,TRIM1#,4#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58910CBOX ASSY, CONSOLE, REAR
ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,STONE,TRIM12,13
ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,FAWN,TRIM4#
ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,STONE,TRIM1#
ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,FAWN,TRIM4#
REAR AUDIO-REAR SEAT ENTERTAINMENT,STONE,TRIM1#
REAR AUDIO-REAR SEAT ENTERTAINMENT,FAWN,TRIM4#
APPEARANCE PACKAGE SPORT,STONE,TRIM1#
APPEARANCE PACKAGE SPORT&REAR AUDIO-REAR SEAT ENTERTAINMENT,STONE,TRIM1#
URBAN RUNNER,STONE,TRIM1#
REAR AUDIO-REAR SEAT ENTERTAINMENT,STONE,TRIM1#
REAR AUDIO-REAR SEAT ENTERTAINMENT,FAWN,TRIM4#
ACCESSORY CONNECTOR-DC12V=FRONT,REAR AC115V=FRONT&REAR AUDIO-REAR SEAT ENTERTAINMENT,STONE,TRIM1#
ACCESSORY CONNECTOR-DC12V=FRONT,REAR AC115V=FRONT&REAR AUDIO-REAR SEAT ENTERTAINMENT,FAWN,TRIM4#
APPEARANCE PACKAGE SPORT&ACCESSORY CONNECTOR-DC12V=FRONT,REAR AC115V=FRONT,STONE,TRIM1#
APPEARANCE PACKAGE SPORT&ACCESSORY CONNECTOR-DC12V=FRONT,REAR AC115V=FRONT&REAR AUDIO-REAR SEAT ENTERTAINMENT,STONE,TRIM1#
ACCESSORY CONNECTOR-DC12V=FRONT,REAR AC115V=FRONT&REAR AUDIO-REAR SEAT ENTERTAINMENT,STONE,TRIM1#
ACCESSORY CONNECTOR-DC12V=FRONT,REAR AC115V=FRONT&REAR AUDIO-REAR SEAT ENTERTAINMENT,FAWN,TRIM4#
ACCESSORY CONNECTOR-DC12V=FRONT,REAR AC115V=FRONT,STONE,TRIM1#
ACCESSORY CONNECTOR-DC12V=FRONT,REAR AC115V=FRONT,FAWN,TRIM4#
ACCESSORY CONNECTOR-DC12V=FRONT,REAR AC115V=FRONT,STONE,TRIM1#
ACCESSORY CONNECTOR-DC12V=FRONT,REAR AC115V=FRONT,FAWN,TRIM4#
58911DBOX, REAR CONSOLE, UPPER
STONE,TRIM1#; STONE,TRIM12,13
FAWN,TRIM4#
58912BBOX, REAR CONSOLE, LOWER
ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1
58917MAT, BOX BOTTOM, NO.2
58991CBRACKET, CONSOLE BOX MOUNTING, FRONT
58993BRACKET, CONSOLE BOX MOUNTING, REAR
8121INTERIOR LAMP
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
9011906341
main90119-06341
9046710203
main90467-10203
9046712080
main90467-12080
9046805135
main90468-05135
91631B0610
main91631-B0610
91631B0625
main91631-B0625
38 parts on this diagram · 3 diagrams in section
CONSOLE BOX & BRACKET for Toyota 4RUNNER
This section contains 44 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota 4RUNNER. Key components include: BASE, SWITCH, BOX ASSY, COIN, COVER, SPARE SWITCH HOLE, HOLDER SUB-ASSY, INSTRUMENT PANEL CUP.
