Toyota 4RUNNER — CAUTION PLATE & NAME PLATE (ENGINE)

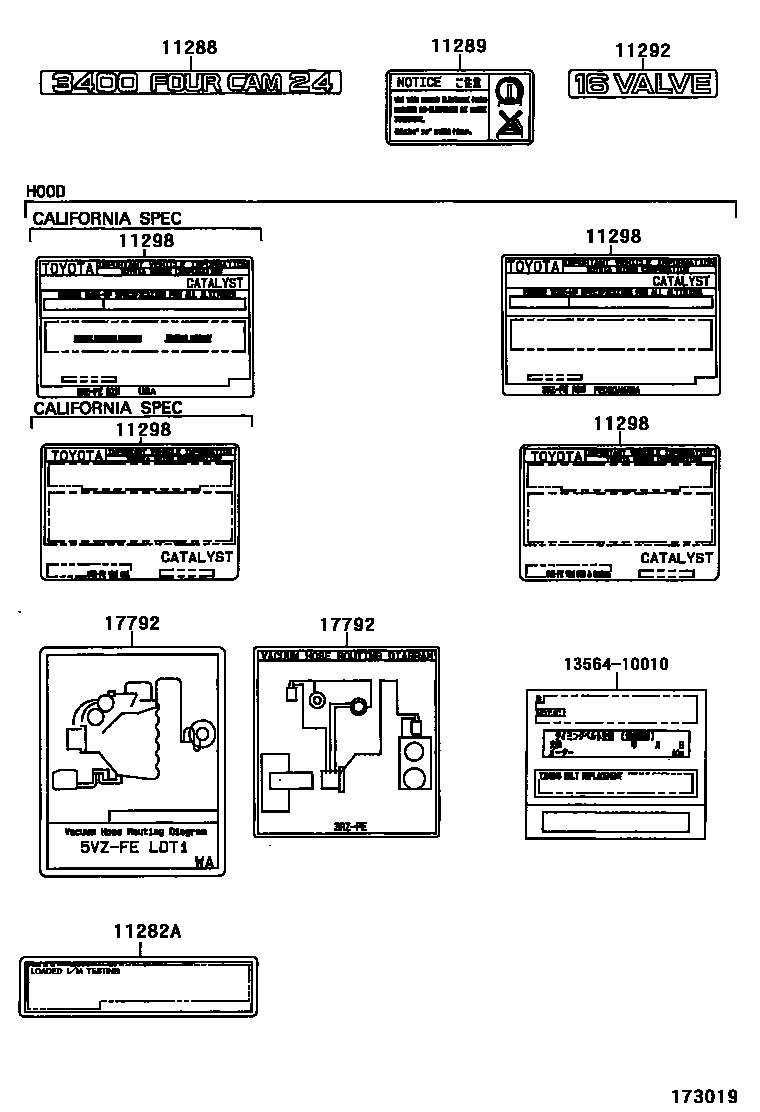

Parts diagram

11282ALABEL, LOADED TESTING CAUTION

main11282-74010i200107

11288PLATE, ENGINE SYSTEM

main11288-62010i199511

11289PLATE, SPARK PLUG CAUTION

main11289-62020i199511

11292PLATE, ENGINE NAME, NO.2

main11292-74130i199511-199905

11298PLATE, EMISSION CONTROL INFORMATION

main11298-62350i199511-199608

main11298-62360i199511-199608

CALIFORNIA SPEC

main11298-62440i199608-199708

main11298-62450i199608-199708

CALIFORNIA SPEC

main11298-62520i199708-199807

main11298-62540i199708-199807

CALIFORNIA SPEC

main11298-62650i199807-199908

main11298-62660i199807-199908

CALIFORNIA SPEC

main11298-62680i199908-200008

main11298-62690i199908-200008

CALIFORNIA SPEC

main11298-62730i200008-200107

main11298-62750i200107

main11298-75130i199511-199608

main11298-75150i199511-199608

CALIFORNIA SPEC

main11298-75160i199511-199608

main11298-75170i199511-199608

CALIFORNIA SPEC

main11298-75220i199608-199708

CALIFORNIA SPEC

main11298-75250i199608-199708

main11298-75260i199608-199708

CALIFORNIA SPEC

main11298-75270i199608-199708

main11298-75290i199708-199807

main11298-75320i199708-199807

CALIFORNIA SPEC

main11298-75370i199708-199807

main11298-75380i199708-199807

CALIFORNIA SPEC

main11298-75400i199807-199908

main11298-75540i199908-200008

main11298-75550i199908-200008

CALIFORNIA SPEC

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-62150i199511-199608

main17792-62190i199608-199708

main17792-62210i199708-199807

main17792-62250i199807-200008

main17792-62280i200008

main17792-75200i199511-199807

main17792-75300i199807-200008

main17792-75320i199908-200008

CALIFORNIA SPEC

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

7 parts on this diagram · 1 diagram in section
