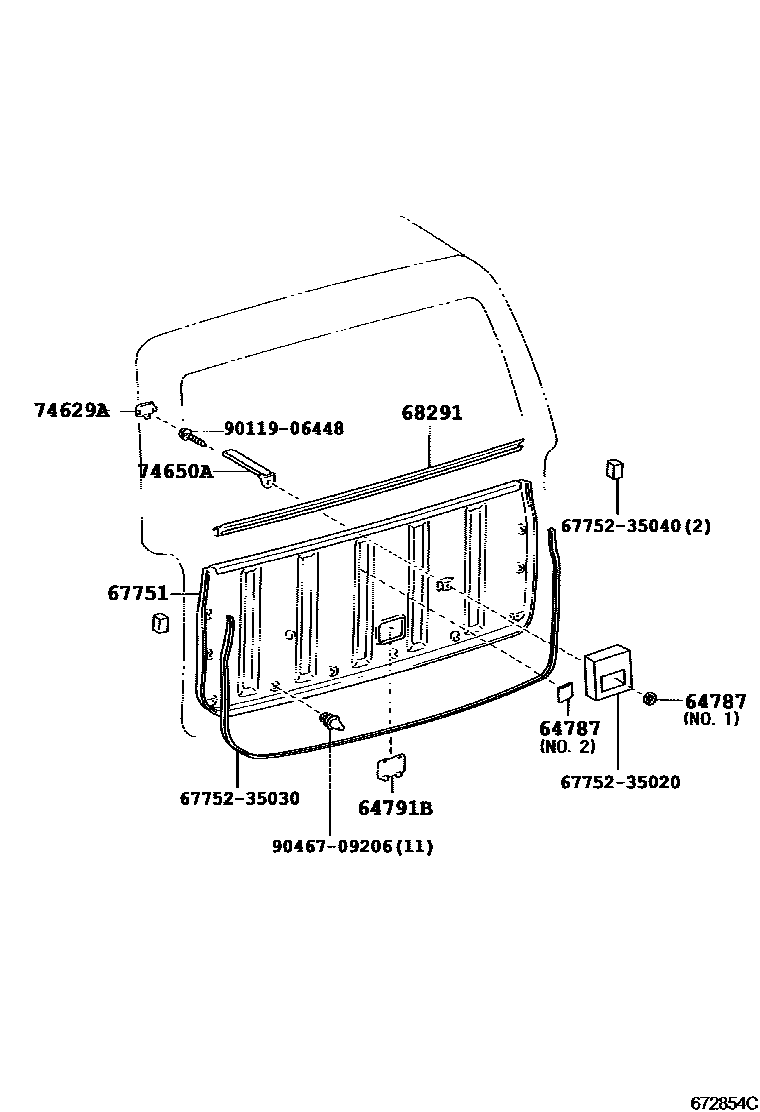

Toyota 4RUNNER — BACK DOOR PANEL & GLASS

64787PAD, BACK DOOR TRIM

main64787-35020i200508

NO.1

main64788-35010i200208-200508

NO.2

64791BCOVER, BACK DOOR TRIM

main64791-35010-B0i200208-200408

STONE,TRIM1#; STONE,TRIM12,13

main64791-35010-E0i200508-200908

FAWN,TRIM4#

67751BOARD, BACK DOOR TRIM

main64781-35020-B0i200208-200408

STONE,TRIM1#; STONE,TRIM12,13

main64781-35020-E0i200508-200908

FAWN,TRIM4#

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-35020i200208-200402

main68291-35021i200402-200408

74629ACOVER, ASSIST STRAP HOLE

main74629-35020-B0i200208-200408

STONE,TRIM1#; STONE,TRIM12,13

main74629-35020-E0i200208-200408

FAWN,TRIM4#

74650ASTRAP ASSY, ASSIST

main74650-35030-B0i200208-200408

GRAY,TRIM1#; GRAY,TRIM12,13

main74650-35030-E0i200208-200508

FAWN,TRIM4#

6775235020TRIM, BACK DOOR, UPPER

main67752-35020

6775235030TRIM, BACK DOOR, UPPER

main67752-35030

6775235040TRIM, BACK DOOR, UPPER

main67752-35040

9011906448

main90119-06448

9046709206

main90467-09206

11 parts on this diagram · 2 diagrams in section

BACK DOOR PANEL & GLASS for Toyota 4RUNNER

This section contains 35 genuine Toyota parts for the BACK DOOR PANEL & GLASS system of the Toyota 4RUNNER. Key components include: PAD, BACK DOOR TRIM, COVER, BACK DOOR TRIM, PANEL SUB-ASSY, BACK DOOR, STOPPER, BACK DOOR, LOWER, CUSHION, BACK DOOR LOWER STOPPER.
