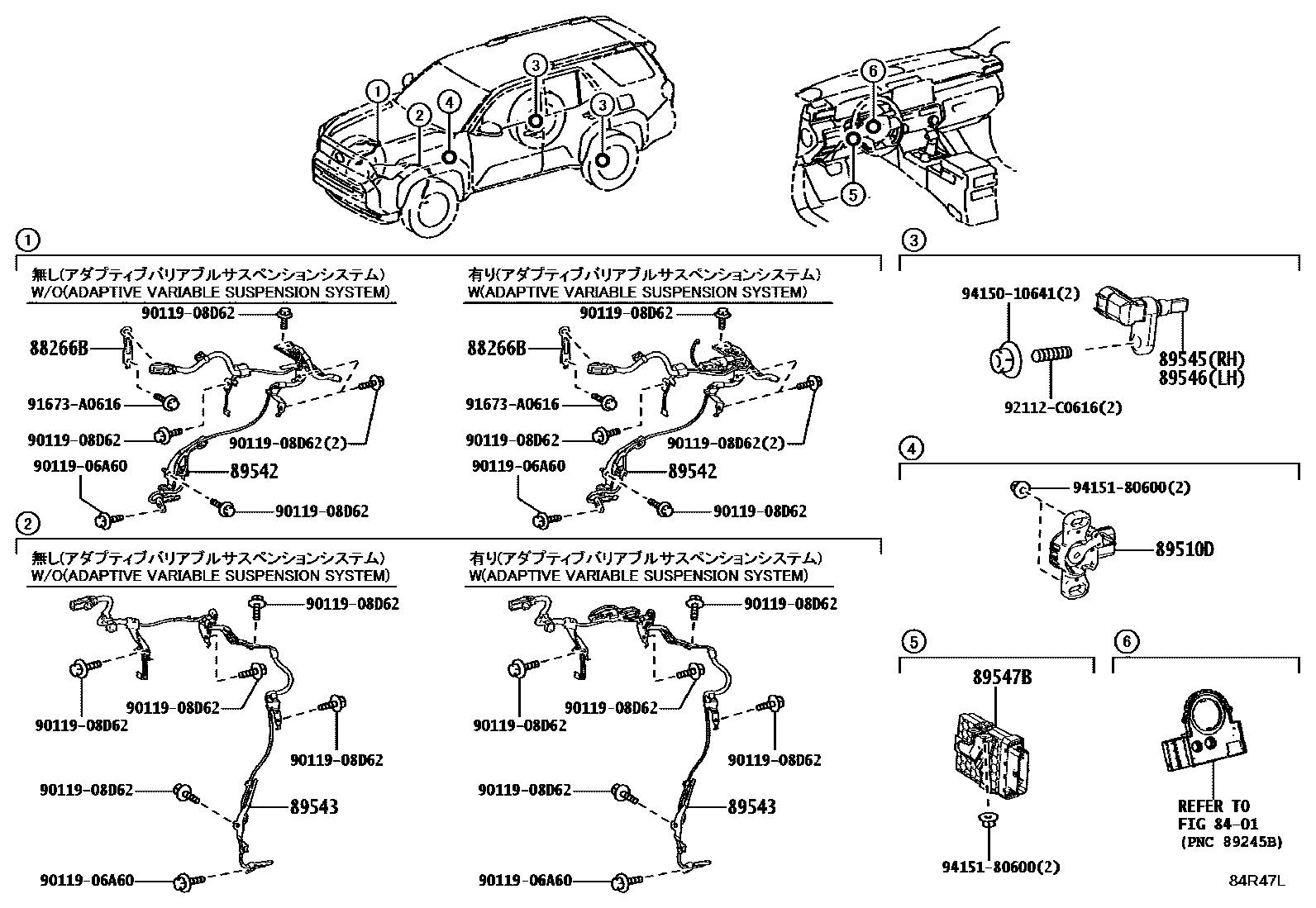

Toyota 4RUNNER — ABS & VSC

8401

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-60D50iTZNA5#202412

89510DSENSOR ASSY, BRAKE PEDAL STROKE

89542SENSOR, SPEED, FRONT RH

main89542-60120iTZNA5#202412

89543SENSOR, SPEED, FRONT LH

main89543-60090iTZNA5#202412

89545SENSOR, SPEED, REAR RH

main89545-60060iTZNA50202412

89546SENSOR, SPEED, REAR LH

main89546-60060iTZNA50202412

89547BRELAY, BRAKE CONTROL W/BRACKET

main89547-04031iTZNA50202412

TOWING PACKAGE

9011906A60

main90119-06A60

9011908D62

main90119-08D62

91673A0616

main91673-A0616

92112C0616

main92112-C0616

9415010641

main94150-10641

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
