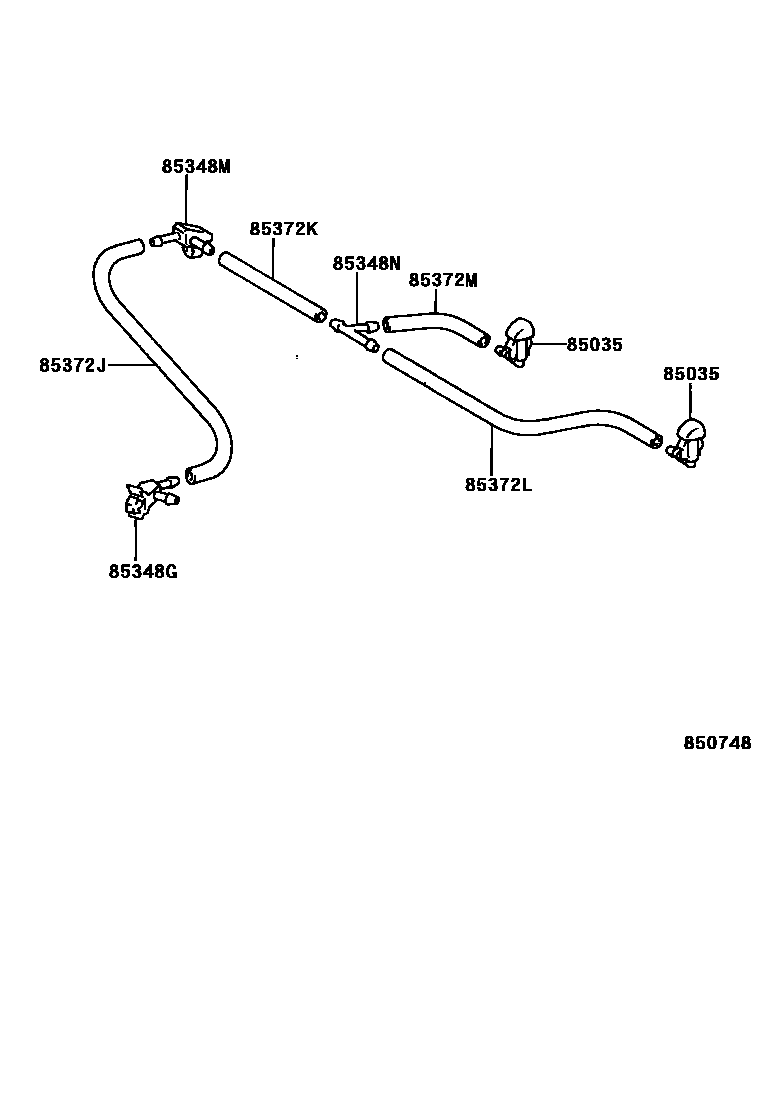

Toyota 4RUNNER — WINDSHIELD WASHER

0001 1 0002 1W/O(REAR WIPER) 0003 1W(REAR WIPER)

85035NOZZLE SUB-ASSY, WASHER

main85381-35020×2iKZN185,RZN18#,VZN18#199511

sub85381-12050

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iKZN185,RZN18#,VZN18#199511

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85377-35240iKZN185,RZN18#,VZN18#199511

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85377-32220iKZN185,RZN18#,VZN18#199511

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85348-12250iKZN185,RZN18#,VZN18#199511

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iKZN185,RZN18#,VZN18#199511

L=1450(*H,L=120)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080iKZN185,RZN18#,VZN18#199511

L=1450(*H,L=320)

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main90099-33080iKZN185,RZN18#,VZN18#199511

L=1450(*H,L=250)

85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6

main90099-33080iKZN185,RZN18#,VZN18#199511

L=1450(*H,L=720)

85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7

main90099-33080iKZN185,RZN18#,VZN18#199511

L=1450(*H,L=170)

10 parts on this diagram · 3 diagrams in section
