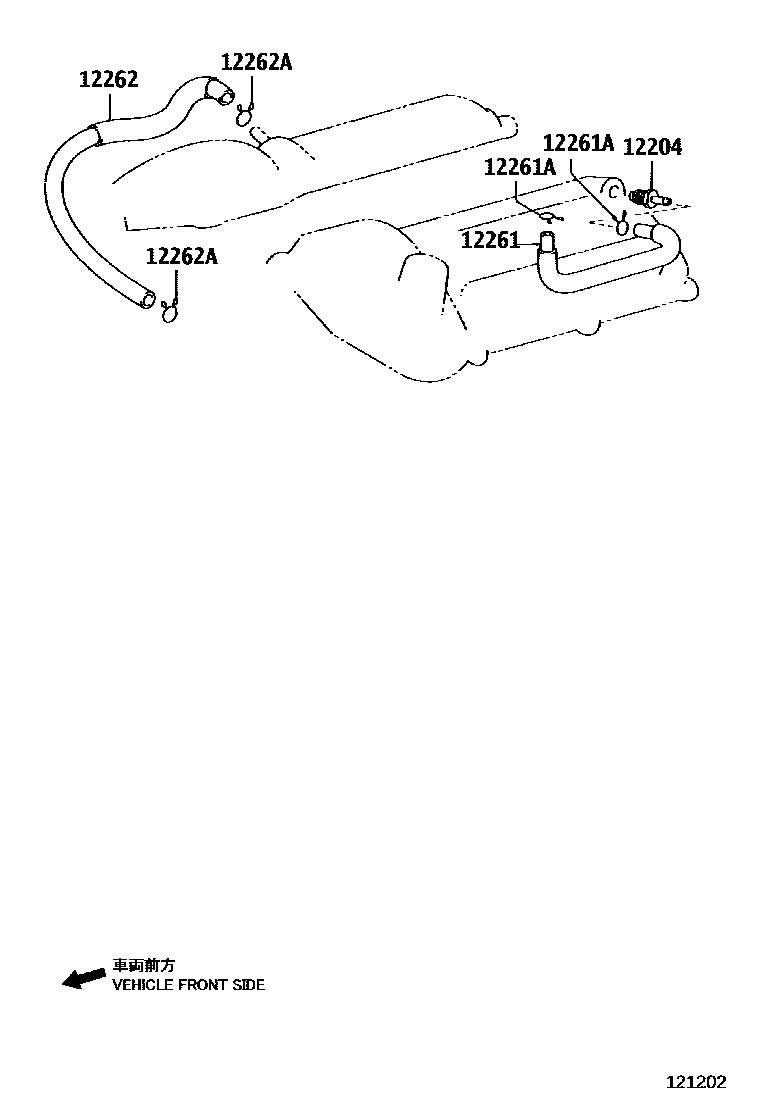

Toyota 4RUNNER — VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-31030i200211-200408

12261HOSE, VENTILATION

main12261-31030i200508

main12261-67010i200211

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14017×2i200211-200508

12262HOSE, VENTILATION, NO.2

main12262-31030i200508

main12262-67020i200211

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21152×2i200508

5 parts on this diagram · 2 diagrams in section

VENTILATION HOSE for Toyota 4RUNNER

This section contains 7 genuine Toyota parts for the VENTILATION HOSE system of the Toyota 4RUNNER. Key components include: VALVE SUB-ASSY, VENTILATION, PIPE, VENTILATION, HOSE, VENTILATION, CLIP OR CLAMP(FOR VENTILATION HOSE), HOSE, VENTILATION, NO.2.
