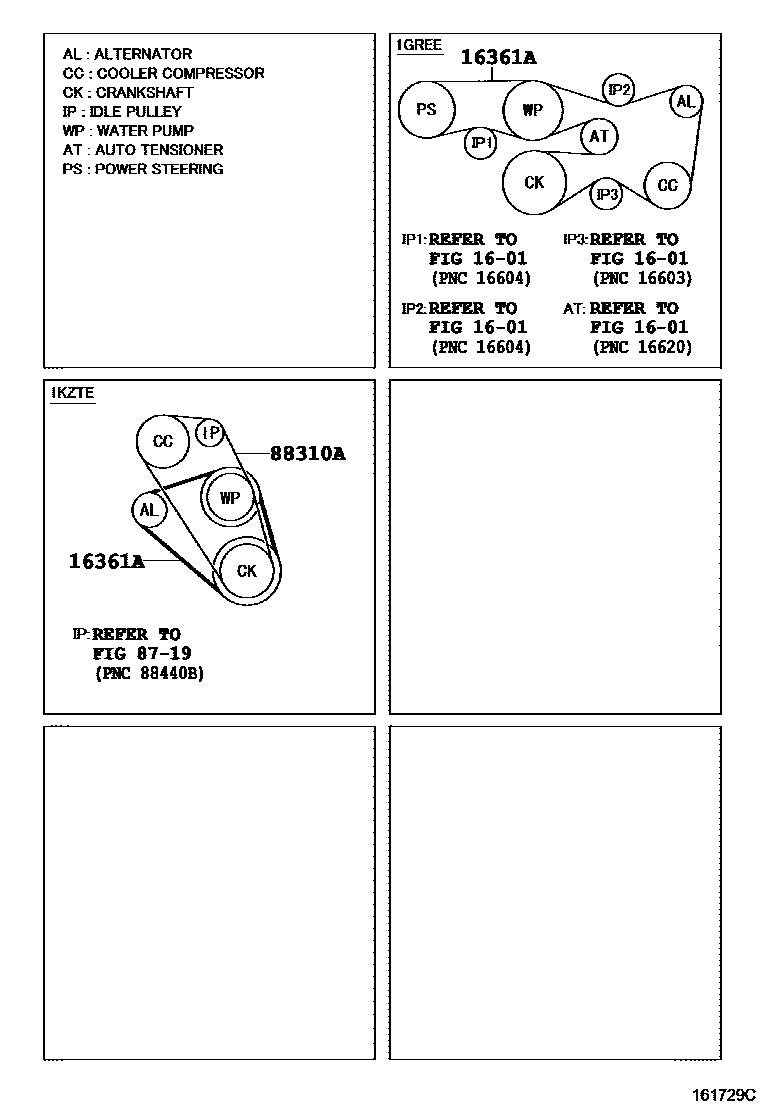

Toyota 4RUNNER — V-BELT

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02385i200211-200508

main90916-02571i200309-200508

main99367-D2120i200211-200309

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02390i200211-200508

L=1165

4 parts on this diagram · 1 diagram in section

V-BELT for Toyota 4RUNNER

This section contains 4 genuine Toyota parts for the V-BELT system of the Toyota 4RUNNER. Key components include: WATER PUMP, BELT, V(FOR FAN & ALTERNATOR), HEATING & AIR CONDITIONING - COMPRESSOR, BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1.
