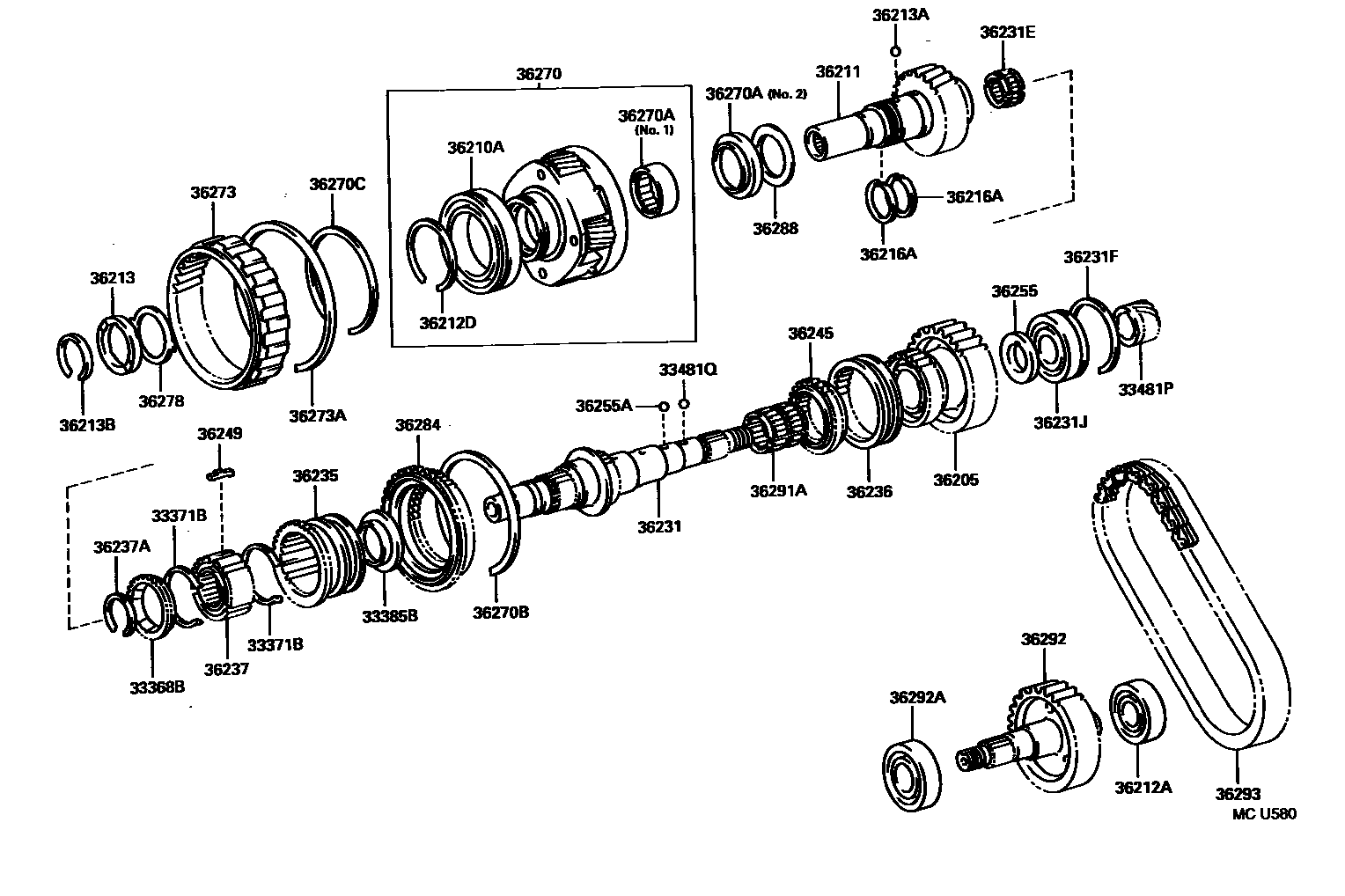

Toyota 4RUNNER — TRANSFER GEAR
33368BRING, SYNCHRONIZER (FOR TRANSFER FRONT DRIVE CLUTCH)
33371BSPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER)
33385BRETAINER, SHIFTING KEY (FOR TRANSFER FRONT DRIVE CLUTCH)
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
N=11
N=11,W(265/70R16 TIRE)
33481QKEY OR BALL, SPEEDOMETER DRIVE GEAR (FOR TRANSFER)
36205SPROCKET SUB-ASSY, TRANSFER DRIVE
W(A.D.D)
36210ABEARING (FOR TRANSFER INPUT SHAFT)
36211SHAFT, TRANSFER INPUT
36212ABEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR)
36212DRING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)
T=1.45,MARK 1
T=1.50,MARK 2
T=1.55,MARK 3
T=1.60,MARK 4
T=1.65,MARK 5
36213STOPPER, TRANSFER INPUT GEAR
36213ABALL (FOR TRANSFER INPUT GEAR STOPPER)
36213BRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER)
T=2.10-2.15
T=2.15-2.20
T=2.20-2.25
T=2.25-2.30
T=2.30-2.35
T=2.35-2.40
T=2.40-2.45
T=2.45-2.50
T=2.50-2.55
T=2.55-2.60
T=2.60-2.65
T=2.65-2.70
T=2.70-2.75
T=2.75-2.80
T=2.80-2.85
T=2.85-2.90
T=2.90-2.95
T=2.95-3.00
T=3.00-3.05
36216ARING, TRANSFER INPUT SHAFT SEAL, NO.1
36231SHAFT, TRANSFER OUTPUT, REAR
W(A.D.D)
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
T=1.65,ID=71.1
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
36236SLEEVE, FRONT DRIVE CLUTCH
W(A.D.D)
36237HUB, TRANSFER CLUTCH
36237ARING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB)
T=2.10-2.15,MARK A
T=2.15-2.20,MARK B
T=2.20-2.25,MARK C
T=2.25-2.30,MARK D
T=2.30-2.35,MARK E
T=2.35-2.40,MARK F
T=2.40-2.45,MARK G
T=2.45-2.50,MARK H
T=2.50-2.55,MARK J
T=2.00-2.05,MARK K
T=2.05-2.10,MARK L
36245PIECE, TRANSFER FRONT DRIVE GEAR
36249KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.2
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
36255ABALL (FOR TRANSFER OUTPUT SHAFT SPACER)
36270GEAR ASSY, TRANSFER LOW PLANETARY
36270ABEARING (FOR TRANSFER LOW PLANETARY GEAR)
NO.1
NO.2
36270BRING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR)
T=1.8
36270CRING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARING)
36273GEAR, TRANSFER LOW PLANETARY RING
36273ARING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR)
36278WASHER, MANUAL TRANSFER PLANETARY CARRIER
T=0.95-1.05
T=0.95-1.05
36284PIECE, TRANSFER LOW PLANETARY GEAR SPLINE
36288RACE, TRANSFER THRUST BEARING, NO.1
36291ABEARING (FOR TRANSFER DRIVE SPROCKET)
36292SPROCKET, TRANSFER DRIVEN
36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)
36293CHAIN, TRANSFER FRONT DRIVE
39 parts on this diagram · 2 diagrams in section
TRANSFER GEAR for Toyota 4RUNNER
This section contains 42 genuine Toyota parts for the TRANSFER GEAR system of the Toyota 4RUNNER. Key components include: RING, SYNCHRONIZER (FOR TRANSFER FRONT DRIVE CLUTCH), SPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER), SPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER), RETAINER, SHIFTING KEY (FOR TRANSFER FRONT DRIVE CLUTCH), GEAR, SPEEDOMETER DRIVE (FOR TRANSFER).
