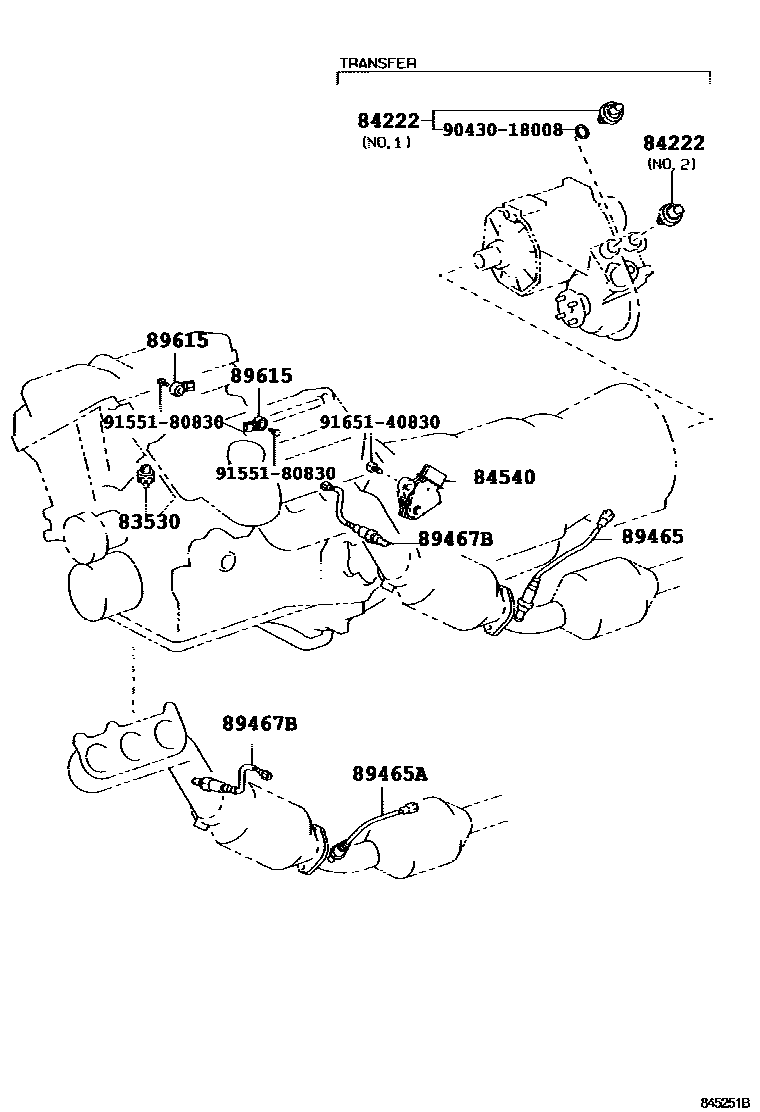

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGRN21#200211-200508

main83530-60010iKZN215200211-200508

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iGRN215200211-200408

NO.1

main84222-35121iGRN215200211-200408

NO.2

84540SWITCH ASSY, NEUTRAL START

main84540-51010iGRN21#,KZN215..4FC200211-200508

main84540-71010iGRN21#200508-200908

89465SENSOR, OXYGEN

main89465-35670iGRN21#200408-200508

main89465-60220iGRN21#200211-200408

89465ASENSOR, OXYGEN NO.2

main89465-35680iGRN21#200508

main89465-60230iGRN21#200211-200408

89467BSENSOR, AIR FUEL RATIO

main89467-35110×2iGRN21#200707

main89467-60010×2iGRN21#200211-200408

main89467-71020×2iGRN21#200408-200508

89615SENSOR, KNOCK CONTROL

main89615-20090×2iGRN21#200211-200408

9043018008

main90430-18008

9155180830

main91551-80830

9165140830

main91651-40830

10 parts on this diagram · 9 diagrams in section
