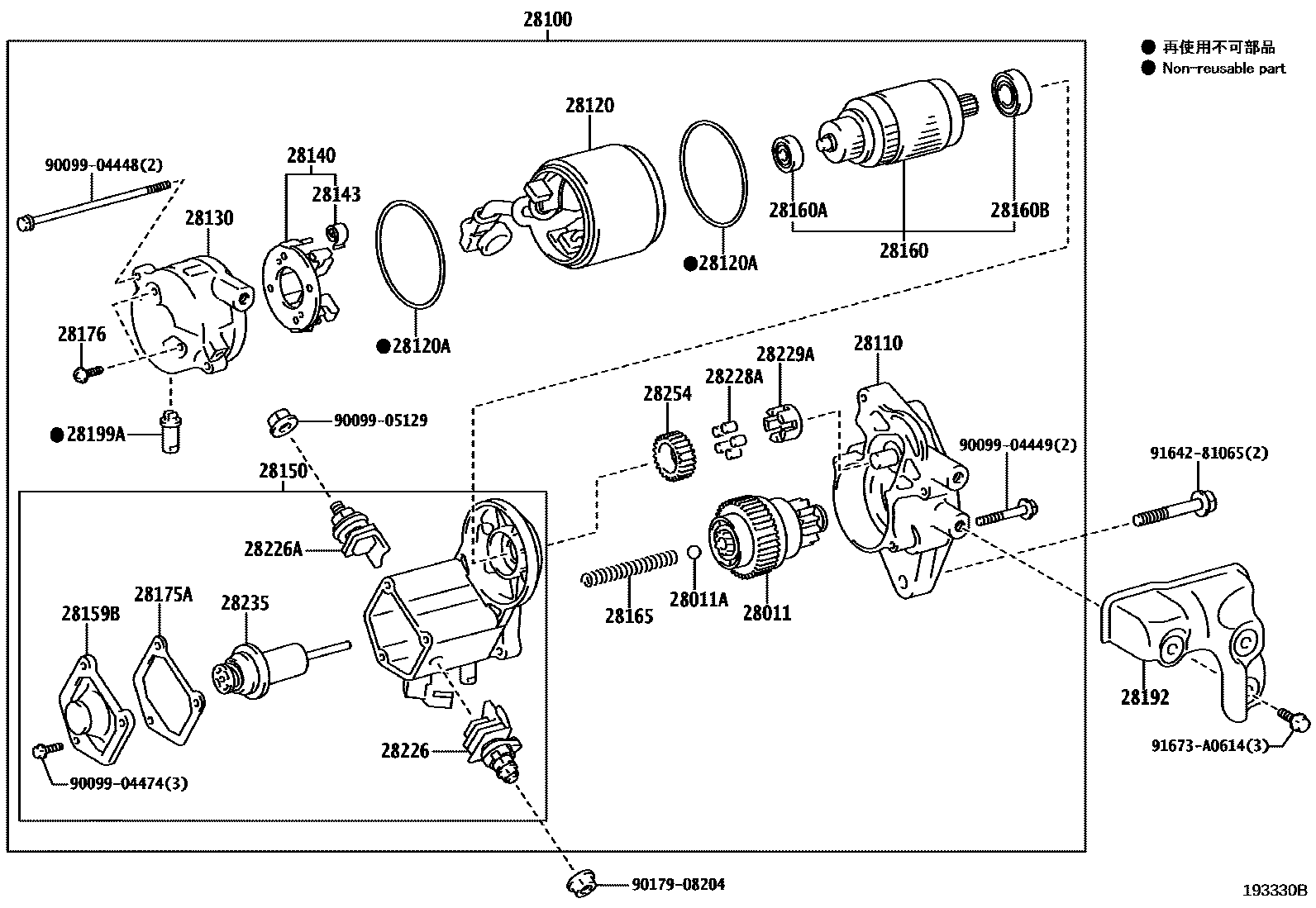

Toyota 4RUNNER — STARTER
28011CLUTCH SUB-ASSY, STARTER
28011ABALL, STARTER CLUTCH
28100STARTER ASSY
12V 1.4KW
28110HOUSING ASSY, STARTER DRIVE
28120YOKE ASSY, STARTER
28120ARING, O(FOR STARTER YOKE)
28130FRAME ASSY, STARTER COMMUTATOR END
28140HOLDER ASSY, STARTER BRUSH
28143SPRING, STARTER BRUSH
28150SWITCH ASSY, MAGNET STARTER
28159BCOVER, MAGNET SWITCH
28160ARMATURE ASSY, STARTER
28160ABEARING, STARTER ARMATURE
28160BBEARING, STARTER ARMATURE, NO.2
28165SPRING, STARTER MAGNET SWITCH RETURN
28175AGASKET, MAGNET SWITCH COVER
28176SCREW, STARTER
28192COVER, STARTER
28199APROTECTOR, DUST STARTER
28226STARTER KIT, BATTERY TERMINAL
28226ASTARTER KIT, MOTOR TERMINAL
28228AROLLER, STARTER CLUTCH
28229ARETAINER, STARTER IDLE GEAR
28235PLUNGER, MAGNET SWITCH
28254PINION, STARTER IDLE GEAR
9009904448
main90099-04448
9009904449
main90099-04449
9009904474
main90099-04474
9009905129
main90099-05129
9017908204
main90179-08204
9164281065
main91642-81065
91673A0614
main91673-A0614
32 parts on this diagram · 2 diagrams in section
