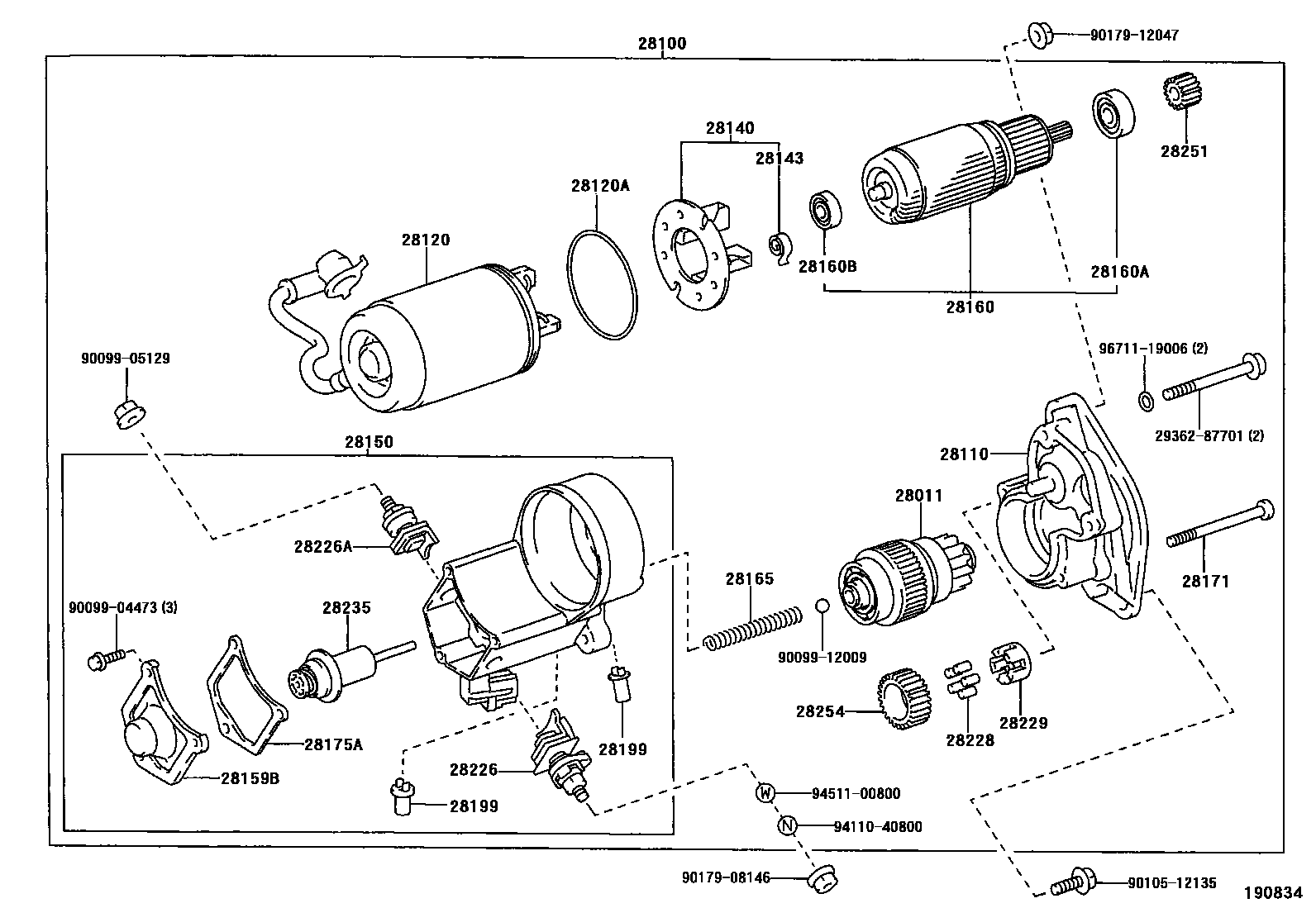

Toyota 4RUNNER — STARTER

0001 112V 2.2KW 0002 112V 1.4KW 0003 112V 1.4KW

28011CLUTCH SUB-ASSY, STARTER

main28011-67030i1KZ#..KZN185199511

main28011-76070i3RZFE,5VZFE..RZN18#,VZN18#199511

28100STARTER ASSY

main28100-62050i5VZFE..VZN18#199511

12V 1.4KW

main28100-67050i1KZ#..KZN185199511

12V 2.2KW

sub28100-67051

main28100-75090i3RZFE..RZN18#199511

12V 1.4KW

sub28100-75091

28110HOUSING ASSY, STARTER DRIVE

main28110-62050i5VZFE..VZN18#199511

main28110-67050i1KZ#..KZN185199511

main28110-75090i3RZFE..RZN18#199511

28120YOKE ASSY, STARTER

main28120-64040i1KZ#..KZN185199511

main28120-66040i3RZFE,5VZFE..RZN18#,VZN18#199511

28120ARING, O(FOR STARTER YOKE)

main90099-14064×2i3RZFE,5VZFE..RZN18#,VZN18#199511

main90099-64040i1KZ#..KZN185199511

28140HOLDER ASSY, STARTER BRUSH

main28140-35060i5VZFE..VZN18#199511

main28140-64040i1KZ#..KZN185199511

main28140-76070i3RZFE..RZN18#199511

28143SPRING, STARTER BRUSH

main90099-17112×4i3RZFE,5VZFE..RZN18#,VZN18#199511

main90099-17115×4i1KZ#..KZN185199511

28150SWITCH ASSY, MAGNET STARTER

main28150-62050i5VZFE..VZN18#199511

main28150-67050i1KZ#..KZN185199511

main28150-75130i3RZFE..RZN18#199511

28159BCOVER, MAGNET SWITCH

main28159-10040i1KZ#..KZN185199511

main28159-55050i3RZFE,5VZFE..RZN18#,VZN18#199511

28160ARMATURE ASSY, STARTER

main28160-64041i1KZ#..KZN185199511

main28160-74070i3RZFE,5VZFE..RZN18#,VZN18#199511

28160ABEARING, STARTER ARMATURE

main90099-10143i1KZ#..KZN185199511

main90099-10197i3RZFE,5VZFE..RZN18#,VZN18#199511

28160BBEARING, STARTER ARMATURE, NO.2

main28253-54070i1KZ#..KZN185199511

main90099-10196i3RZFE,5VZFE..RZN18#,VZN18#199511

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i1KZ#..KZN185199511

main28165-76070i3RZFE,5VZFE..RZN18#,VZN18#199511

28171BOLT, STARTER

main28171-87702×2i1KZ#..KZN185199511

28175AGASKET, MAGNET SWITCH COVER

main28175-10040i1KZ#..KZN185199511

main28175-55050i3RZFE,5VZFE..RZN18#,VZN18#199511

28199COVER, STARTER

main28199-46080×2i1KZ#..KZN185199511

28226STARTER KIT, BATTERY TERMINAL

main28226-22050i3RZFE..RZN18#200008

main28226-64200i3RZFE,5VZFE..RZN185,VZN185199511-200008

main28226-76100i1KZ#..KZN185199511

28226ASTARTER KIT, MOTOR TERMINAL

main28226-72010i1KZ#..KZN185199511

main28226-74070i3RZFE,5VZFE..RZN18#,VZN18#199511

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i1KZ#,3RZFE,5VZFE..KZN185,RZN18#,VZN18#199511

28229RETAINER, STARTER IDLE GEAR

main28229-26040i1KZ#..KZN185199511

main28229-74070i3RZFE,5VZFE..RZN18#,VZN18#199511

28235PLUNGER, MAGNET SWITCH

main28235-35080i1KZ#..KZN185199511

main28235-55050i3RZFE,5VZFE..RZN18#,VZN18#199511

28251PINION, STARTER DRIVE

main28251-54070i1KZ#..KZN185199511

28254PINION, STARTER IDLE GEAR

main28254-64040i1KZ#..KZN185199511

main28254-74070i3RZFE,5VZFE..RZN18#,VZN18#199511

2936287701

main29362-87701

9009904473

main90099-04473

9009905129

main90099-05129

9009912009

main90099-12009

9010512135

main90105-12135

9017908146

main90179-08146

9017912047

main90179-12047

9411040800

main94110-40800

9451100800

main94511-00800

9671119006

main96711-19006

33 parts on this diagram · 3 diagrams in section
