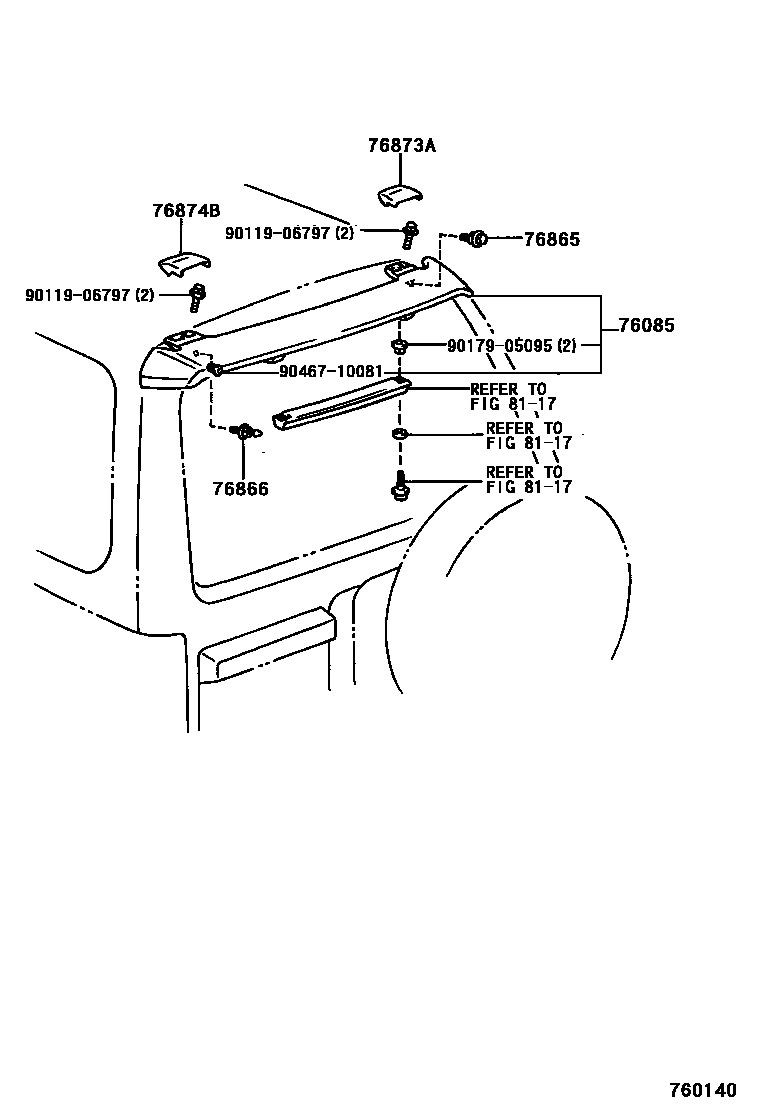

Toyota 4RUNNER — SPOILER & SIDE MUDGUARD

76085SPOILER SUB-ASSY, REAR

main76085-35901iKZN185,RZN18#,VZN18#200008

PAINT REQ.

76865RETAINER, REAR SPOILER, NO.1

main76865-35020iKZN185,RZN18#,VZN18#200008

76866RETAINER, REAR SPOILER, NO.2

main76866-35010iKZN185,RZN18#,VZN18#200008

76873APROTECTOR, REAR SPOILER, RH

main76873-35020-A0iKZN185,RZN18#,VZN18#200008

WHITE,K72 ,056

main76873-35020-B0iKZN185,RZN18#,VZN18#200008

SILVER ME.,KF8 ,K73 ,1C0

main76873-35020-B1iKZN185,RZN18#,VZN18#200008

GRAY ME.,KF9 ,KG0 ,1D2

main76873-35020-C0iKZN185,RZN18#,VZN18#200008

BLACK,KA3 ,KG1 ,202

main76873-35020-D0iKZN185,RZN18#,VZN18#200008-200107

RED MM,KG2 ,3K4

main76873-35020-F1iKZN185,RZN18#,VZN18#200008

CHAMPAGNE M.M.,KG4 ,KG5 ,587

main76873-35020-G0iKZN185,RZN18#,VZN18#200107

DK. GREEN MC.,KG6 ,6Q7

main76873-35020-H0iKZN185,RZN18#,VZN18#200008

AQUA ME.,KG7 ,768

main76873-35020-J0iKZN185,RZN18#,VZN18#200008-200107

DK.BLUE M.M.,KG9 ,8L7

76874BPROTECTOR, REAR SPOILER, LH

main76874-35020-A0iKZN185,RZN18#,VZN18#200008

WHITE,K72 ,056

main76874-35020-B0iKZN185,RZN18#,VZN18#200008

SILVER ME.,KF8 ,K73 ,1C0

main76874-35020-B1iKZN185,RZN18#,VZN18#200008

GRAY ME.,KF9 ,KG0 ,1D2

main76874-35020-C0iKZN185,RZN18#,VZN18#200008

BLACK,KA3 ,KG1 ,202

main76874-35020-D0iKZN185,RZN18#,VZN18#200107

RED MM,KG2 ,KH6 ,3K4

main76874-35020-F1iKZN185,RZN18#,VZN18#200008

CHAMPAGNE M.M.,KG4 ,KG5 ,587

main76874-35020-G0iKZN185,RZN18#,VZN18#200008-200107

DK. GREEN MC.,KG6 ,K79 ,6Q7

main76874-35020-H0iKZN185,RZN18#,VZN18#200008

AQUA ME.,KG7 ,768

main76874-35020-J0iKZN185,RZN18#,VZN18#200107

DK.BLUE M.M.,KG9 ,KH7 ,8L7

8117

8150

9011906797

main90119-06797

9017905095

main90179-05095

9046710081

main90467-10081

10 parts on this diagram · 1 diagram in section
