Toyota 4RUNNER — SPEAKER

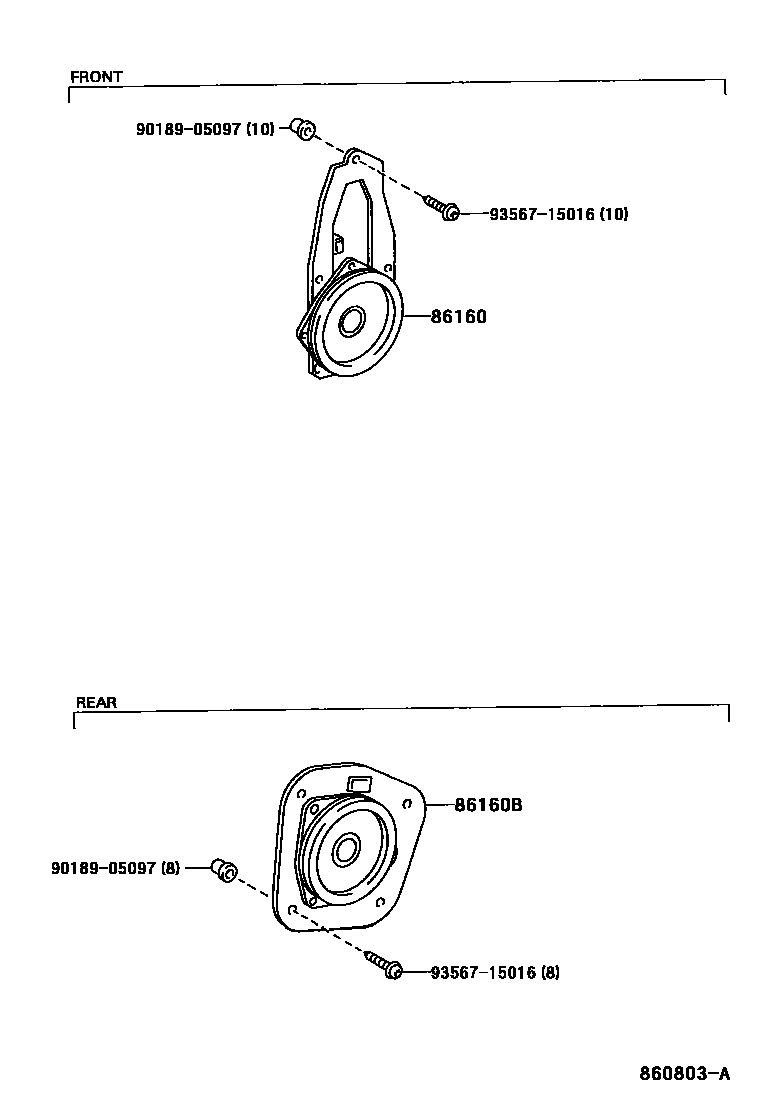

Parts diagram

86160SPEAKER ASSY, FRONT NO.1

main86160-35090i199807

RH

main86160-35100i199807

LH

main86160-35120i199511-199807

RH

main86160-35130i199511-199807

LH

86160BSPEAKER ASSY, REAR

main86160-35110×2i199511

9018905097

main90189-05097

9356715016

main93567-15016

4 parts on this diagram · 1 diagram in section
