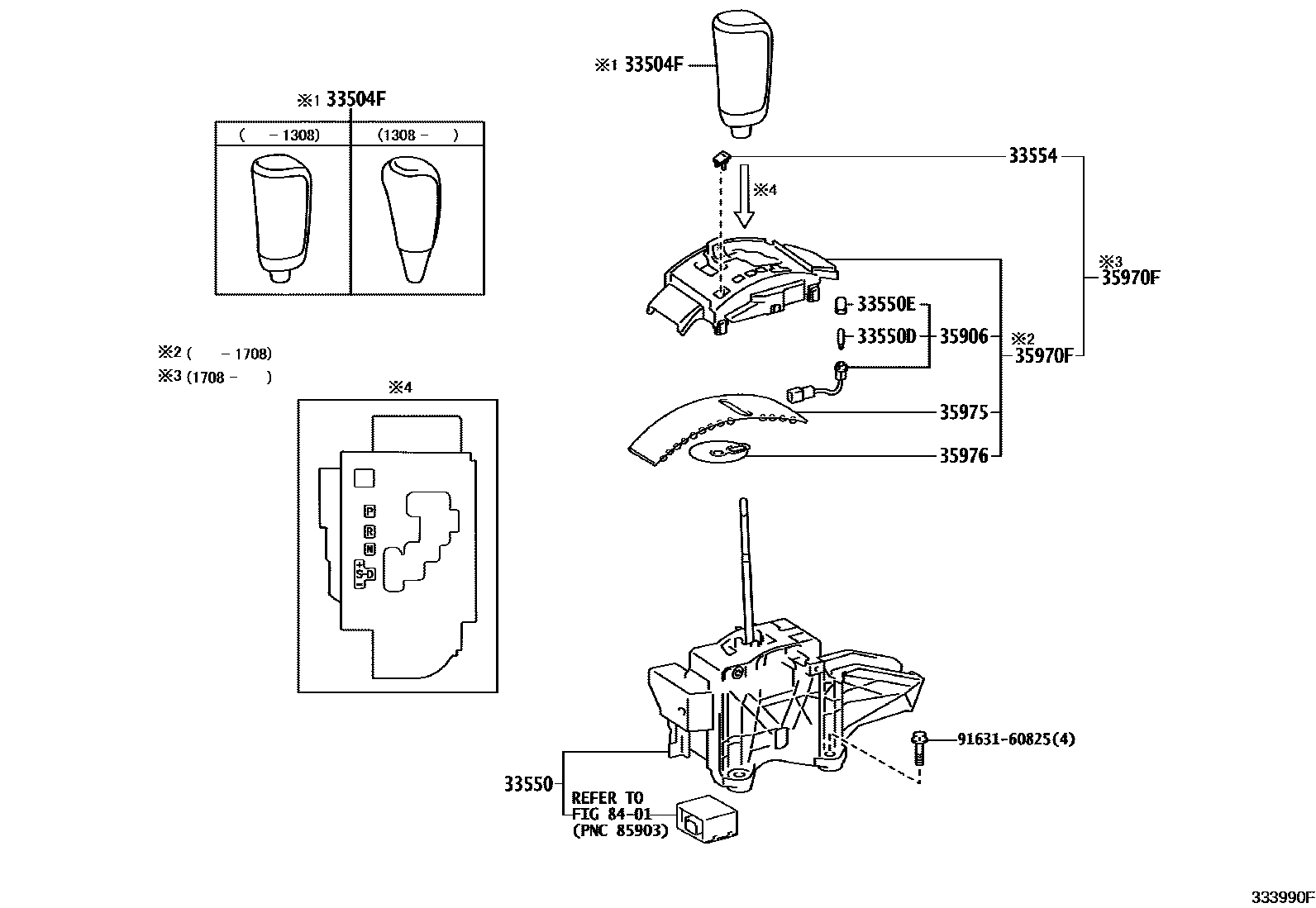

Toyota 4RUNNER — SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-35130-C1supersedes 33504-35110-C0iGRN28#200908-201308

SR5 PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,4#

main33504-35170-C0supersedes 33504-35190-C0iGRN28#201908

LIMITED PACKAGE,BLACK,TRIM2#,4#

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-35820iGRN28#200908-201308

33550DBULB, POSITION INDICATOR LAMP

main35955-20010iGRN28#201308-201908

12V 2.0W

main90981-30001iGRN28#200908-201308

14V 0.7W

33550ECAP, POSITION INDICATOR LAMP

main35956-48010iGRN28#201308-201908

main90339-04074iGRN28#200908-201308

33554CAP, SHIFT LEVER

main33554-35100iGRN28#200908-201308

main33554-35130iGRN28#201308-201908

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-35140iGRN28#200908-201308

main35906-35150iGRN28#201308-201908

35970FHOUSING ASSY, POSITION INDICATOR

main35970-35020iGRN28#200908-201308

main35970-35040iGRN28#201308-201708

main35970-35041iGRN28#201708-201908

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-35160iGRN28#200908-201308

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-60040iGRN28#200908-201308

8401

9163160825

main91631-60825

11 parts on this diagram · 2 diagrams in section
