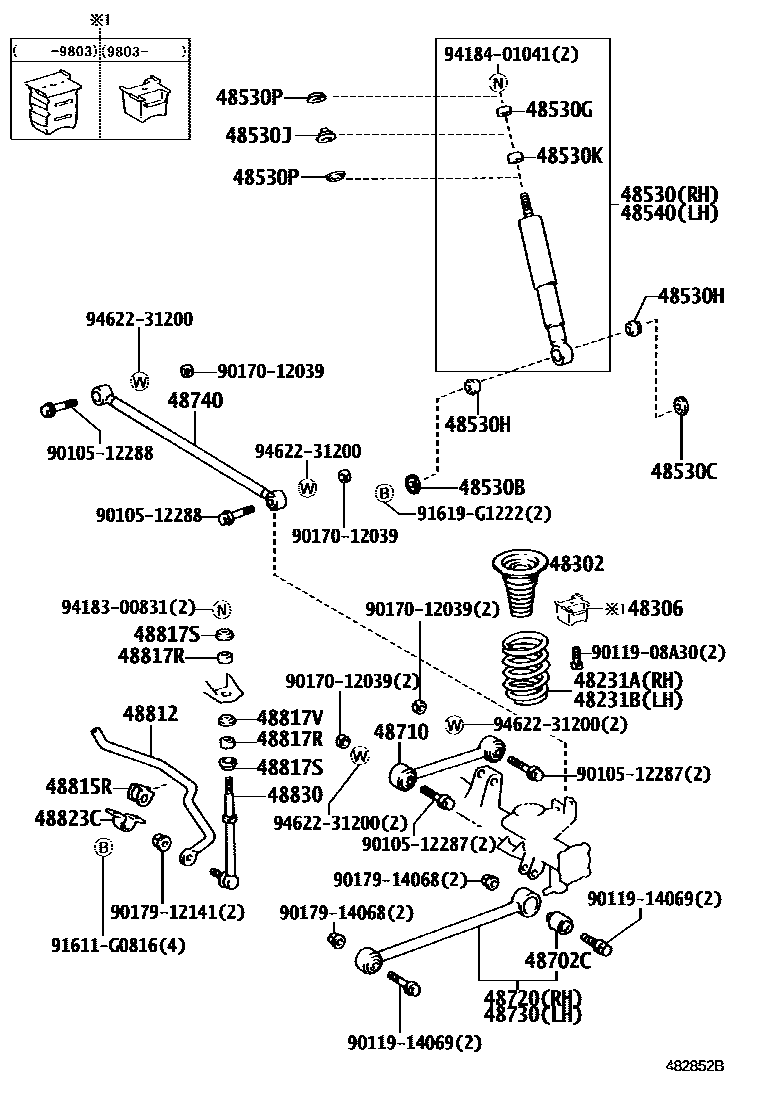

Toyota 4RUNNER — REAR SPRING & SHOCK ABSORBER
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48302SPRING SUB-ASSY, HOLLOW
48306BUMPER SUB-ASSY, REAR SPRING
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48531-3D221
MARK 48531-3D231
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530HBUSH, REAR SHOCK ABSORBER
48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48531-3D221
MARK 48531-3D231
48702CBUSH SUB-ASSY, LOWER CONTROL ARM
48710ARM ASSY, UPPER CONTROL
48720ARM ASSY, LOWER CONTROL, RH
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
W(ABS)
48812BAR, STABILIZER, REAR
48815RBUSH, STABILIZER(FOR REAR)
48817RCUSHION, STABILIZER(FOR REAR)
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
48817VRETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)
48823CCOVER, REAR STABILIZER BRACKET
48830LINK ASSY, REAR STABILIZER
9010512287
main90105-12287
9010512288
main90105-12288
9011908A30
main90119-08A30
9011914069
main90119-14069
9017012039
main90170-12039
9017912141
main90179-12141
9017914068
main90179-14068
91611G0816
main91611-G0816
91619G1222
main91619-G1222
9418300831
main94183-00831
9418401041
main94184-01041
9462231200
main94622-31200
37 parts on this diagram · 1 diagram in section
REAR SPRING & SHOCK ABSORBER for Toyota 4RUNNER
This section contains 37 genuine Toyota parts for the REAR SPRING & SHOCK ABSORBER system of the Toyota 4RUNNER. Key components include: SPRING, COIL, REAR RH, SPRING, COIL, REAR LH, SPRING SUB-ASSY, HOLLOW, BUMPER SUB-ASSY, REAR SPRING, ABSORBER ASSY, SHOCK, REAR RH.
