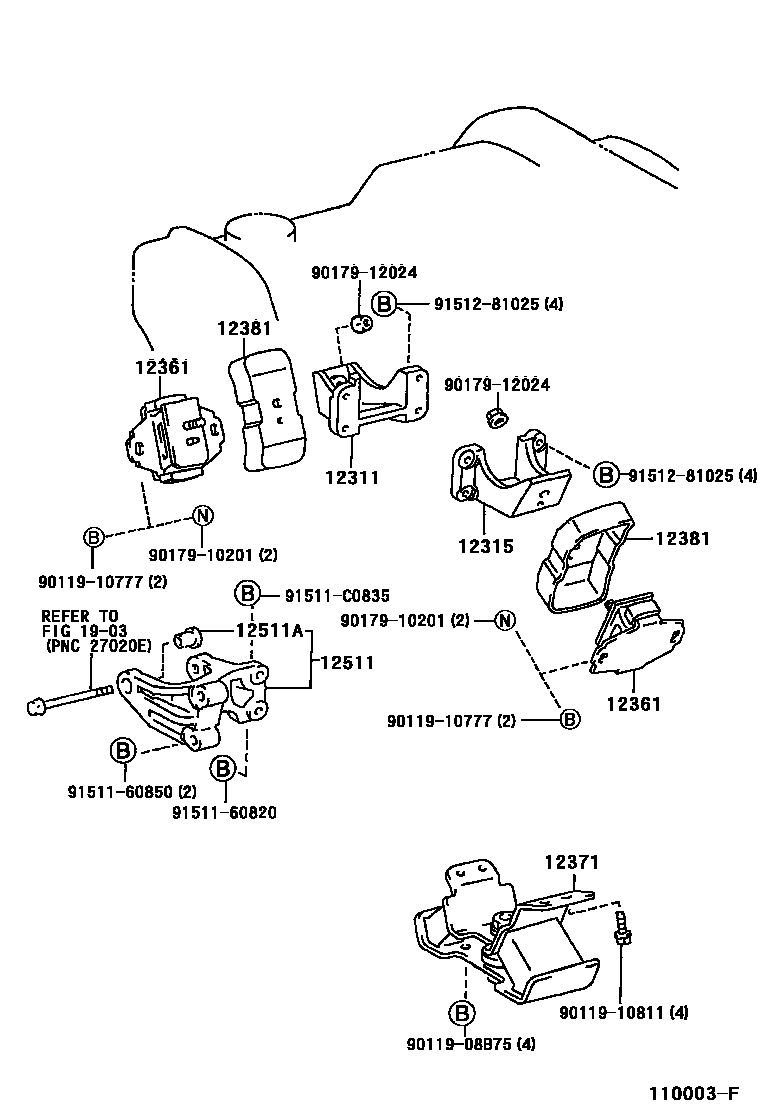

Toyota 4RUNNER — MOUNTING

0001 1 0002 1 0003 1 0004 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-62030i5VZFE..VZN185199511-199807

main12311-62060i5VZFE..VZN18#199807-200206

main12311-62070i5VZFE..VZN18#200206

main12311-67050i1KZ#..KZN185199511

main12311-75050i3RZFE..RZN18#199511

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-62040i5VZFE..VZN185199511-199807

main12315-62070i5VZFE..VZN18#199807-200206

main12315-62080i5VZFE..VZN18#200206

main12315-67030i1KZ#..KZN185199511

main12315-75050i3RZFE..RZN18#199511

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-35090×2i3RZFE..RZN18#199511

sub12361-35091

main12361-62110×2i5VZFE..VZN185199511-199807

main12361-62140×2i5VZFE..VZN18#199807

sub12361-62160

main12361-67030×2i1KZ#..KZN185199511

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-62120i5VZFE..VZN185199511

main12371-62180i5VZFE..VZN180200008

main12371-67060i1KZ#..KZN185199511

main12371-75030i3RZFE..RZN185199511

main12371-75100i3RZFE..RZN180200008

12381STABILIZER, ENGINE MOUNTING

main12381-62020i5VZFE..VZN18#199807

RH

main12381-65030×2i5VZFE..VZN185199511-199807

main12381-67020×2i1KZ#..KZN185199511

main12381-75020i3RZFE..RZN18#199511

main12382-62010i5VZFE..VZN18#199807

LH

12511BRACKET, ALTERNATOR, NO.1

main12511-62010i5VZFE..VZN18#199511

main12511-67020i1KZ#..KZN185199511

main12511-75030i3RZFE..RZN185199511-199704

main12511-75040i3RZFE..RZN185199704-199705

main12511-75041i3RZFE..RZN18#199705

12511ABUSH, ALTERNATOR BRACKET

main90389-10039i1KZ#..KZN185199511

1903

9011908B75

main90119-08B75

9011910777

main90119-10777

9011910811

main90119-10811

9017910201

main90179-10201

9017912024

main90179-12024

9151160820

main91511-60820

9151160850

main91511-60850

91511C0835

main91511-C0835

9151281025

main91512-81025

17 parts on this diagram · 4 diagrams in section
