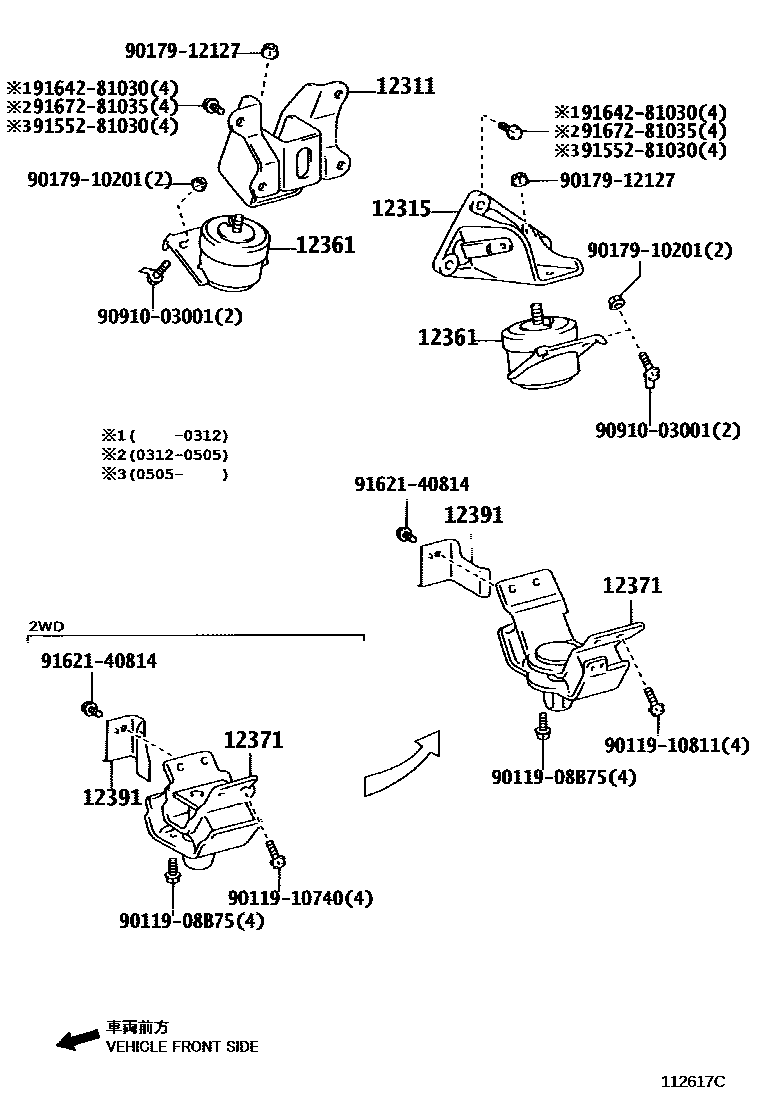

Toyota 4RUNNER — MOUNTING
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12361INSULATOR, ENGINE MOUNTING, FRONT
12371INSULATOR, ENGINE MOUNTING, REAR NO.1
12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
9011908B75
main90119-08B75
9011910740
main90119-10740
9011910811
main90119-10811
9017910201
main90179-10201
9017912127
main90179-12127
9091003001
main90910-03001
9155281030
main91552-81030
9162140814
main91621-40814
9164281030
main91642-81030
9167281035
main91672-81035
15 parts on this diagram · 2 diagrams in section
MOUNTING for Toyota 4RUNNER
This section contains 23 genuine Toyota parts for the MOUNTING system of the Toyota 4RUNNER. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1, STABILIZER, ENGINE MOUNTING.
