Toyota 4RUNNER — MIRROR

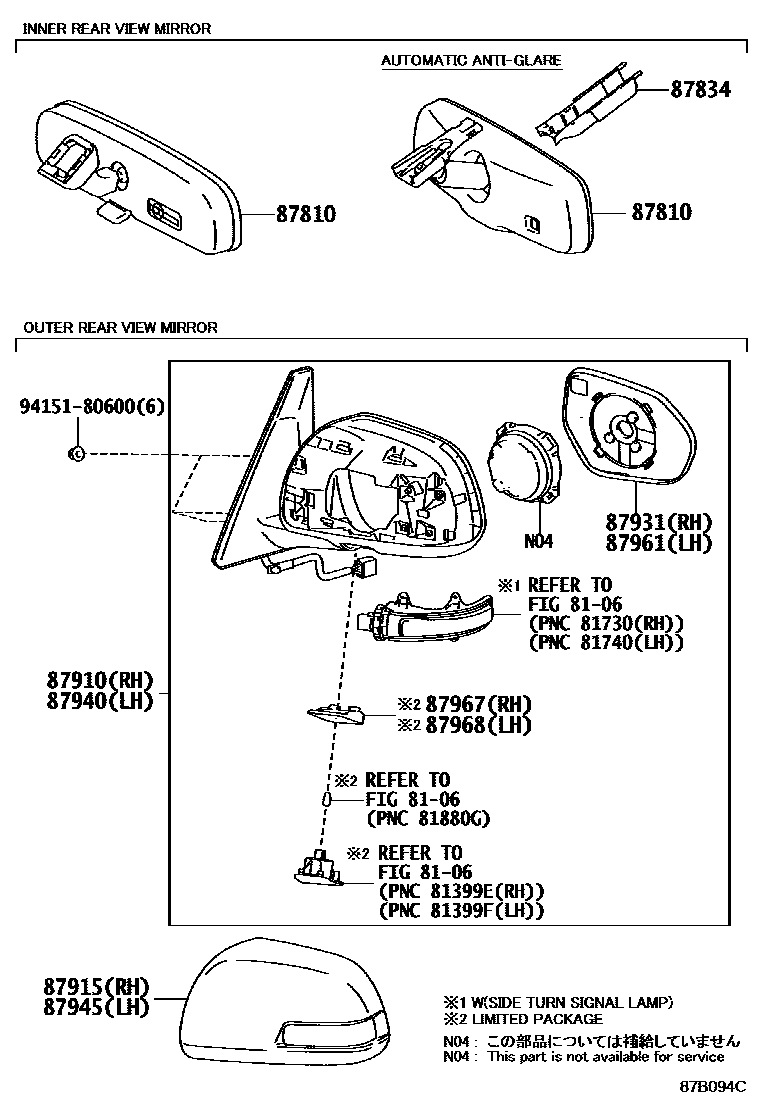

Parts diagram
8106
87810MIRROR ASSY, INNER REAR VIEW
main87810-04030i200908-201110
LIMITED PACKAGE&BACK MONITOR-WITH(IN INNER MIRROR)
main87810-0W062supersedes 87810-60191i201008-201308
LIMITED PACKAGE
main87810-0W260supersedes 87810-60191i200908-201007
LIMITED PACKAGE
main87810-0WB40i201110-201308
LIMITED PACKAGE&BACK MONITOR-WITH(IN INNER MIRROR)
main87810-0WG90supersedes 87810-60191i201908-202007
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
main87810-0WG91i202008
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87818-04010i200908-200911
LIMITED PACKAGE&BACK MONITOR-WITH(IN INNER MIRROR)
main87818-30030i200908-201007
LIMITED PACKAGE
main87818-35020i201008-201308
LIMITED PACKAGE
main87818-42020i200912-201308
LIMITED PACKAGE&BACK MONITOR-WITH(IN INNER MIRROR)
main87818-53020i201908
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-35A60supersedes 87910-35B91i200908-201103
NO PAINT REQ.,LIMITED PACKAGE
main87910-35A61supersedes 87910-35B91i201104-201308
NO PAINT REQ.,LIMITED PACKAGE
main87910-35C00supersedes 87910-35B91i201308-201802
NO PAINT REQ.,LIMITED PACKAGE
main87910-35C01supersedes 87910-35B91i201908-202108
NO PAINT REQ., LIMITED PACKAGE
main87910-35C30i202108-202208
NO PAINT REQ., LIMITED PACKAGE
main87910-35C31i202208
NO PAINT REQ., LIMITED PACKAGE&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
87915COVER, OUTER MIRROR, RH
main87915-42160-A0i201908
SUPER WHITE 2,040
main87915-42160-A1i201908-202310
WHITE PEARL CS.,070
main87915-42160-A2i202310
PLATINUM WHITE PEARL MC.,089
main87915-42160-B1i201908-202310
GRAY ME.,1G3
main87915-42160-B4i202310
DK.GRAY,1L7
main87915-42160-C0i201308-201408
BLACK,202
main87915-42160-C4i201908
ATTITUDE BLACK MC.,218
main87915-42160-D0i201908
RED M.M.,3R3
main87915-42160-G1i201908-202208
DK.GREEN,6V7
main87915-42160-J1i201908
DK.BLUE MC.,8S6
main87915-28060-A1supersedes 87915-48020-A0i200908-201308
LIMITED PACKAGE,WHITE PEARL CS.,070
sub87915-42100
main87915-28060-B0supersedes 87915-48020-B0i200908-201308
LIMITED PACKAGE,SILVER ME.,1F7
sub87915-42100
main87915-28060-B2supersedes 87915-48020-B1i200908-201308
LIMITED PACKAGE,GRAY ME.,1G3
sub87915-42100
main87915-28060-C0supersedes 87915-48020-C0i200908-201308
LIMITED PACKAGE,BLACK,202
sub87915-42100
main87915-28060-D0supersedes 87915-48020-D0i200908-201308
LIMITED PACKAGE,DK. RED M.M.,3Q3
sub87915-42100
main87915-28060-J3i200908-201308
LIMITED PACKAGE,GRAYISH BLUE M.M.,8V5
sub87915-42100
87931OUTER MIRROR, RH
main87931-35A50i200908-201308
main87931-35C00i201308-201908
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-35A30supersedes 87940-35B61i200908-201103
NO PAINT REQ.,LIMITED PACKAGE
main87940-35A31supersedes 87940-35B61i201104-201308
NO PAINT REQ.,LIMITED PACKAGE
main87940-35B70supersedes 87940-35B61i201308-201802
NO PAINT REQ.,LIMITED PACKAGE
main87940-35B71supersedes 87940-35B61i201803-201908
NO PAINT REQ.,LIMITED PACKAGE
main87940-35C00i202108-202208
NO PAINT REQ., LIMITED PACKAGE
main87940-35C01i202208
NO PAINT REQ., LIMITED PACKAGE&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
87945COVER, OUTER MIRROR, LH
main87945-42160-A0i201308-201908
SUPER WHITE 2,040
main87945-42160-A1i201908-202310
WHITE PEARL CS.,070
main87945-42160-A2i202310
PLATINUM WHITE PEARL MC.,089
main87945-42160-B1i201908-202310
GRAY ME.,1G3
main87945-42160-B4i202310
DK.GRAY,1L7
main87945-42160-C0i201308-201408
BLACK,202
main87945-42160-C4i201908
ATTITUDE BLACK MC.,218
main87945-42160-D0i201908
RED M.M.,3R3
main87945-42160-G1i201908-202208
DK.GREEN,6V7
main87945-42160-J1i201308-201908
DK.BLUE MC.,8S6
main87945-28060-A1supersedes 87945-48020-A0i200908-201308
LIMITED PACKAGE,WHITE PEARL CS.,070
sub87945-42100
main87945-28060-B0supersedes 87945-48020-B0i200908-201308
LIMITED PACKAGE,SILVER ME.,1F7
sub87945-42100
main87945-28060-B2supersedes 87945-48020-B1i200908-201308
LIMITED PACKAGE,GRAY ME.,1G3
sub87945-42100
main87945-28060-C0supersedes 87945-48020-C0i200908-201308
LIMITED PACKAGE,BLACK,202
sub87945-42100
main87945-28060-D0supersedes 87945-48020-D0i200908-201308
LIMITED PACKAGE,DK. RED M.M.,3Q3
sub87945-42100
main87945-28060-J3i200908-201308
LIMITED PACKAGE,GRAYISH BLUE M.M.,8V5
sub87945-42100
87961MIRROR OUTER, LH
main87961-35A20i200908-201308
main87961-35B60i201308-201908
87967HOLDER, MIRROR, OUTER RH
main87967-48010i200908-201308
LIMITED PACKAGE
87968HOLDER, MIRROR, OUTER LH
main87968-48010i200908-201308
LIMITED PACKAGE
9415180600
main94151-80600

12 parts on this diagram · 2 diagrams in section
