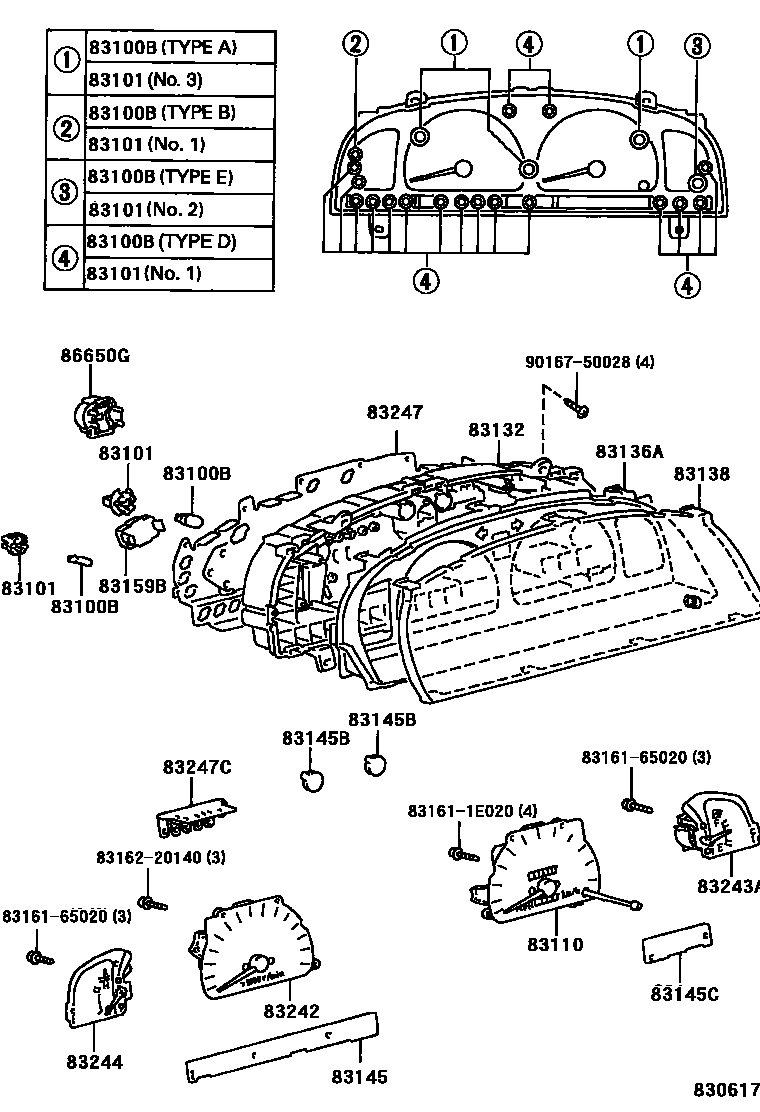

Toyota 4RUNNER — METER

0001 1COMBINATION METER 0002 1COMBINATION METER 0003 1CLOCK & SENSOR SPEEDOMETER 0004 1TACHO SENSOR(DETECTOR REVOLUT

83100BBULB, COMBINATION METER, NO.1

main83109-24030×3iKZN185,RZN185,VZN185199511-199708

12V3.4W W(GREEN CAP),TYPE A

main83119-36080iRZN185,VZN185199511-199708

12V 2.0W,TYPE B

main83120-60010iKZN185,RZN185,VZN185199708-200008

14V 2.0W,TYPE B

main83120-60020×15iRZN185199807-200008

12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION

main90010-06006×3iKZN185,RZN185,VZN185199708-199807

12V3.4W,W(GREEN CAP),TYPE A

main90010-06007iKZN185,RZN185,VZN185199708-199807

12V 3.4W,W(SOCKET),TYPE E

main90010-06034iKZN185,RZN18#,VZN18#200008

14V3.0W,W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION

main90981-11018×18iVZN185199511-199708

12V 1.2W W/O SOCKET,TYPE D

main99132-12034iKZN185,RZN185,VZN185199511-199708

12V 3.4W,TYPE E

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040×19iVZN185199511-199708

NO.1

main83101-20040iKZN185,RZN185,VZN185199511-199708

NO.2

main83101-20070×3iKZN185,RZN185,VZN185199511-199708

NO.3

83110SPEEDOMETER ASSY

main83220-35030iKZN185199511-199708

main83220-35050iRZN185,VZN185199511-199807

main83220-35380iKZN185199708-199807

main83220-35440iRZN18#,VZN18#199807

main83220-35450iKZN185199807

83132CASE, COMBINATION METER

main83841-35020iKZN185,RZN185,VZN185199511-199708

main83841-35192iKZN185,RZN185,VZN185199708-199807

main83841-3D250iKZN185,RZN18#,VZN18#199807

83136ACOVER, COMBINATION METER

main83851-35020iKZN185,RZN185,VZN185199511-199807

main83851-3D200iKZN185,RZN18#,VZN18#199807

83138GLASS, SPEEDOMETER

main83852-35020iKZN185,RZN185,VZN185199511-199807

main83852-3D200iKZN185,RZN18#,VZN18#199807

83145LENS, METER, NO.1

main83831-35120iKZN185199511-199708

main83831-35121iKZN185199708-199807

main83831-35220iRZN185,VZN185199511-199708

main83831-35252iRZN185,VZN185199708-199807

main83831-3D300iRZN18#,VZN18#199807

main83831-3D360iKZN185199807-200008

main83831-3D560iKZN185200008

83145BLENS, METER, NO.3

main83833-26010×2iKZN185,RZN18#,VZN18#199511

83145CLENS, METER, NO.4

main83831-35140iRZN185,VZN185199511-199807

main83832-35020iKZN185199511-199807

main83832-3D250iVZN18#199807

main83832-3D360iKZN185,RZN18#199807

83159BRELAY ASSY, METER

main83159-22170iRZN185,VZN185199511-199807

83242TACHOMETER ASSY, ENGINE

main83881-35020iRZN185199511-199807

main83881-35040iVZN185199511-199708

main83881-35120iKZN185199511-199708

main83881-35121iKZN185199708-199807

main83881-35262iVZN185199708-199807

main83881-3D200iRZN18#,VZN18#199807

main83881-3D220iKZN185199807

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-35120iKZN185199511-199708

main83882-35192iKZN185,RZN185,VZN185199708-199807

main83882-35220iRZN185,VZN185199511-199708

main83882-3D250iRZN185,VZN18#199807

main83882-3D270iRZN180200008

main83882-3D360iKZN185199807

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83883-35020iKZN185199708-199807

main83883-35120iKZN185199511-199708

main83883-35130iRZN185,VZN185199511-199807

main83883-3D200iRZN185,VZN185199807-200008

main83883-3D360iKZN185199807

83247PLATE, METER CIRCUIT

main83861-35120iKZN185199511-199708

main83861-35121iKZN185199708-199807

main83861-35130iRZN185,VZN185199511-199708

main83861-35192iRZN185199708-199807

main83861-35212iVZN185199708-199807

main83861-3D310iVZN18#199807

main83861-3D560iKZN185200008

main83862-3D300iRZN18#199811

main83863-3D250iRZN185199807-199811

main83863-3D360iKZN185199807-200008

83247CPLATE, MATER CIRCUIT, NO.3

main83861-3D300iVZN185199807-199904

main83861-3D301iVZN18#199904

main83861-3D360iKZN185199807-199904

main83861-3D361iKZN185199904-200008

main83861-3D630iRZN180200008

main83862-35120iKZN185199511-199708

main83862-3D350iRZN185199807-199904

main83862-3D351iRZN185199904

main83862-3D560iKZN185200008

86650GBUZZER ASSY

main83248-20010iKZN185199511-199807

831611E020CASE, COMBINATION METER MIRROR, NO.1

main83161-1E020

8316165020CASE, COMBINATION METER MIRROR, NO.1

main83161-65020

8316220140CASE, COMBINATION METER MIRROR, NO.2

main83162-20140

9016750028

main90167-50028

20 parts on this diagram · 4 diagrams in section
