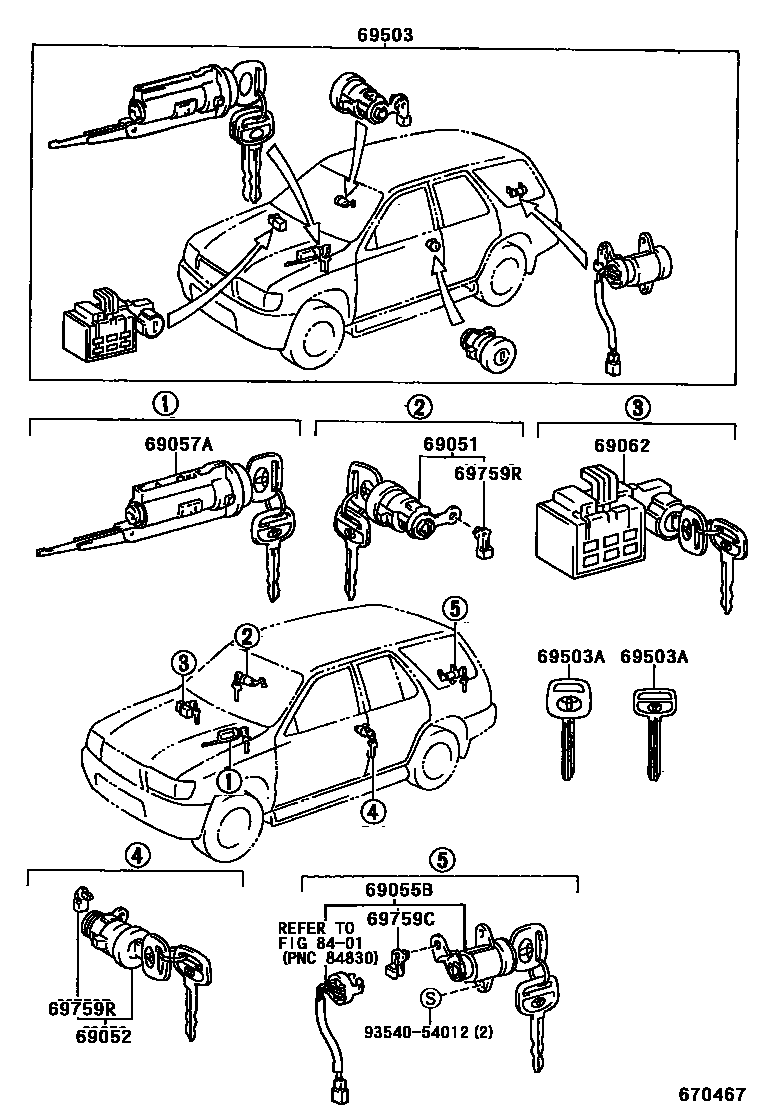

Toyota 4RUNNER — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-35090i199511-199807

main69051-35150i199807

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-35090i199511-199807

main69052-35150i199807

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-35070i199511-199807

main69055-35120i199807

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-35070i199511

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-35040i199511

69503CYLINDER SET, LOCK

main69005-35430i199511-199807

main69005-35780i199807

69503AKEY, BLANK

main90999-00185i199511

MASTER KEY,W(*68)

main90999-00186i199511

MASTER KEY

main90999-00188i199511

SUB KEY

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-24090i199511

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-20080i199511-199807

ORANGE,RH

main69759-20090i199511-199807

PINK,LH

main69759-35030i199807

PINK,LH

main69759-35040i199807

ORANGE,RH

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9354054012

main93540-54012

11 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota 4RUNNER

This section contains 11 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota 4RUNNER. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK.
