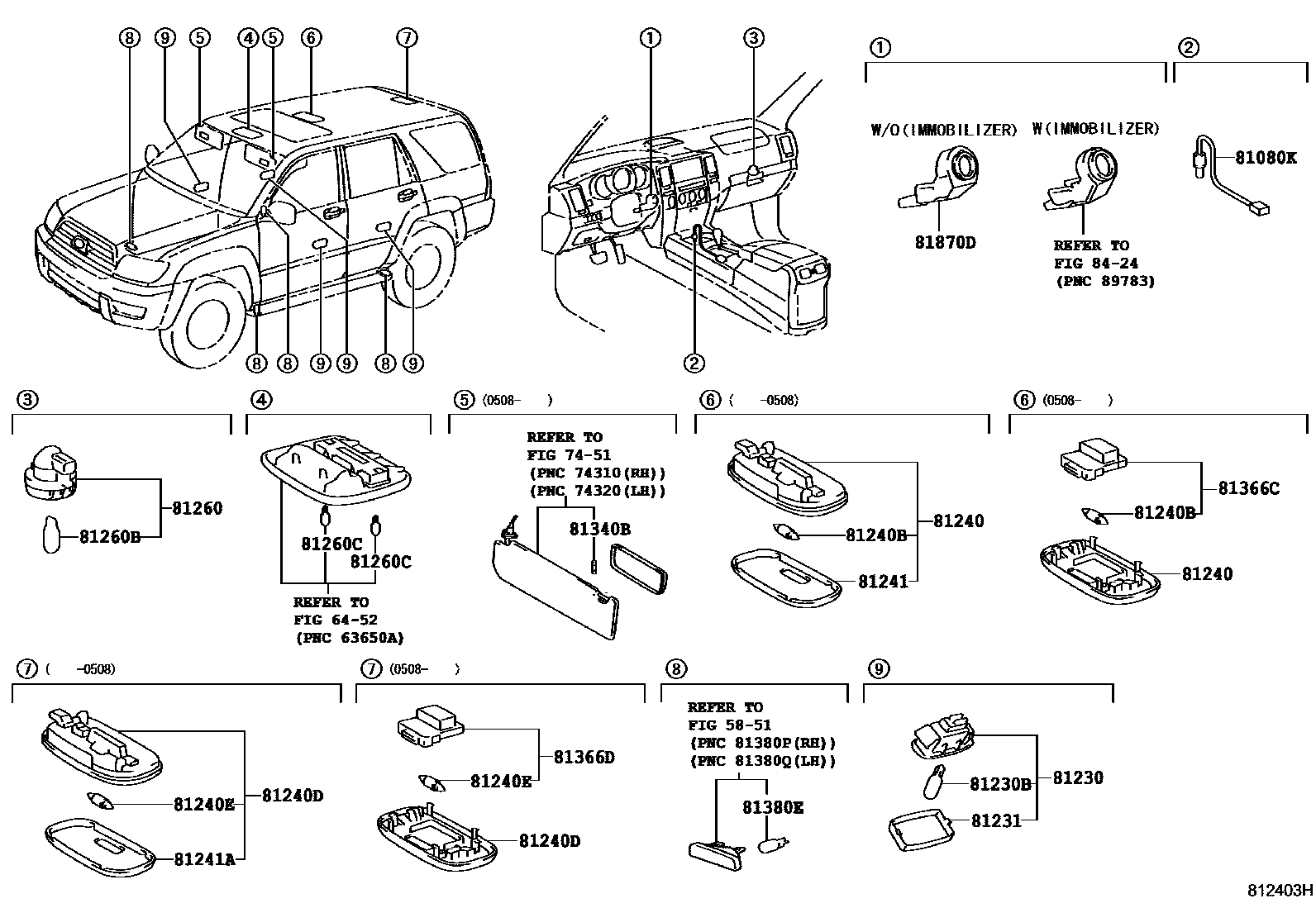

Toyota 4RUNNER — INTERIOR LAMP
5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER
6452ROOF HEADLINING & SILENCER PAD
7451ARMREST & VISOR
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 3.8W
81231LENS, COURTESY LAMP
81240LAMP ASSY, ROOM, NO.1
STONE,TRIM1#
FAWN,TRIM4#
STONE,TRIM1#
FAWN,TRIM4#
81240BBULB, ROOM LAMP, NO.1
12V 8W
81240DLAMP ASSY, ROOM, NO.2
STONE,TRIM1#
FAWN,TRIM4#
STONE,TRIM1#
FAWN,TRIM4#
81240EBULB, ROOM LAMP, NO.2
12V 8W
81241LENS, ROOM LAMP, NO.1
81241ALENS, ROOM LAMP, NO.2
81260LAMP ASSY, GLOVE BOX
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81260CBULB(FOR MAP LAMP)
12V 5W
81340BBULB (FOR VANITY LAMP)
12V 2W; 12V 2W,SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB
81366CBASE, ROOM LAMP SWITCH
81366DBASE, LUGGAGE LAMP SWITCH
81380EBULB (FOR STEP LAMP)
81870DLAMP ASSY, KEY CYLINDER
8424ANTI-THEFT DEVICE
22 parts on this diagram · 1 diagram in section
INTERIOR LAMP for Toyota 4RUNNER
This section contains 22 genuine Toyota parts for the INTERIOR LAMP system of the Toyota 4RUNNER. Key components include: FRONT FLOOR PANEL & FRONT FLOOR MEMBER, ROOF HEADLINING & SILENCER PAD, ARMREST & VISOR, LAMP ASSY, CONSOLE BOX ILLUMINATION, LAMP ASSY, COURTESY.
