Toyota 4RUNNER — INSTRUMENT PANEL & GLOVE COMPARTMENT

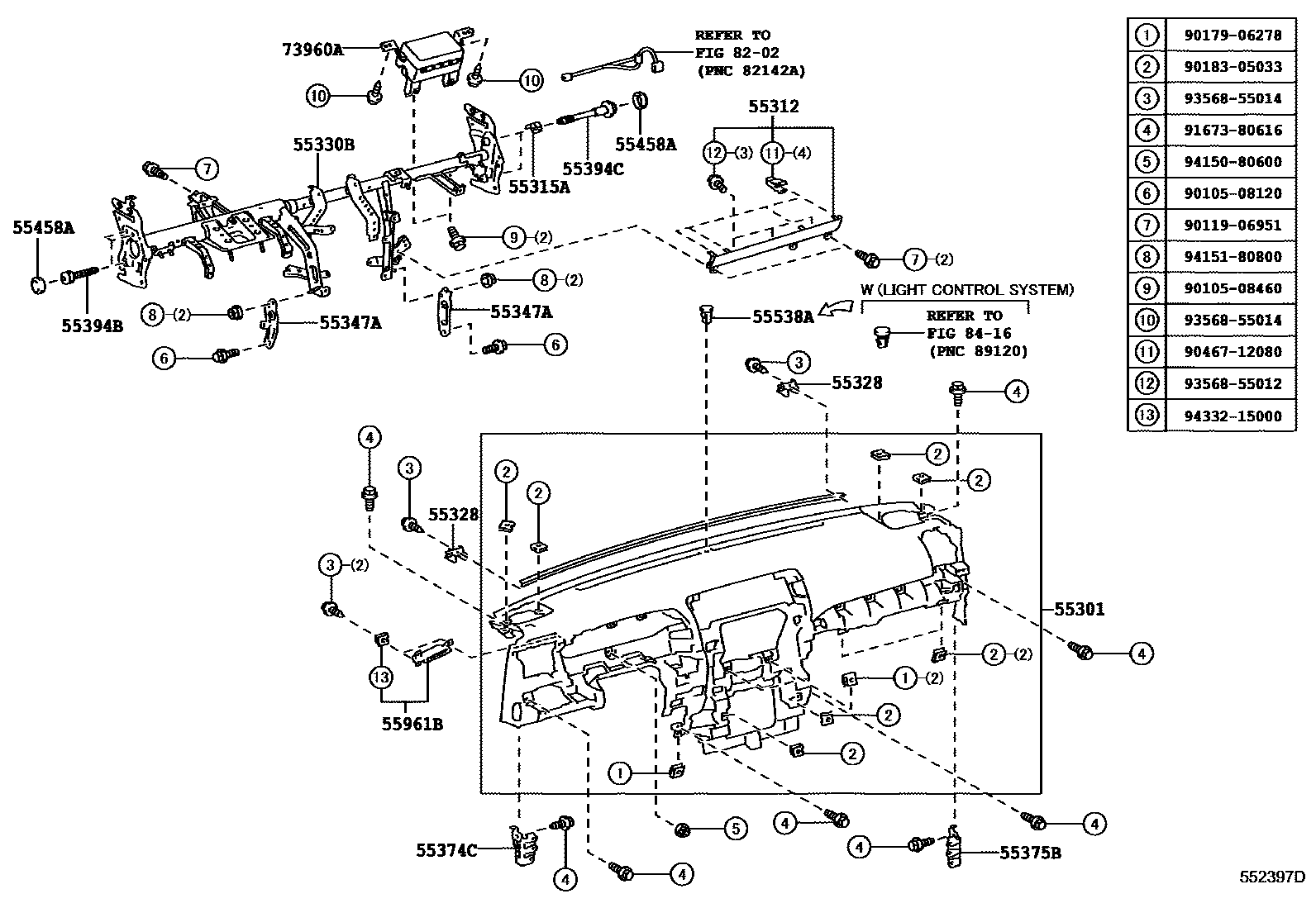

Parts diagram

55301PANEL SUB-ASSY, INSTRUMENT

main55301-35906-C0i200908-201308

BLACK,TRIM1#,4#

55312PANEL, INSTRUMENT, LOWER

main55312-35020-B0i200908-201308

GRAY,TRIM1#

main55312-35020-C0i201908

BLACK,TRIM2#,4#

main55312-35020-E0i200908-201308

SAND BEIGE,TRIM4#

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-53040×2i200908-201308

55328PIN, INSTRUMENT PANEL, NO.1

main55328-35080×2i201308-201908

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-35200i200908-201308

main55330-35240i202008

55347ABRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1

main55347-60110i200908-201308

LH

main55348-60120i200908-201308

RH

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-60110i201908

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-60110i200908-201308

55394BBOLT, INSTRUMENT PANEL

main55394-48050×3i200908-201308

55394CBOLT, INSTRUMENT PANEL

main55394-48060×2i200908-201308

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-50100×5i201908

55538ACOVER, COOLER SWITCH HOLE

main55538-60050i201908-202408

AIR CONDITIONER-AUTO

55961BNOZZLE, SIDE DEFROSTER, NO.1

main55961-35040-C0i200908-201308

BLACK,TRIM1#,4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-35080i200908-201308

main73960-35081i201609-201706

main73960-35082i201707-201908

8202WIRING & CLAMP

→ Go to FIG 82-02

8416AUTOMATIC LIGHT CONTROL SYSTEM (CONLIGHT)

→ Go to FIG 84-16

9010508120

main90105-08120

9010508460

main90105-08460

9011906951

main90119-06951

9017906278

main90179-06278

9018305033

main90183-05033

9046712080

main90467-12080

9167380616

main91673-80616

9356855012

main93568-55012

9356855014

main93568-55014

9415080600

main94150-80600

9415180800

main94151-80800

9433215000

main94332-15000

28 parts on this diagram · 10 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota 4RUNNER

This section contains 75 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota 4RUNNER. Key components include: PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER, STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR, PANEL SUB-ASSY, INSTRUMENT, PANEL SUB-ASSY, INSTRUMENT, LOWER, PANEL, INSTRUMENT, LOWER.
