Toyota 4RUNNER — INSTRUMENT PANEL & GLOVE COMPARTMENT

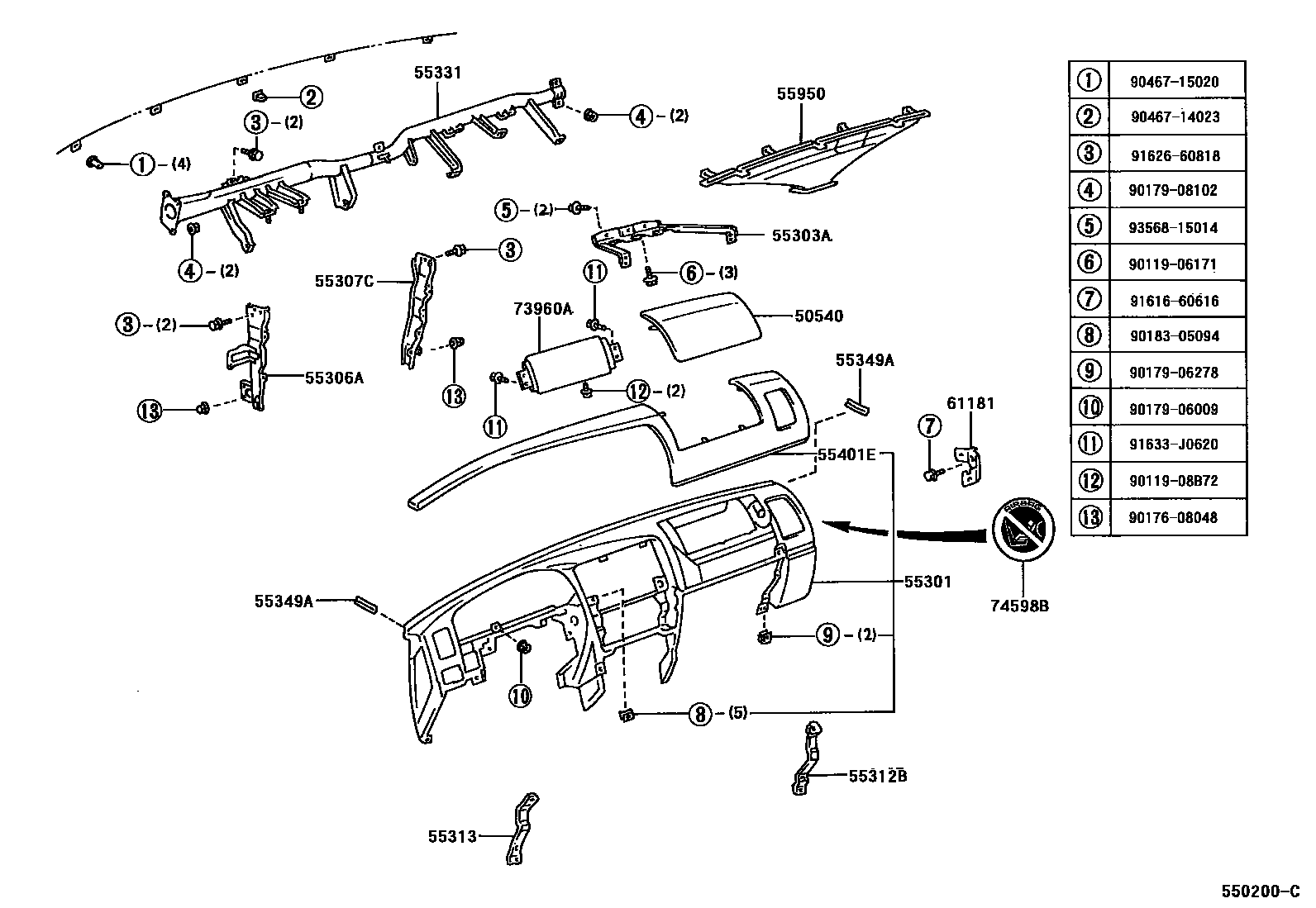

Parts diagram

50540DO0R ASSY, AIRBAG PASSENGER

main50540-35010-B0i199511-199708

MD.MOON MIST,TRIM1#

main50540-35010-E0i199511-199708

OAK,TRIM4#

main50540-35030-B0i199807-200008

MD.MOON MIST,TRIM1#

main50540-35030-B1i200008

DK.CHARCOAL,TRIM1#

main50540-35030-E0i199807

OAK,TRIM4#

55301PANEL SUB-ASSY, INSTRUMENT

main55301-35040-B0i199511-199708

MD.MOON MIST,TRIM1#

main55301-35040-E0i199511-199708

OAK,TRIM4#

main55301-35060-B0i199511-199708

MD.MOON MIST,TRIM1#

main55301-35060-E0i199511-199708

OAK,TRIM4#

main55301-35061-B0i199708-199807

MD.MOON MIST,TRIM1#

main55301-35061-E0i199708-199807

OAK,TRIM4#

main55301-35190-B0i199807-200008

MD.MOON MIST,TRIM1#

main55301-35190-B1i200008

DK.CHARCOAL,TRIM1#

main55301-35190-E0i199807

OAK,TRIM4#

main55301-35200-B0i200008

W(AUTO AIR CONDITIONER),DK.CHARCOAL,TRIM1#

main55301-35200-E0i200008

W(AUTO AIR CONDITIONER),OAK,TRIM4#

55303ASTAY SUB-ASSY, INSTRUMENT PANEL

main55303-35010i199511-199708

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-35020i199511-199608

main55306-35021i199608

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-35020i199511-199608

main55307-35021i199608

55312BPANEL, INSTRUMENT, LOWER RH

main55312-35010i199511-199708

55313PANEL, INSTRUMENT, LOWER LH

main55313-35010i199511-199708

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-35040i199511-199708

main55330-35050i199511-199608

main55330-35051i199608-199708

main55330-35052i199708-199807

PLANT NO.A51-A54

main55330-35090i199708-199807

PLANT NO.P11

main55330-35110i199807-200008

main55330-35130i200008

55349ACUSHION, INSTRUMENT PANEL

main55349-35010i199511-199605

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-35010-B0i199511-199708

MD.MOON MIST,TRIM1#

main55401-35010-E0i199511-199708

OAK,TRIM4#

main55401-35030-B0i199511-199708

MD.MOON MIST,TRIM1#

main55401-35030-B1i200008

DK.CHARCOAL,TRIM1#

main55401-35030-E0i199708

OAK,TRIM4#

55950NOZZLE ASSY, DEFROSTER

main55950-35020i199511

61181BRACKET, INSTRUMENT PANEL SIDE

main61181-35010i199511

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0W090i199511-199708

main73960-0W130i199807-199810

main73960-0W220i199708-199807

main73960-35010i199810-200008

main73960-35030i200008

74598BLABEL, PASSENGER AIRBAG CAUTION

main74598-20010i199702

9011906171

main90119-06171

9011908B72

main90119-08B72

9017608048

main90176-08048

9017906009

main90179-06009

9017906278

main90179-06278

9017908102

main90179-08102

9018305094

main90183-05094

9046714023

main90467-14023

9046715020

main90467-15020

9161660616

main91616-60616

9162660818

main91626-60818

91633J0620

main91633-J0620

9356815014

main93568-15014

27 parts on this diagram · 2 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota 4RUNNER

This section contains 70 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota 4RUNNER. Key components include: DO0R ASSY, AIRBAG PASSENGER, PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER, PANEL SUB-ASSY, INSTRUMENT, STAY SUB-ASSY, INSTRUMENT PANEL, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1.
