Toyota 4RUNNER — INJECTION PUMP ASSEMBLY

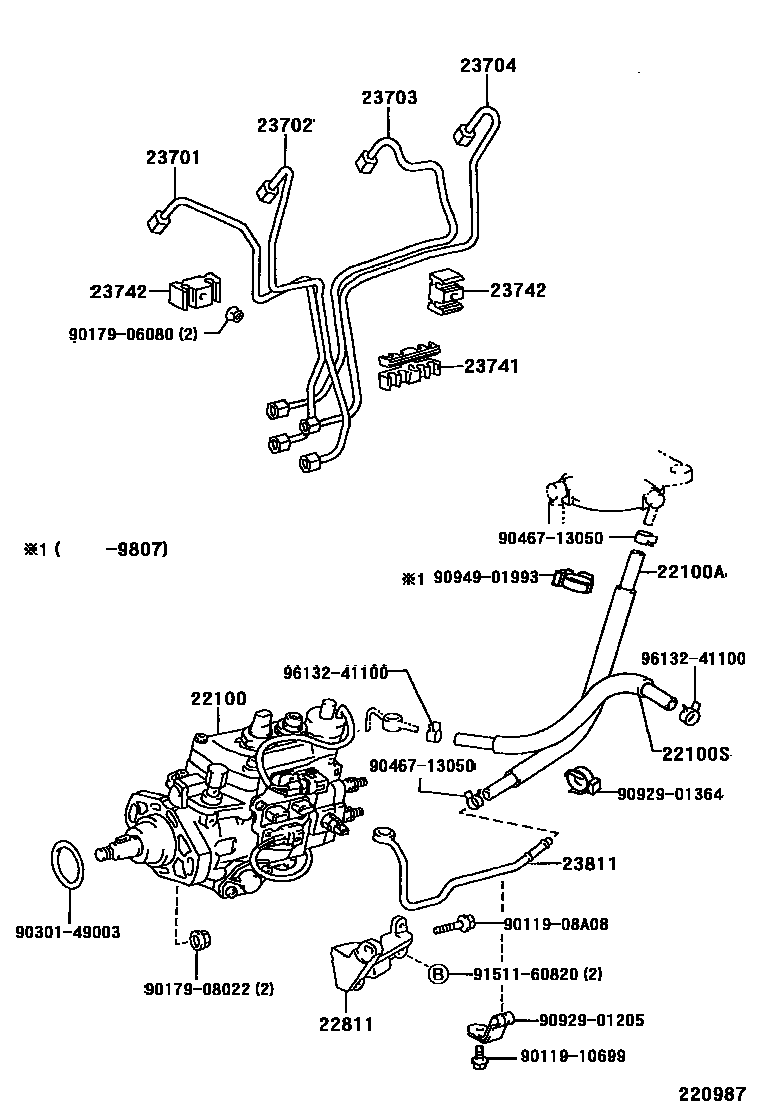

Parts diagram

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-67060i199511-199712

main22100-67090i199702-199712

ARGENTINA SPEC

main22100-67120i200008

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-67090i199511-200008

L=550

main23271-67160i200008

L=550

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23273-67050i199511-199604

main23273-67070i200008

main23273-67080i199604-200008

22811STAY, INJECTION PUMP, NO.1

main22811-67010i199511

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-67021i199511

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-67020i199511-199905

main23702-67021i199905

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-67021i199511-199807

main23703-67030i199807-199905

main23703-67031i199905

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-67020i199511

23741CLAMP, INJECTION PIPE, NO.1

main23741-64030i199511

23742CLAMP, INJECTION PIPE, NO.2

main23742-67010×2i199511

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-67050i199511

9011908A08

main90119-08A08

9011910699

main90119-10699

9017906080

main90179-06080

9017908022

main90179-08022

9030149003

main90301-49003

9046713050

main90467-13050

9092901205

main90929-01205

9092901364

main90929-01364

9094901993

main90949-01993

9151160820

main91511-60820

9613241100

main96132-41100

22 parts on this diagram · 2 diagrams in section

INJECTION PUMP ASSEMBLY for Toyota 4RUNNER

This section contains 23 genuine Toyota parts for the INJECTION PUMP ASSEMBLY system of the Toyota 4RUNNER. Key components include: PUMP ASSY, INJECTION OR SUPPLY, HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER), HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE), CLIP, HOSE FUEL(FOR INJECTION PUMP), STAY, INJECTION PUMP, NO.1.
