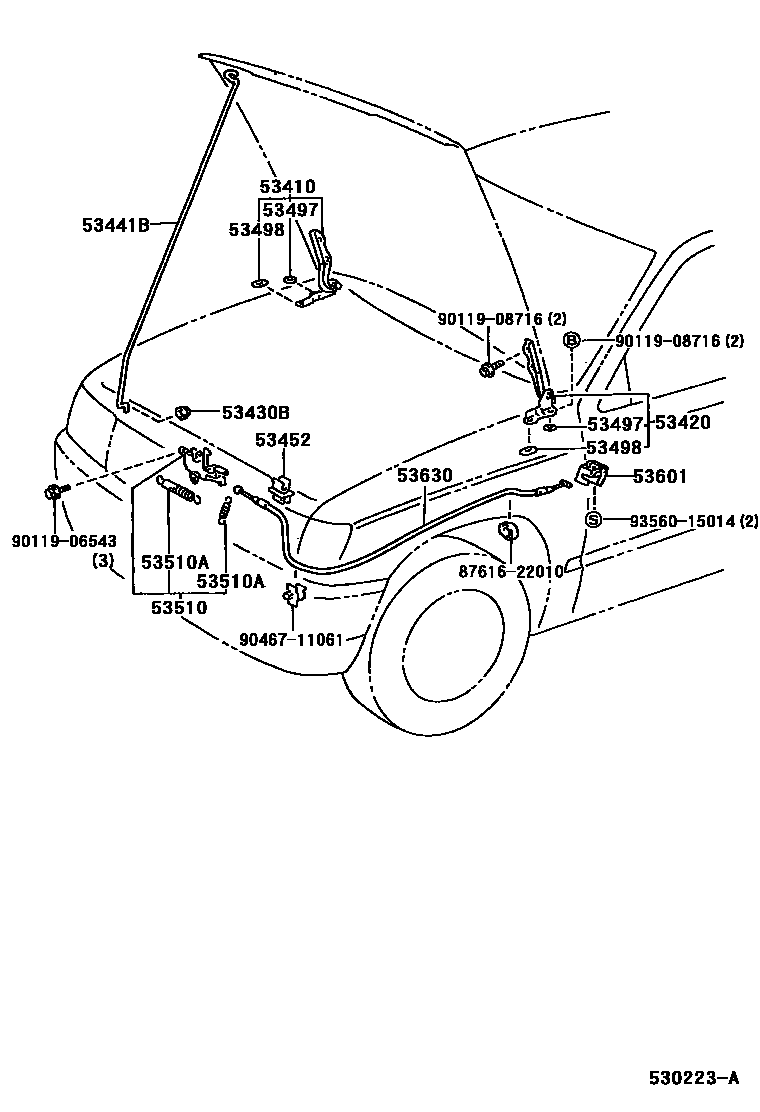

Toyota 4RUNNER — HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53430BGROMMET(FOR HOOD SUPPORT)
53441BSUPPORT, HOOD
53452HOLDER, HOOD STAY
53497PAD, HOOD HINGE, NO.1
53498PAD, HOOD HINGE, NO.2
53510LOCK ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
WD=2.0,CW=17
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
MD.MOON MIST,TRIM1#
DK.CHARCOAL,TRIM1#
OAK,TRIM4#
SANDAL WOOD,TRIM4#
53630CABLE ASSY, HOOD LOCK CONTROL
8761622010CLAMP, COOLING UNIT CASE
main87616-22010
9011906543
main90119-06543
9011908716
main90119-08716
9046711061
main90467-11061
9356015014
main93560-15014
16 parts on this diagram · 1 diagram in section
HOOD LOCK & HINGE for Toyota 4RUNNER
This section contains 16 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota 4RUNNER. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, GROMMET(FOR HOOD SUPPORT), SUPPORT, HOOD, HOLDER, HOOD STAY.
