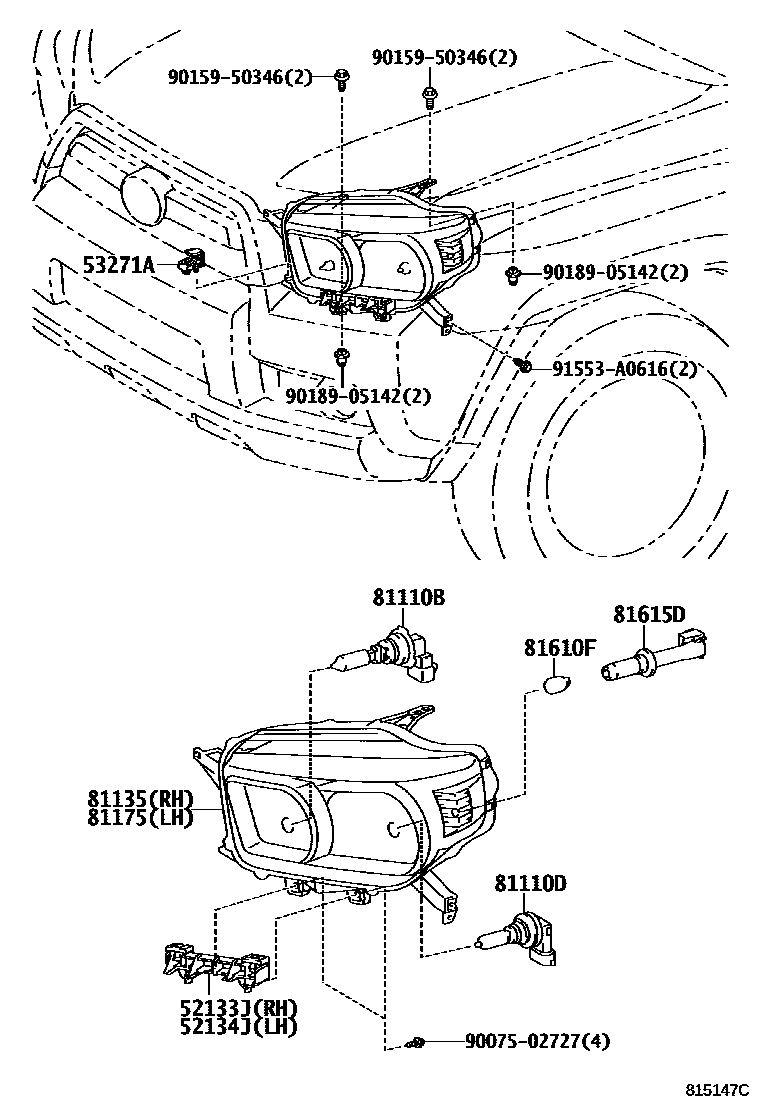

Toyota 4RUNNER — HEADLAMP

52133JREINFORCEMENT, FRONT BUMPER BAR, RH

main52133-35080i201908-202108

LIMITED PACKAGE

52134JREINFORCEMENT, FRONT BUMPER BAR, LH

main52134-35080i202108-202208

LIMITED PACKAGE&AUDIO-*DA & 8SPEAKER

53271ABRACKET, HEADLAMP MOUNTING

main53271-12060×2i200908-201308

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2i200908-201308

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13075×2i200908-201308

12V 55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-35520i200908-201308

main81130-35540i201308-201405

main81130-35541i201405-201908

main81140-35610i202008-202208

main81140-35620i202208

81175UNIT ASSY, HEADLAMP, LH

main81070-35600i202008-202208

main81070-35610i202208

main81170-35520i200908-201308

main81170-35570i201308-201405

main81170-35571i201908-202008

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i200908-201308

12V 5W

81615DSOCKET, CLEARANCE LAMP

main81125-48470×2i200908-201308

9007502727

main90075-02727

9015950346

main90159-50346

9018905142

main90189-05142

91553A0616

main91553-A0616

13 parts on this diagram · 3 diagrams in section

HEADLAMP for Toyota 4RUNNER

This section contains 20 genuine Toyota parts for the HEADLAMP system of the Toyota 4RUNNER. Key components include: REINFORCEMENT, FRONT BUMPER BAR, RH, REINFORCEMENT, FRONT BUMPER BAR, LH, BRACKET, HEADLAMP MOUNTING, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2).
