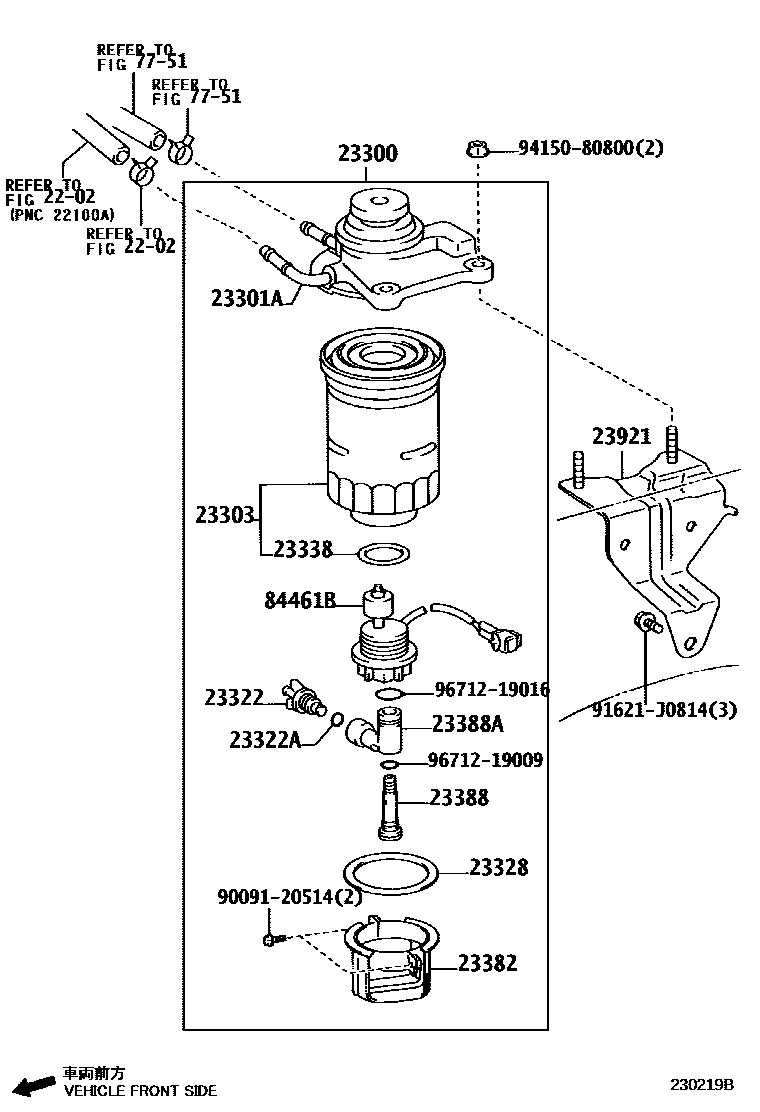

Toyota 4RUNNER — FUEL FILTER
2202INJECTION PUMP ASSEMBLY
23301ACAP ASSY, FUEL FILTER
23303ELEMENT SUB-ASSY, FUEL FILTER
23322PLUG, DRAIN(FOR FUEL FILTER)
23322ARING, O(FOR DRAIN PLUG)
23328GASKET(FOR FUEL FILTER)
23338GASKET(FOR WARNING SWITCH)
23382CASE, FUEL FILTER
23388PLUG, FUEL FILTER DRAIN
23388APLUG, FUEL FILTER DRAIN
23921SUPPORT, FUEL FILTER
7751FUEL TANK & TUBE
84461BSWITCH, LEVEL WARNING
9009120514
main90091-20514
91621J0814
main91621-J0814
9415080800
main94150-80800
9671219009
main96712-19009
9671219016
main96712-19016
19 parts on this diagram · 1 diagram in section
FUEL FILTER for Toyota 4RUNNER
This section contains 19 genuine Toyota parts for the FUEL FILTER system of the Toyota 4RUNNER. Key components include: INJECTION PUMP ASSEMBLY, FILTER ASSY, FUEL, CAP ASSY, FUEL FILTER, ELEMENT SUB-ASSY, FUEL FILTER, PLUG, DRAIN(FOR FUEL FILTER).
