Toyota 4RUNNER — FUEL FILTER

23301ACAP ASSY, FUEL FILTER

main23380-67110i199511-199901

main23380-67201i199901-199906

main23380-67280i199906-200008

main23380-67350i200008

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i199511-199906

MARK 23303-64010

main23390-64480i199906

MARK 23390-64480

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64020i199511

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i199511

23338GASKET(FOR WARNING SWITCH)

main23344-64010i199511

23921SUPPORT, FUEL FILTER

main23921-67030i199511

84461BSWITCH, LEVEL WARNING

main84461-35110i199511-199606

main84461-60070i199606

9017908150

main90179-08150

9162660818

main91626-60818

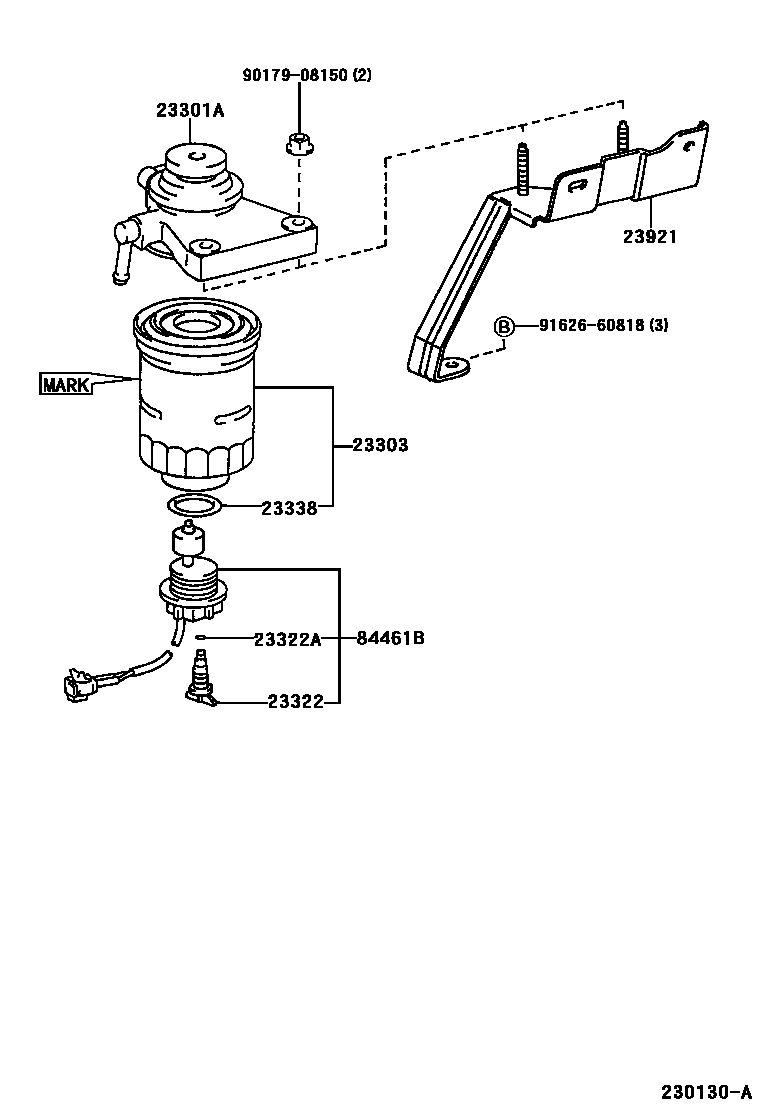

9 parts on this diagram · 1 diagram in section

FUEL FILTER for Toyota 4RUNNER

This section contains 9 genuine Toyota parts for the FUEL FILTER system of the Toyota 4RUNNER. Key components include: CAP ASSY, FUEL FILTER, ELEMENT SUB-ASSY, FUEL FILTER, PLUG, DRAIN(FOR FUEL FILTER), RING, O(FOR DRAIN PLUG), GASKET(FOR WARNING SWITCH).
