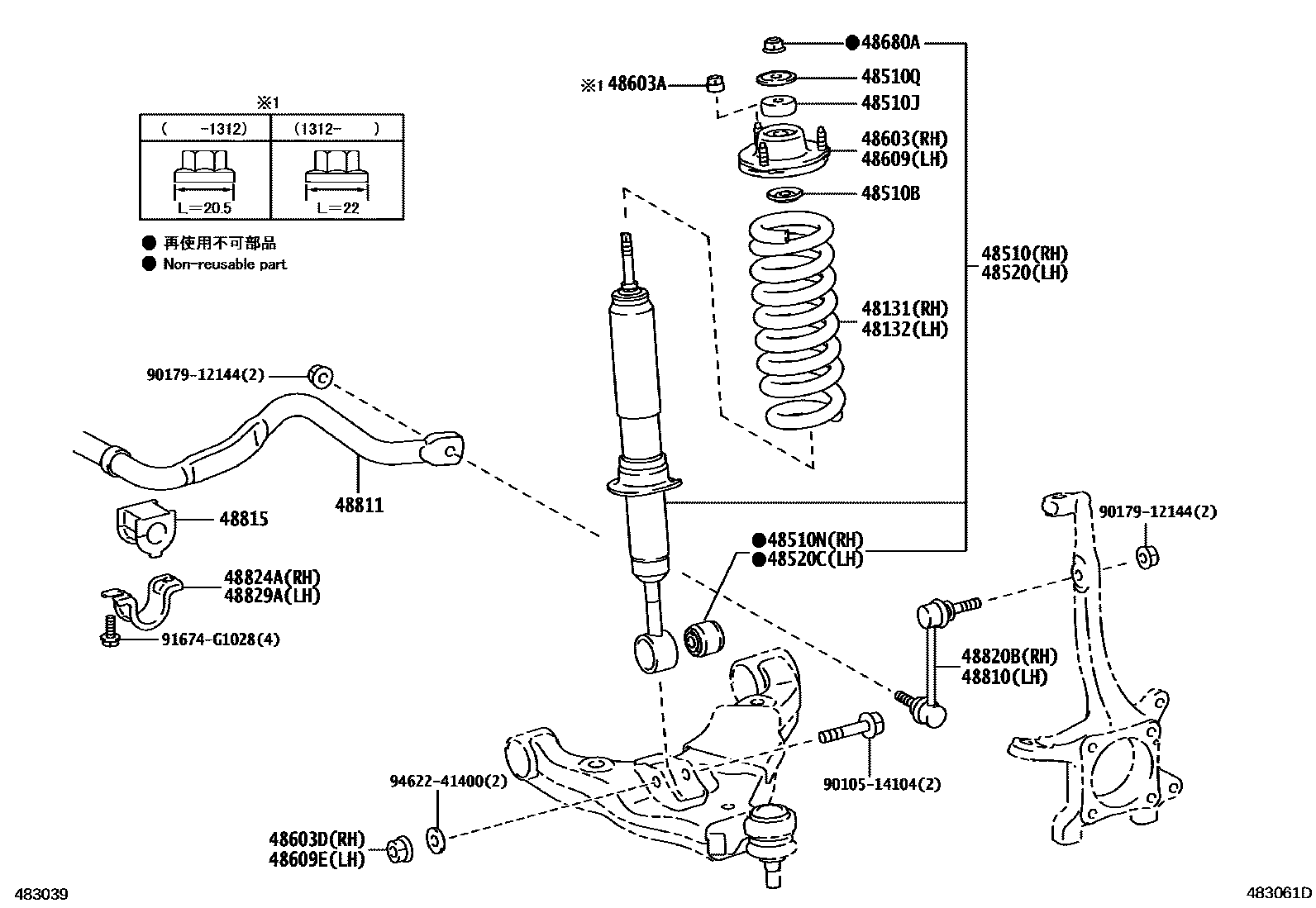

Toyota 4RUNNER — FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-35600iGRN280201908-202401

main48131-35601iGRN280202402

main48131-35650iGRN285200908-201308

main48131-35651iGRN285202402

48132SPRING, FRONT COIL, LH

main48131-35620iGRN285200908-201308

main48131-35621iGRN285202402

main48131-35710iGRN280201308-201908

main48131-35711iGRN280202402

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80498iGRN280201908

MARK 48510-35350

main48510-80507iGRN285200908-201308

MARK 48510-35430

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02205×2iGRN28#200908-201308

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-01100×2iGRN28#200908-201308

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main48536-60010iGRN28#201308-201908

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-02161×2iGRN28#201908

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-80498iGRN280201908

MARK 48510-35350

main48510-80507iGRN285201908

MARK 48510-35430

48520CBUSH(FOR FRONT SHOCK ABSORBER LH)

main48536-60010iGRN28#200908-201308

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-60100iGRN28#200908-201308

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10014×6iGRN28#201312-201908

main90178-10015×6iGRN28#200908-201308

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90170-14032iGRN28#201908

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-60100iGRN28#200908-201308

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90170-14032iGRN28#200908-201308

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94184-01241×2iGRN28#200908-201308

48810LINK ASSY, FRONT STABILIZER, LH

main48810-60040iGRN28#200908-201308

48811BAR, STABILIZER, FRONT

main48811-60320iGRN28#200908-201308

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-60310×2iGRN28#200908-201105

main48815-60380×2iGRN28#201106-201308

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-60050iGRN28#200908-201308

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-60190iGRN28#200908-201308

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48829-60120iGRN28#200908-201308

9010514104

main90105-14104

9017912144

main90179-12144

91674G1028

main91674-G1028

9462241400

main94622-41400

25 parts on this diagram · 1 diagram in section
