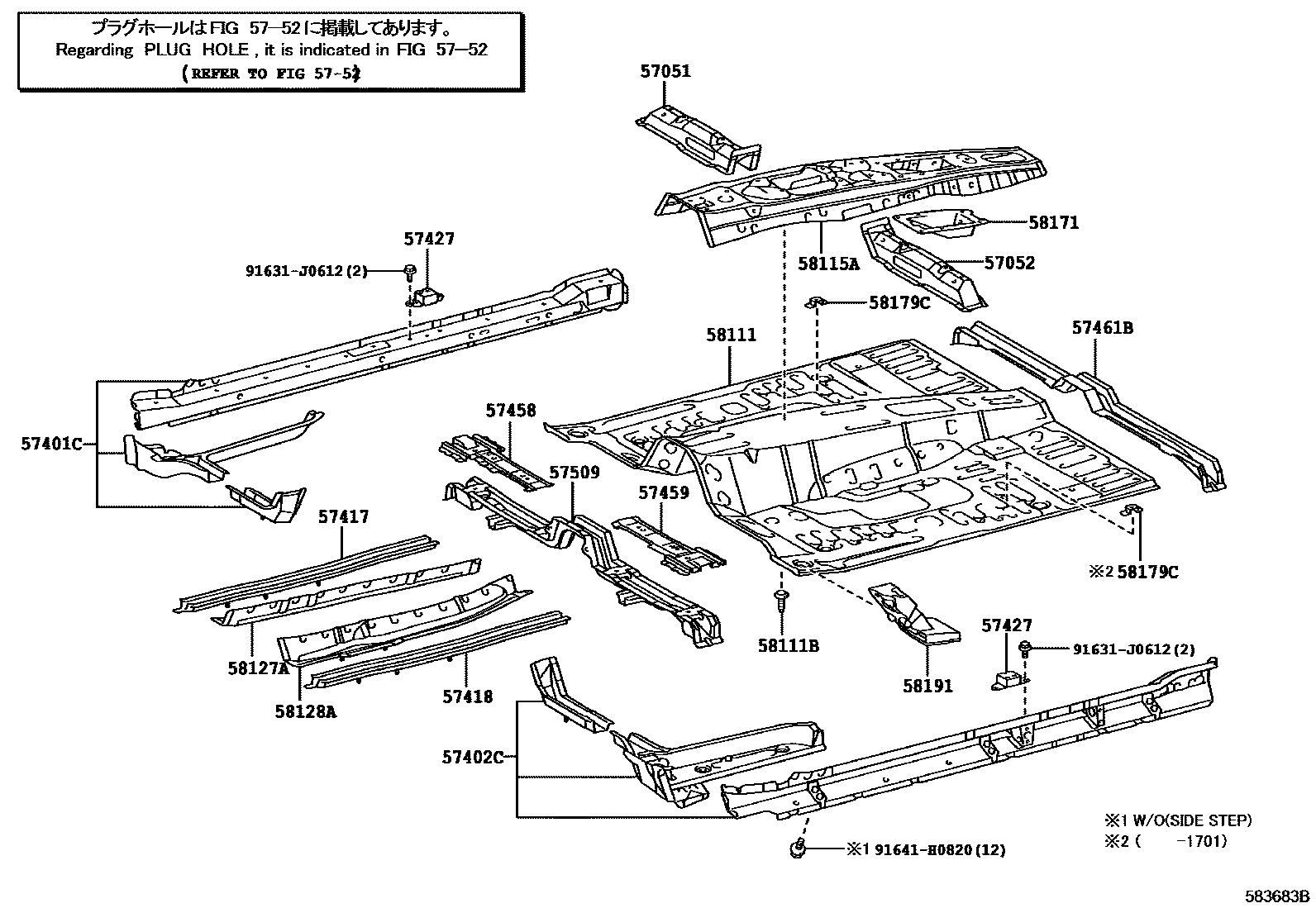

Toyota 4RUNNER — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-35051i200908-201308

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-35051i200908-201308

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-60901i200908-201109

main57401-60903i201110-201308

57402CMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-60901i200908-201109

main57402-60903i201110-201308

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-35051i200908-201308

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-35061i200908-201308

57427REINFORCEMENT, FRONT FLOOR TO BRACE

main57427-60020×2i200908-201308

57458MEMBER, FRONT FLOOR CROSS, NO.1

main57458-60020i200908-201308

57459MEMBER, FRONT FLOOR CROSS, NO.2

main57459-60070i200908-201308

57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57461-35020i200908-201308

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-60100i200908-201308

5752

58111PAN, FRONT FLOOR

main58111-35431i200908-201308

58111BBOLT, WELD(FOR FRONT FLOOR PAN)

main90115-06166×6i200908-201308

58115AREINFORCEMENT, FRONT FLOOR PANEL

main58115-60011i200908-201308

58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-35010i200908-201308

58128AREINFORCEMENT, FRONT CROSS TO FRONT PANEL MEMBER, LH

main58128-35011i200908-201308

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-60020i200908-201308

58179CBRACKET, CLAMP FLOOR

main58179-60010×2i200908-201308

58191FOOTREST, FRONT FLOOR

main58190-35050i200908-201108

main58190-35051i201108-201308

91631J0612

91641H0820

22 parts on this diagram · 2 diagrams in section
