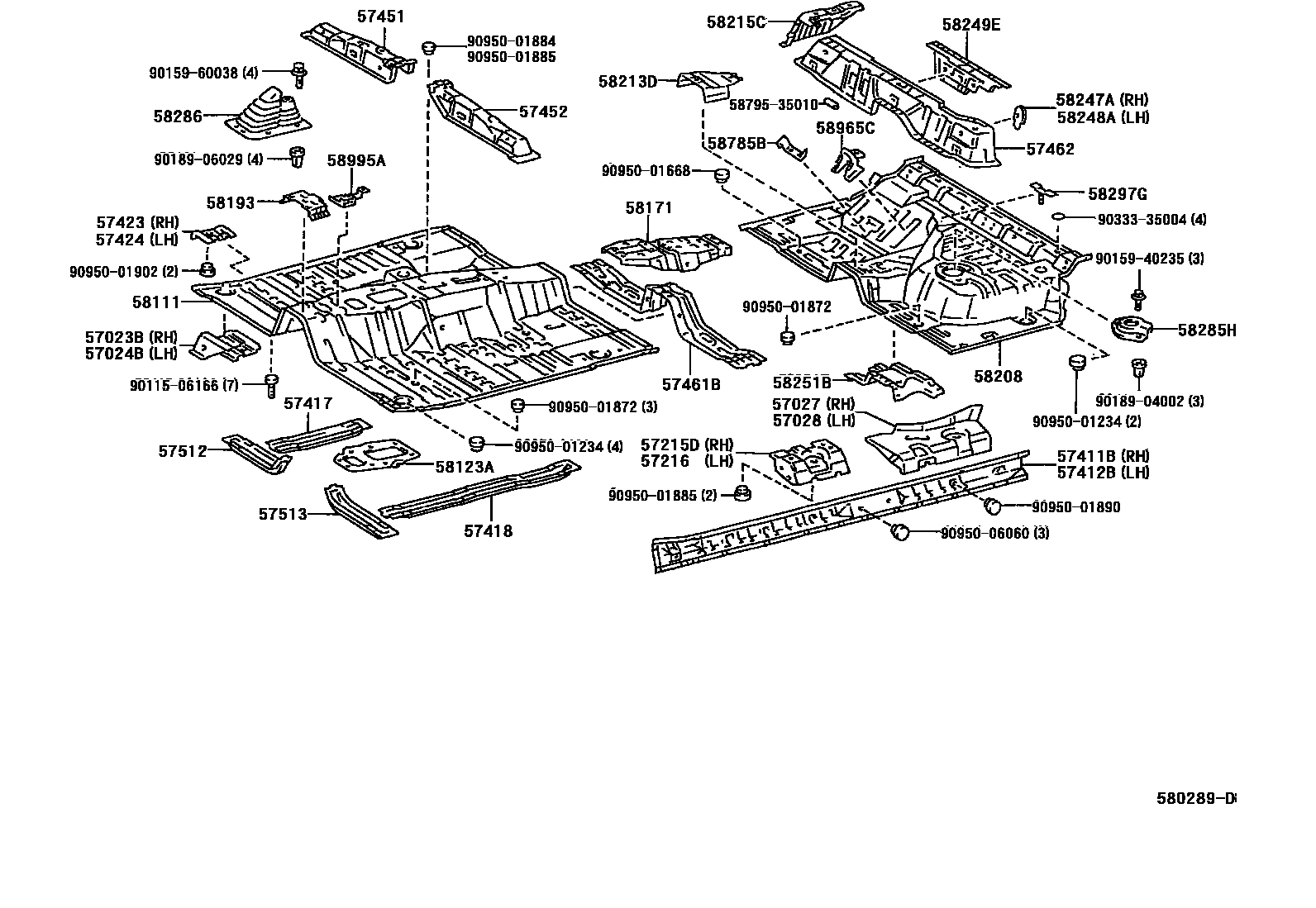

Toyota 4RUNNER — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
57023BBRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH
57024BBRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH
57027BRACKET SUB-ASSY, BODY MOUNTING, NO.4 RH
57028BRACKET SUB-ASSY, BODY MOUNTING, NO.4 LH
57215DBRACKET, BODY MOUNTING, NO.3 RH
57216BRACKET SUB-ASSY, BODY MOUNTING, NO.3 LH
57411BMEMBER, FLOOR SIDE, INNER RH
57412BMEMBER, FLOOR SIDE, INNER LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57423BRACKET, FRONT FLOOR REINFORCEMENT, RH
57424BRACKET, FRONT FLOOR REINFORCEMENT, LH
57451MEMBER, FRONT FLOOR CROSS
57452MEMBER, FRONT FLOOR CROSS, LH
57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57462MEMBER, CENTER FLOOR CROSS, NO.2
57512REINFORCEMENT, FRONT FLOOR, RH
57513REINFORCEMENT, FRONT FLOOR, LH
58111PAN, FRONT FLOOR
58123ASUPPORT, SHIFT & SELECT LEVER
58171REINFORCEMENT, PARKING BRAKE BASE
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58208PAN, CENTER FLOOR
58213DREINFORCEMENT, CENTER FLOOR PANEL
58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58249EREINFORCEMENT, REAR SEAT MOUNTING
58251BBRACE, FLOOR PANEL, FRONT
58285HCOVER, CENTER FLOOR HOLE
58286BOOT, SHIFT & SELECT LEVER, NO.1
58297GRETAINER, FLOOR CLAMP
58785BBRACKET, TOOL BAG BAND
58965CHOLDER, JACK
W(3RD SEAT)
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
5879535010BAND, JACK CLAMP, NO.1
main58795-35010
9011506166
main90115-06166
9015940235
main90159-40235
9015960038
main90159-60038
9018904002
main90189-04002
9018906029
main90189-06029
9033335004
main90333-35004
9095001234
main90950-01234
9095001668
main90950-01668
9095001872
main90950-01872
9095001884
main90950-01884
9095001885
main90950-01885
9095001890
main90950-01890
9095001902
main90950-01902
9095006060
main90950-06060
50 parts on this diagram · 2 diagrams in section
