Toyota 4RUNNER — FRONT FENDER APRON & DASH PANEL

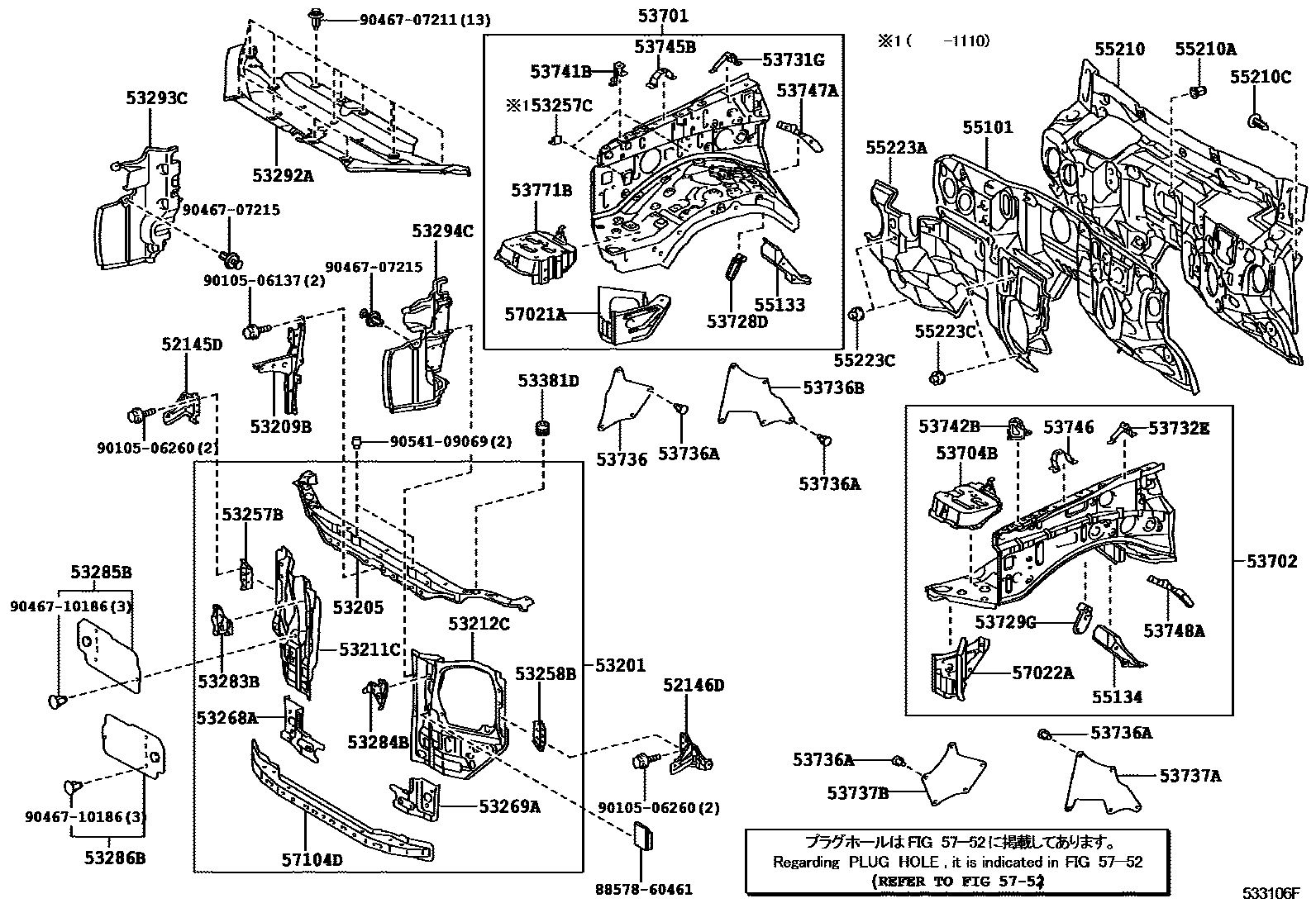

Parts diagram
52145DBRACKET, FRONT BUMPER SIDE MOUNTING, RH
main53803-35030i200908-201308
52146DBRACKET, FRONT BUMPER SIDE MOUNTING, LH
main53804-35040i200908-201308
53201SUPPORT SUB-ASSY, RADIATOR
main53201-60170i200908-201308
main53201-60171i201409-201908
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
main53205-60070i200908-201308
53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT
main53209-35040i200908-201212
main53209-35041i201301-201308
main53209-35050i201308-201707
main53209-35051i201708-201908
main53209-35060i201908
53211CSUPPORT, RADIATOR, RH
main53211-60240i200908-201305
main53211-60241i201306-201308
main53211-60242i201409-201908
53212CSUPPORT, RADIATOR, LH
main53212-60200i200908-201305
main53212-60201i201306-201308
main53212-60202i201409-201908
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
main53257-60070i200908-201308
53257CBRACKET, RADIATOR SUPPORT TO FRONT FENDER, NO.2
main53257-35030×2i200908-201110
53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
main53257-60070i200908-201308
53268AREINFORCEMENT, RADIATOR MOUNTING, RH
main53268-35040i200908-201308
53269AREINFORCEMENT, RADIATOR MOUNTING, LH
main53269-35040i200908-201308
53283BREINFORCEMENT, FRONT BODY MOUNTING, NO.2 RH
main53283-60050i201908
53284BREINFORCEMENT, FRONT BODY MOUNTING, NO.2 LH
main53284-60010i201308-201908
53285BSEAL, RADIATOR SIDE AIR, NO.1
main53298-35010i200908-201308
53286BSEAL, RADIATOR SIDE AIR, NO.2
main53299-35100i200908-201308
53292ASEAL, RADIATOR SUPPORT, UPPER
main53292-35030i200908-201307
main53292-35031i201308-201908
53293CDEFLECTOR, RADIATOR SIDE, RH
main53293-35030supersedes 53293-35020i201908
LIMITED PACKAGE
53294CDEFLECTOR, RADIATOR SIDE, LH
main53294-35030supersedes 53294-35020i201908
LIMITED PACKAGE
53381DBUMPER, HOOD TO FRONT SHROUD
main90541-15004×2i200908-201308
53701APRON SUB-ASSY, FRONT FENDER, RH
main53701-35A40i200908-201308
main53701-35A41i201501-201908
53702APRON SUB-ASSY, FRONT FENDER, LH
main53702-35A20i200908-201009
main53702-35A22i201010-201308
main53702-35A23i201501-201908
53704BSUPPORT SUB-ASSY, BATTERY, LH
main53704-35082i200908-201308
main53704-60050i201501-201705
main53704-60060i201706-201908
53728DBRACKET, FENDER APRON, RH
main53728-35060i200908-201308
53729GBRACKET, FENDER APRON, LH
main53728-35060i201308-201908
53731GREINFORCEMENT, FRONT FENDER APRON, RH
main53731-35060i200908-201308
53732EREINFORCEMENT, FRONT FENDER APRON, LH
main53732-35080i200908-201308
53736SEAL, FRONT FENDER APRON, RH
main53735-35150i200908-201308
main53735-35151i202109
53736ACLIP(FOR FRONT FENDER APRON SEAL)
main90467-10186×19i200908-201308
53736BSEAL, FRONT FENDER APRON TO FRAME, NO.1 RH
main53885-60030i200908-201308
53737ASEAL, FRONT FENDER APRON TO FRAME, NO.1 LH
main53885-60030i200908-201308
53737BSEAL, FRONT FENDER APRON, LH
main53736-35150i200908-201308
main53736-35151i202109
53741BPLATE, FENDER APRON REINFORCE, RH
main53741-35060i200908-201308
53742BPLATE, FENDER APRON REINFORCE, LH
main53742-35070i200908-201308
53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH
main53745-35020i200908-201308
53746REINFORCEMENT, FRONT FENDER APRON, REAR LH
main53746-35010i200908-201308
53747AEXTENSION, APRON FENDER SIDE, RH
main53747-60020i200908-201308
53748AEXTENSION, APRON FENDER SIDE, LH
main53748-60010i200908-201308
53771BSUPPORT, BATTERY CARRIER, RH
main53703-35042i200908-201308
main53703-60061i201501-201705
main53703-60080i201706-201908
55101PANEL SUB-ASSY, DASH
main55101-35A00i200908-201308
55133PLATE, FRONT FENDER APRON SET, LOWER RH
main55133-60060i200908-201308
55134PLATE, FRONT FENDER APRON SET, LOWER LH
main55134-60070i200908-201308
55210INSULATOR ASSY, DASH PANEL
main55210-35390i200908-201105
main55210-35391i201106-201304
main55210-35392i201305-201308
55210ACLIP
main90467-06155i200908-201308
55210CCLIP
main90467-08186-C0×2i200908-201308
BLACK
main90467-08186-C3×2i201610-201908
BLACK
55223AINSULATOR, DASH PANEL, OUTER
main55223-35072i200908-201011
main55223-35073i201012-201109
sub55223-35074
main55223-35100i201110-201308
main55223-35101i201808-201908
55223CCLIP
main90467-06169×4i200908-201012
main90467-06206-C0×4i201101-201308
BLACK
57021ABRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH
main57021-35060i200908-201308
57022ABRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH
main57022-35050i200908-201308
57104DMEMBER SUB-ASSY, FRONT CROSS
main57104-35061i200908-201308
5752
8857860461PAKING, COOLER AIR DUCT
main88578-60461
9010506137
main90105-06137
9010506260
main90105-06260
9046707211
main90467-07211
9046707215
main90467-07215
9046710186
main90467-10186
9054109069
main90541-09069

58 parts on this diagram · 2 diagrams in section
