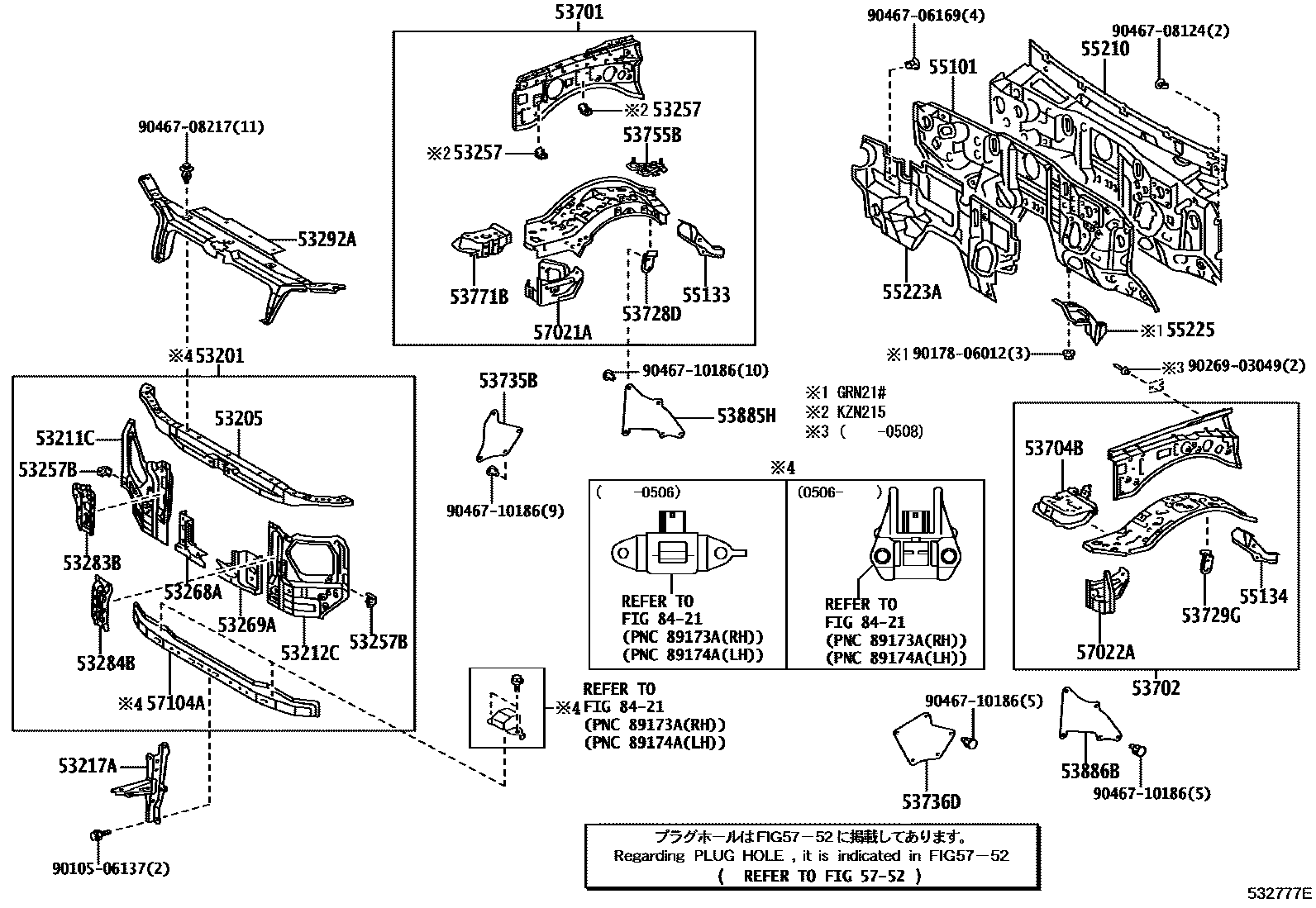

Toyota 4RUNNER — FRONT FENDER APRON & DASH PANEL
53201SUPPORT SUB-ASSY, RADIATOR
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53211CSUPPORT, RADIATOR, RH
53212CSUPPORT, RADIATOR, LH
53217ABRACE, HOOD LOCK SUPPORT
53257BRACKET, FRONT END PANEL MOUNTING, RH
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53268AREINFORCEMENT, RADIATOR MOUNTING, RH
53269AREINFORCEMENT, RADIATOR MOUNTING, LH
53283BREINFORCEMENT, FRONT BODY MOUNTING, NO.2 RH
53284BREINFORCEMENT, FRONT BODY MOUNTING, NO.2 LH
53292ASEAL, RADIATOR SUPPORT, UPPER
53702APRON SUB-ASSY, FRONT FENDER, LH
53728DBRACKET, FENDER APRON, RH
53729GBRACKET, FENDER APRON, LH
53735BSEAL, FRONT FENDER APRON, UPPER
sub53735-35151
53736DSEAL, FENDER APRON
sub53736-35151
53755BREINFORCEMENT, BRAKE ACTUATOR MOUNTING, NO.1
53771BSUPPORT, BATTERY CARRIER, RH
53885HSEAL, FENDER APRON MUDGUARD, RH
53886BSEAL, FENDER APRON MUDGUARD, LH
55101PANEL SUB-ASSY, DASH
55133PLATE, FRONT FENDER APRON SET, LOWER RH
55134PLATE, FRONT FENDER APRON SET, LOWER LH
55210INSULATOR ASSY, DASH PANEL
sub55210-35351
55225INSULATOR, DASH PANEL HEAT
sub55225-35171
57021ABRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH
57022ABRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH
57104AMEMBER SUB-ASSY, FRONT CROSS
5752
8421
9010506137
main90105-06137
9017806012
main90178-06012
9026903049
main90269-03049
9046706169
main90467-06169
9046708124
main90467-08124
9046708217
main90467-08217
9046710186
main90467-10186
41 parts on this diagram · 1 diagram in section
