Toyota 4RUNNER — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-35030i200211-200609

main68710-35031i200610-200908

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-35030i200211-200609

main68720-35031i200610-200908

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-35030i200211-200609

main68730-35031i200610-200908

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-35030i200211-200609

main68740-35031i200610-200908

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-58010i200211-200508

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-58010i200211-200508

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-35180i200211-200508

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-58010i200211-200508

9010506260

main90105-06260

9010508291

main90105-08291

9010508362

main90105-08362

9011906984

main90119-06984

9016850040

main90168-50040

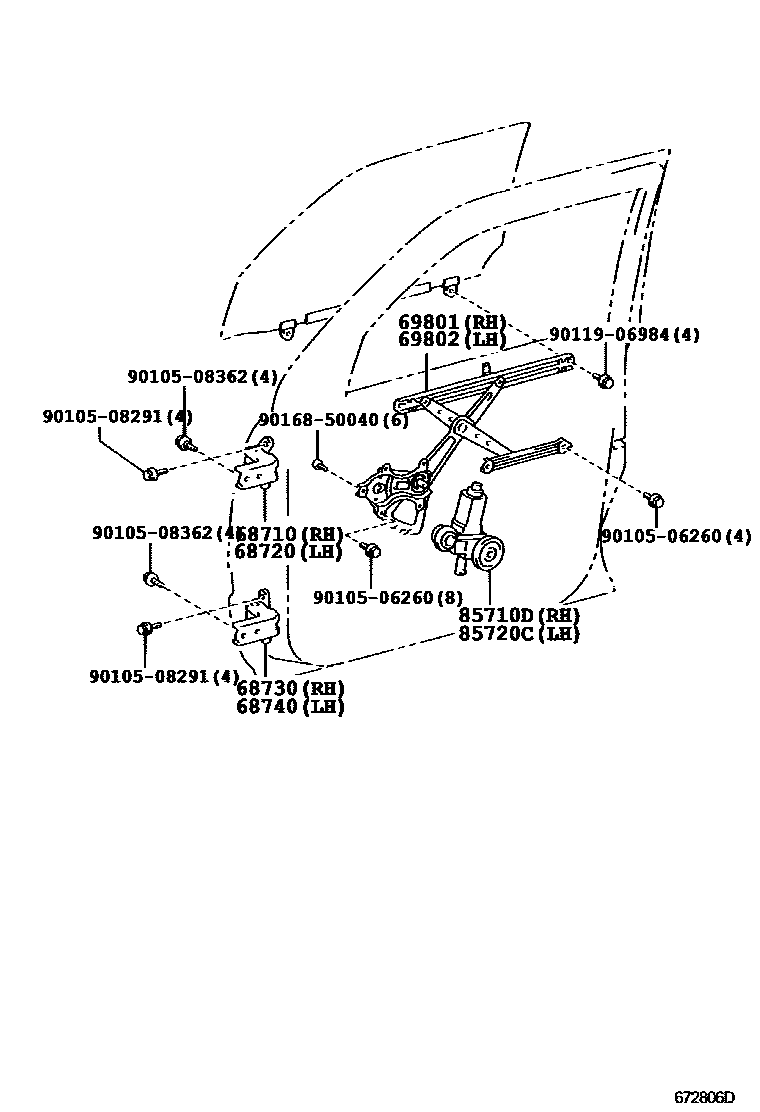

13 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota 4RUNNER

This section contains 13 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota 4RUNNER. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH.
