Toyota 4RUNNER — FRONT DOOR PANEL & GLASS

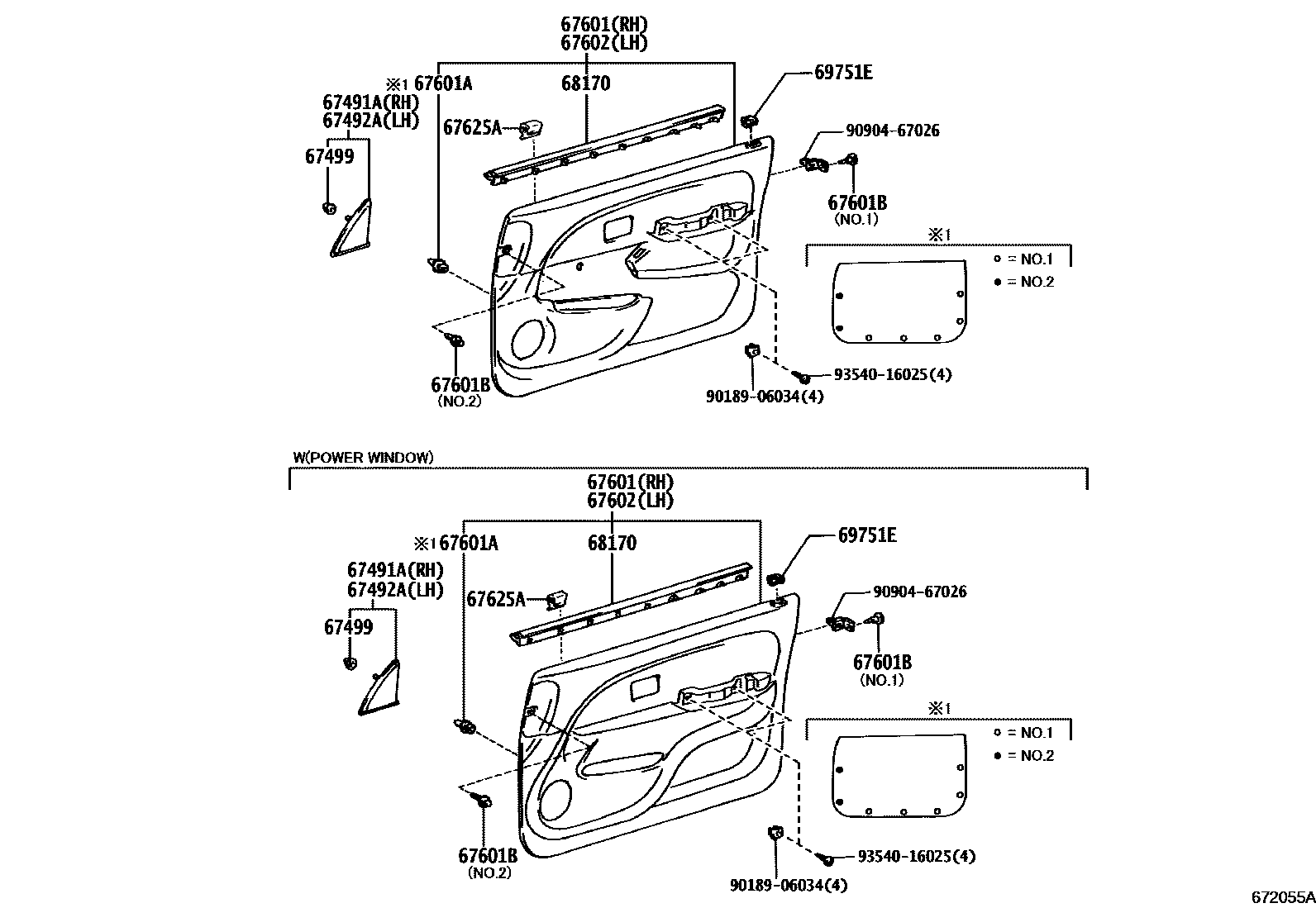

Parts diagram
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
main67491-35020-C0i199511
BLACK,TRIM1#,4#
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
main67492-35020-C0i199511
BLACK,TRIM1#,4#
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
main67499-89101×2i199511
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-3D120-B0i199708-199807
W(POWER WINDOW),MD.MOON MIST,TRIM1#
main67610-3D120-E0i199708-199807
W(POWER WINDOW),OAK,TRIM4#
main67610-3D130-B0i199708-199807
W(SPORT SEAT(FA**/FW**)),MD.MOON MIST,TRIM1#
main67610-3D130-E0i199708-199807
W(SPORT SEAT(FA**/FW**)),OAK,TRIM4#
main67610-3D260-E0i199807-200008
W(POWER WINDOW & LEATHER SPORT SEAT(LC**/LD**)),OAK,TRIM4#
main67610-3D260-E2i200008-200211
TRIM = TYPE A-*104 & W(POWER WINDOW & LEATHER SPORT SEAT(LC**/LD**)),OAK,TRIM4#
main67610-3D270-B0i199807-200008
W(POWER WINDOW),MD.MOON MIST,TRIM1#
main67610-3D270-E0i199807-200008
W(POWER WINDOW),OAK,TRIM4#
main67610-3D280-B0i199807-200008
W(POWER WINDOW & SPORT SEAT(FG**)),MD.MOON MIST,TRIM1#
main67610-3D280-E0i199807-200008
W(POWER WINDOW & SPORT SEAT(FG**)),OAK,TRIM4#
main67610-3D290-E0i199807-200008
W(POWER DOOR LOCK & LEATHER SPORT SEAT(LC**/LD**)),OAK,TRIM4#
main67610-3D290-E2i200008-200211
TRIM = TYPE A-*104 & W(POWER DOOR LOCK & LEATHER SPORT SEAT(LC**/LD**)),OAK,TRIM4#
main67610-3D300-B0i199807-200008
W(POWER DOOR LOCK & SPORT SEAT(FG**)),MD.MOON MIST,TRIM1#
main67610-3D300-E0i199807-200008
W(POWER DOOR LOCK & SPORT SEAT(FG**)),OAK,TRIM4#
main67610-3D310-B0i199906-200008
W(POWER DOOR LOCK),MD.MOON MIST,TRIM1#
main67610-3D310-E0i199807-199906
W(POWER DOOR LOCK),OAK,TRIM4#
main67610-3D320-B0i199807-199906
MD.MOON MIST,TRIM1#
main67610-3D320-B1i199906-200008
MD.MOON MIST,TRIM1#
main67610-3D320-E0i199807-199906
OAK,TRIM4#
main67610-3D320-E1i199906-200008
OAK,TRIM4#
main67610-3D380-B0i200008-200107
TRIM = TYPE B-*104 & W(POWER DOOR LOCK),CHARCOAL,TRIM1#
main67610-3D380-E0i200008-200107
TRIM = TYPE B-*104 & W(POWER DOOR LOCK),OAK,TRIM4#
main67610-3D381-B0i200107-200211
TRIM = TYPE B-*104 & W(POWER DOOR LOCK),CHARCOAL,TRIM1#
main67610-3D381-E0i200107-200211
TRIM = TYPE B-*104 & W(POWER DOOR LOCK),OAK,TRIM4#
main67610-3D400-B0i200008-200107
TRIM = TYPE B & W(POWER WINDOW),CHARCOAL,TRIM1#
main67610-3D400-E0i200008-200107
TRIM = TYPE B & W(POWER WINDOW),OAK,TRIM4#
main67610-3D401-B0i200107-200211
TRIM = TYPE B-*104 & W(POWER WINDOW),CHARCOAL,TRIM1#
main67610-3D401-E0i200107-200211
TRIM = TYPE B-*104 & W(POWER WINDOW),OAK,TRIM4#
main67610-3D460-B0i200008-200107
TRIM = TYPE B-*104,CHARCOAL,TRIM1#
main67610-3D460-E0i200008-200107
TRIM = TYPE B-*104,0AK,TRIM4#
main67610-3D461-B0i200107-200211
TRIM = TYPE B-*104,CHARCOAL,TRIM1#
main67610-3D461-E0i200107-200211
TRIM = TYPE B-*104,OAK,TRIM4#
main67650-35230-B0i199511-199708
W(POWER DOOR LOCK & POWER WINDOW & SPORT SEAT(YH**)),MD.MOON MIST,TRIM1#
main67650-35230-E0i199511-199708
W(POWER DOOR LOCK & POWER WINDOW & SPORT SEAT(YH**)),OAK,TRIM4#
main67650-35270-B0i199608-199807
MD.MOON MIST,TRIM1#
main67650-35270-E0i199608-199807
OAK,TRIM4#
main67650-35280-E0i199511-199807
W(POWER DOOR LOCK & POWER WINDOW & LEATHER SPORT SEAT(LH**/LK**)),OAK,TRIM4#
main67650-35310-B0i199511-199807
W(POWER DOOR LOCK),MD.MOON MIST,TRIM1#
main67650-35310-E0i199511-199807
W(POWER DOOR LOCK),OAK,TRIM4#
main67650-35320-B0i199511-199608
W(POWER WINDOW & ELECTROMAGNETIC LOCK),MD.MOON MIST,TRIM1#
main67650-35320-E0i199511-199608
W(POWER WINDOW & ELECTROMAGNETIC LOCK),OAK,TRIM4#
main67650-35330-B0i199511-199708
W(SPORT SEAT(YH**)),MD.MOON MIST,TRIM1#
main67650-35330-E0i199511-199708
W(SPORT SEAT(YH**)),OAK,TRIM4#
main67650-35340-E0i199511-199807
W(LEATHER SPORT SEAT(LH**/LK**)),OAK,TRIM4#
main67650-35530-E0i199608-199807
W(LEATHER SPORT SEAT(LH**)),OAK,TRIM4#
main67650-35530-E1i199807-200008
W(LEATHER SPORT SEAT(LD**)),OAK,TRIM4#
main67650-35530-E2i200008-200211
TRIM = TYPE A-*104,OAK,TRIM4#
67601ARETAINER(FOR FRONT DOOR TRIM BOARD)
main67771-12030×4i199607-200008
NO.2
main67771-12050×10i199602-199910
NO.1
main67771-22040×4i199602-199607
NO.2
main67771-28020×10i199910-200008
NO.1
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
main90467-07066-B4×2i199511-200008
MD.MOON MIST,TRIM1#,NO.1
main90467-07066-E0×2i199511
OAK,TRIM4#,NO.1
main90467-07066-P1×2i200008
DK.CHARCOAL,TRIM1#,NO.1
main90467-07085-B2×2i199511-200008
MD.MOON MIST,TRIM1#,NO.2
main90467-07085-B3×2i200008
DK.CHARCOAL,TRIM1#,NO.2
main90467-07085-E4×2i199511
OAK,TRIM4#,NO.2
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67050-35010-B0i199511-199608
W(POWER WINDOW & ELECTROMAGNETIC LOCK),MD.MOON MIST,TRIM1#
main67050-35010-E0i199511-199608
W(POWER WINDOW & ELECTROMAGNETIC LOCK),OAK,TRIM4#
main67050-35020-B0i199511-199708
W(POWER DOOR LOCK & POWER WINDOW & SPORT SEAT(YH**)),MD.MOON MIST,TRIM1#
main67050-35020-E0i199511-199708
W(POWER DOOR LOCK & POWER WINDOW & SPORT SEAT(YH**)),OAK,TRIM4#
main67050-35050-E0i199608-199807
W(LEATHER SPORT SEAT),OAK,TRIM4#
main67050-35050-E1i199807-200008
W(LEATHER SPORT SEAT),OAK,TRIM4#
main67050-35050-E2i200008-200211
TRIM = TYPE A-*104,OAK,TRIM4#
main67050-35530-B0i199708-199807
W(SPORT SEAT(FA**/FW**)),MD.MOON MIST,TRIM1#
main67050-35530-E0i199708-199807
W(SPORT SEAT(FA**/FW**)),OAK,TRIM4#
main67050-35540-B1i199708-199807
W(SPORT SEAT(YH**)),MD.MOON MIST,TRIM1#
main67050-35540-E1i199708-199807
W(SPORT SEAT(YH**)),OAK,TRIM4#
main67620-3D210-B0i199511-199608
MD.MOON MIST,TRIM1#
main67620-3D210-E0i199608-199807
OAK,TRIM4#
main67620-3D220-E0i199511-199807
W(POWER DOOR LOCK & POWER WINDOW & LEATHER SPORT SEAT(LH**/LK**)),OAK,TRIM4#
main67620-3D250-B0i199511-199708
W(SPORT SEAT(YH**)),MD.MOON MIST,TRIM1#
main67620-3D250-E0i199511-199708
W(SPORT SEAT(YH**)),OAK,TRIM4#
main67620-3D260-E0i199511-199807
W(LEATHER SPORT SEAT(LH**/LK**)),OAK,TRIM4#
main67620-3D280-B0i200008-200107
TRIM = TYPE B-*104 & W(POWER DOOR LOCK),CHARCOAL,TRIM1#
main67620-3D280-E0i200008-200107
TRIM = TYPE B-*104 & W(POWER DOOR LOCK),OAK,TRIM4#
main67620-3D281-B0i200107-200211
TRIM = TYPE B-*104 & W(POWER DOOR LOCK),CHARCOAL,TRIM1#
main67620-3D281-E0i200107-200211
TRIM = TYPE B-*104 & W(POWER DOOR LOCK),OAK,TRIM4#
main67620-3D290-B0i199511-199807
W(POWER DOOR LOCK),MD.MOON MIST,TRIM1#
main67620-3D290-E0i199511-199807
W(POWER DOOR LOCK),OAK,TRIM4#
main67620-3D310-B0i200008-200107
TRIM = TYPE B-*104 & W(POWER WINDOW),CHARCOAL,TRIM1#
main67620-3D310-E0i200008-200107
TRIM = TYPE B-*104 & W(POWER WINDOW),OAK,TRIM4#
main67620-3D311-B0i200107-200211
TRIM = TYPE B-*104 & W(POWER WINDOW),CHARCOAL,TRIM1#
main67620-3D311-E0i200107-200211
TRIM = TYPE B-*104 & W(POWER WINDOW),OAK,TRIM4#
main67620-3D360-B0i200008-200107
TRIM = TYPE B-*104,CHARCOAL,TRIM1#
main67620-3D360-E0i200008-200107
TRIM = TYPE B-*104,OAK,TRIM4#
main67620-3D361-B0i200107-200211
TRIM = TYPE B-*104,CHARCOAL,TRIM1#
main67620-3D361-E0i200107-200211
TRIM = TYPE B-*104,OAK,TRIM4#
main67660-35170-E0i199807-200008
W(POWER WINDOW & LEATHER SPORT SEAT(LC**/LD**)),OAK,TRIM4#
main67660-35170-E2i200008-200211
TRIM = TYPE A-*104 & W(POWER WINDOW),OAK,TRIM4#
main67660-35180-B0i199807-200008
W(POWER WINDOW),MD.MOON MIST,TRIM1#
main67660-35180-E0i199807-200008
W(POWER WINDOW),OAK,TRIM4#
main67660-35190-B0i199807-200008
W(POWER WINDOW & SPORT SEAT(FG**)),MD.MOON MIST,TRIM1#
main67660-35190-E0i199807-200008
W(POWER WINDOW & SPORT SEAT(FG**)),OAK,TRIM4#
main67660-35200-E0i199807-200008
W(POWER DOOR LOCK & LEATHER SPORT SEAT(LC**/LD**)),OAK,TRIM4#
main67660-35200-E2i200008-200211
TRIM = TYPE A -*104 & W(POWER DOOR LOCK),OAK,TRIM4#
main67660-35210-B0i199807-200008
W(POWER DOOR LOCK & SPORT SEAT(FG**)),MD.MOON MIST,TRIM1#
main67660-35210-E0i199807-200008
W(POWER DOOR LOCK & SPORT SEAT(FG**)),OAK,TRIM4#
main67660-35220-B0i199906-200008
W(POWER DOOR LOCK),MD.MOON MIST,TRIM1#
main67660-35220-E0i199906-200008
W(POWER DOOR LOCK),OAK,TRIM4#
main67660-35230-B0i199807-199906
MD.MOON MIST,TRIM1#
main67660-35230-B1i199906-200008
MD.MOON MIST,TRIM1#
main67660-35230-E0i199807-199906
OAK,TRIM4#
main67660-35230-E1i199906-200008
OAK,TRIM4#
67625ABRACKET, FRONT DOOR TRIM, NO.1
main67625-35010×2i199603-200008
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
main68171-35030×2i199511
69751EHOLDER, FRONT DOOR LOCK CONTROL KNOB
main69751-35030-B0×2i199511-200008
MD.MOON MIST,TRIM1#
main69751-35030-B1×2i200008
DK.CHARCOAL,TRIM1#
main69751-35030-E0×2i199511
OAK,TRIM4#
9018906034
main90189-06034
9090467026
main90904-67026
9354016025
main93540-16025

13 parts on this diagram · 3 diagrams in section

FRONT DOOR PANEL & GLASS for Toyota 4RUNNER

This section contains 54 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota 4RUNNER. Key components include: WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH, WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH, PANEL SUB-ASSY, FRONT DOOR, RH, PANEL SUB-ASSY, FRONT DOOR, LH, PANEL, FRONT DOOR, OUTER RH.
