Toyota 4RUNNER — FRONT DOOR LOCK & HANDLE

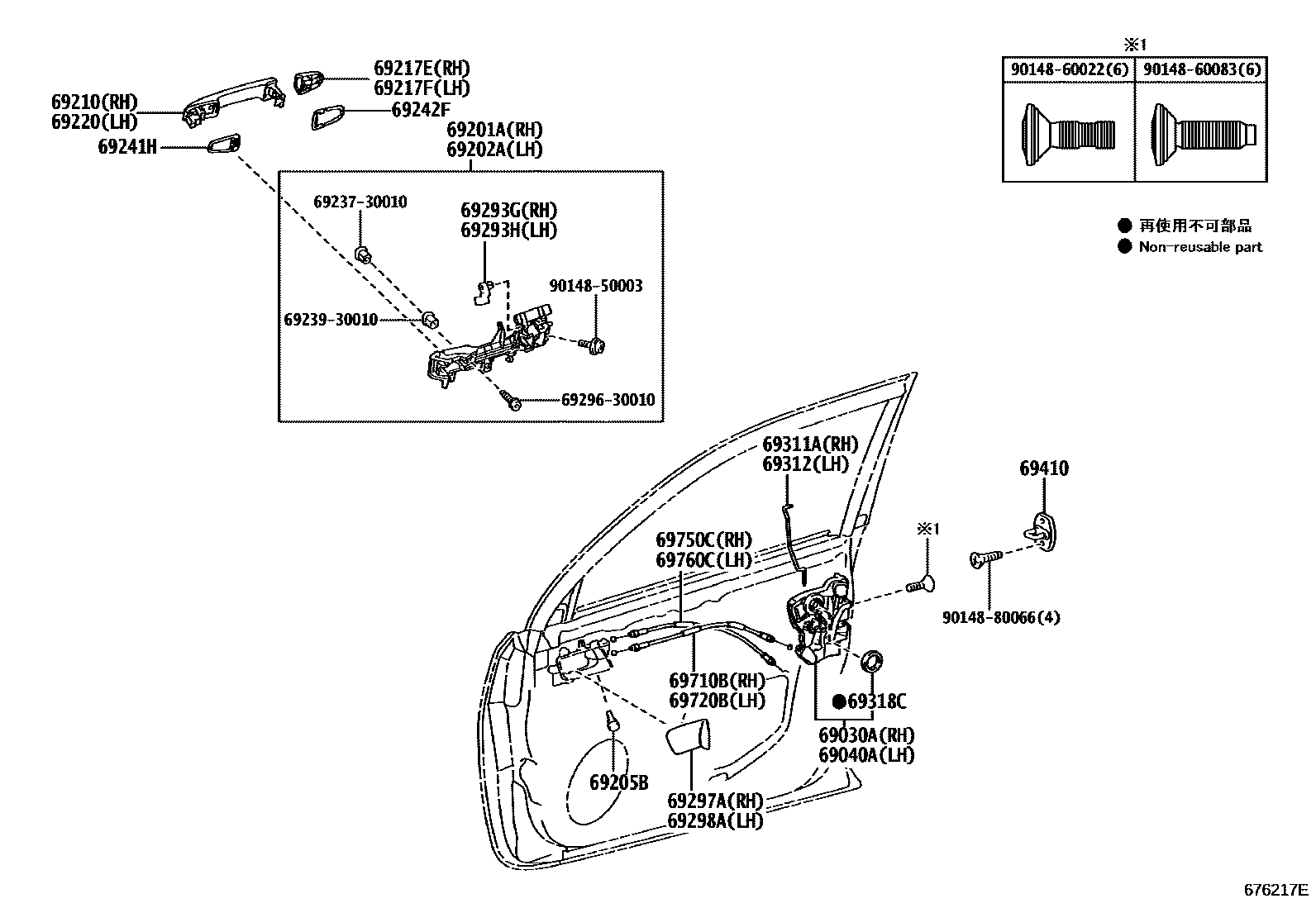

Parts diagram
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
main69030-42221i200908-201308
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
main69040-42241i200908-201308
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-60050i200908-201308
main69201-60090i201908-202101
main69201-60091i202102
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-60020i200908-201308
main69202-60030i201908-202101
main69202-60031i202102
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04014×2i201101-201308
main90541-04018×2i200908-201101
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-60260-A0i202208
SUPER WHITE 2,040
main69210-60260-B0i202208
SILVER ME.,1F7
main69210-60260-B1i202208-202310
GRAY ME.,1G3
main69210-60260-B3i202310
DK.GRAY,1L7
main69210-60260-C1i202208
ATTITUDE BLACK MC.,218
main69210-60260-D1i202208
RED M.M.,3R3
main69210-60260-J1i202208
DK.BLUE MC.,8S6
main69211-60070-A0i201308-201908
SUPER WHITE 2,040
main69211-60070-A1i201111-201308
WHITE PEARL CS.,070
main69211-60070-B0i201908-202208
SILVER ME.,1F7
main69211-60070-B1i201308-201908
GRAY ME.,1G3
main69211-60070-C0i201308-201408
BLACK,202
main69211-60070-C1i201908-202208
ATTITUDE BLACK MC.,218
main69211-60070-D1i200908-201308
DK. RED M.M.,3Q3
main69211-60070-D3i201308-201908
RED M.M.,3R3
main69211-60070-J2i201308-201908
DK.BLUE MC.,8S6
main69210-35180-B0i201908-202005
LIMITED PACKAGE,SILVER ME.
main69210-35200-B0i202208
LIMITED PACKAGE,SILVER ME.
main69210-35220-B0i202006-202208
LIMITED PACKAGE,SILVER ME.
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
main69250-60030-A0i201308-201908
SUPER WHITE 2,040
main69250-60030-A1i201111-201308
WHITE PEARL CS.,070
main69250-60030-B0i201308-201908
SILVER ME.,1F7
main69250-60030-B1i200908-201308
GRAY ME.,1G3
main69250-60030-B4i202310
DK.GRAY,1L7
main69250-60030-C0i200908-201308
BLACK,202
main69250-60030-C2i201408-201908
ATTITUDE BLACK MC.,218
main69250-60030-D1i200908-201308
DK. RED M.M.,3Q3
main69250-60030-D2i201908
RED M.M.,3R3
main69250-60030-J2i201308-201908
DK.BLUE MC.,8S6
main69250-35020i201308-201908
*CR,LIMITED PACKAGE
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
main69217-60150-A0i201308-201908
SUPER WHITE 2,040
main69217-60150-A1i201111-201308
WHITE PEARL CS.,070
main69217-60150-B0i201308-201908
SILVER ME.,1F7
main69217-60150-B1i200908-201308
GRAY ME.,1G3
main69217-60150-B4i202310
DK.GRAY,1L7
main69217-60150-C0i200908-201308
BLACK,202
main69217-60150-C2i201408-201908
ATTITUDE BLACK MC.,218
main69217-60150-D1i200908-201308
DK. RED M.M.,3Q3
main69217-60150-D2i201908
RED M.M.,3R3
main69217-60150-J2i201308-201908
DK.BLUE MC.,8S6
main69217-35050i200908-201308
*CR,LIMITED PACKAGE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69210-60260-A0i202208
SUPER WHITE 2,040
main69210-60260-B0i202208
SILVER ME.,1F7
main69210-60260-B1i202208-202310
GRAY ME.,1G3
main69210-60260-B3i202310
DK.GRAY,1L7
main69210-60260-C1i202208
ATTITUDE BLACK MC.,218
main69210-60260-D1i202208
RED M.M.,3R3
main69210-60260-J1i202208
DK.BLUE MC.,8S6
main69211-60070-A0i201308-201908
SUPER WHITE 2,040
main69211-60070-A1i201111-201308
WHITE PEARL CS.,070
main69211-60070-B0i201908-202208
SILVER ME.,1F7
main69211-60070-B1i200908-201308
GRAY ME.,1G3
main69211-60070-C0i201308-201408
BLACK,202
main69211-60070-C1i201908-202208
ATTITUDE BLACK MC.,218
main69211-60070-D1i200908-201308
DK. RED M.M.,3Q3
main69211-60070-D3i201908-202208
RED M.M.,3R3
main69211-60070-J2i201908-202208
DK.BLUE MC.,8S6
main69210-35180-B0i200908-201308
LIMITED PACKAGE,SILVER ME.
main69210-35200-B0i202208
LIMITED PACKAGE,SILVER ME.
main69210-35220-B0i202006-202208
LIMITED PACKAGE,SILVER ME.
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-60060×2i200908-201308
69242FPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69242-60080×2i200908-201308
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
main69293-12030i200908-201308
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
main69293-12040i200908-201308
69297ABEZEL, DOOR INSIDE HANDLE, NO.2 RH
main69297-35010i200908-201308
69298ABEZEL, DOOR INSIDE HANDLE, NO.2 LH
main69298-35010i200908-201308
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-35070i200908-201308
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-35070i200908-201308
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010×2i200908-201308
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-33010×2i200908-201308
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-60030i200908-201308
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-60030i200908-201308
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-60040i200908-201308
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-60040i200908-201308
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6923930010PIN, BACK DOOR OUTSIDE HANDLE
main69239-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860022
main90148-60022
9014860083
main90148-60083
9014880066
main90148-80066

30 parts on this diagram · 1 diagram in section
