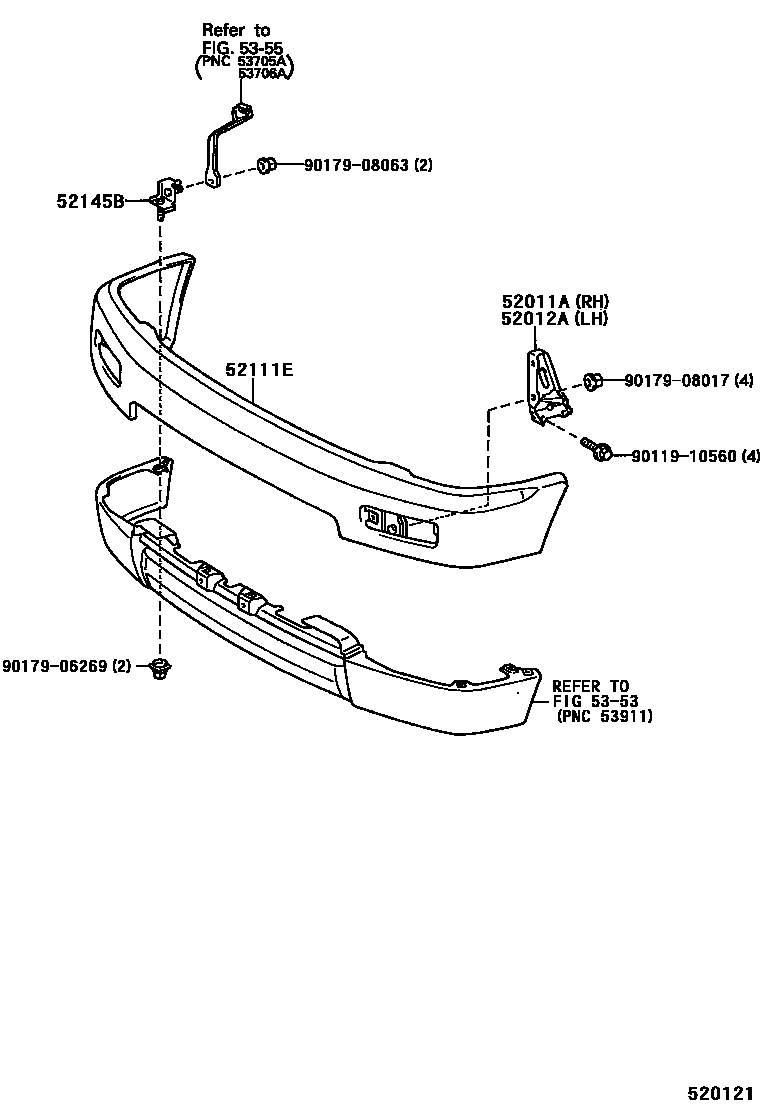

Toyota 4RUNNER — FRONT BUMPER & BUMPER STAY

Parts diagram

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-35070i199807

main52141-35050i199511-199807

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-35070i199807

main52142-35050i199511-199807

52111EBAR, FRONT BUMPER

main52101-35290i199511-199807

NO PAINT REQ.

main52101-35300i199511-199807

PLATED

main52101-35530i199807

PLATED

main52101-35590i200008

PLATED,W(OVER FENDER)

main52101-35920i200008

PAINT REQ.,W(OVER FENDER)

52145BBRACKET, FRONT BUMPER SIDE MOUNTING

main52145-35030i199511-199807

RH

main52145-35040i199807

RH

main52146-35030i199511-199807

LH

main52146-35040i199807

LH

5353HOOD & FRONT FENDER

→ Go to FIG 53-53

9011910560

main90119-10560

9017906269

main90179-06269

9017908017

main90179-08017

9017908063

main90179-08063

9 parts on this diagram · 2 diagrams in section

FRONT BUMPER & BUMPER STAY for Toyota 4RUNNER

This section contains 25 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota 4RUNNER. Key components include: ARM SUB-ASSY, FRONT BUMPER, RH, ARM SUB-ASSY, FRONT BUMPER, LH, REINFORCEMENT SUB-ASSY, FRONT BUMPER, BAR, FRONT BUMPER, SUPPORT, FRONT BUMPER SIDE, RH.
