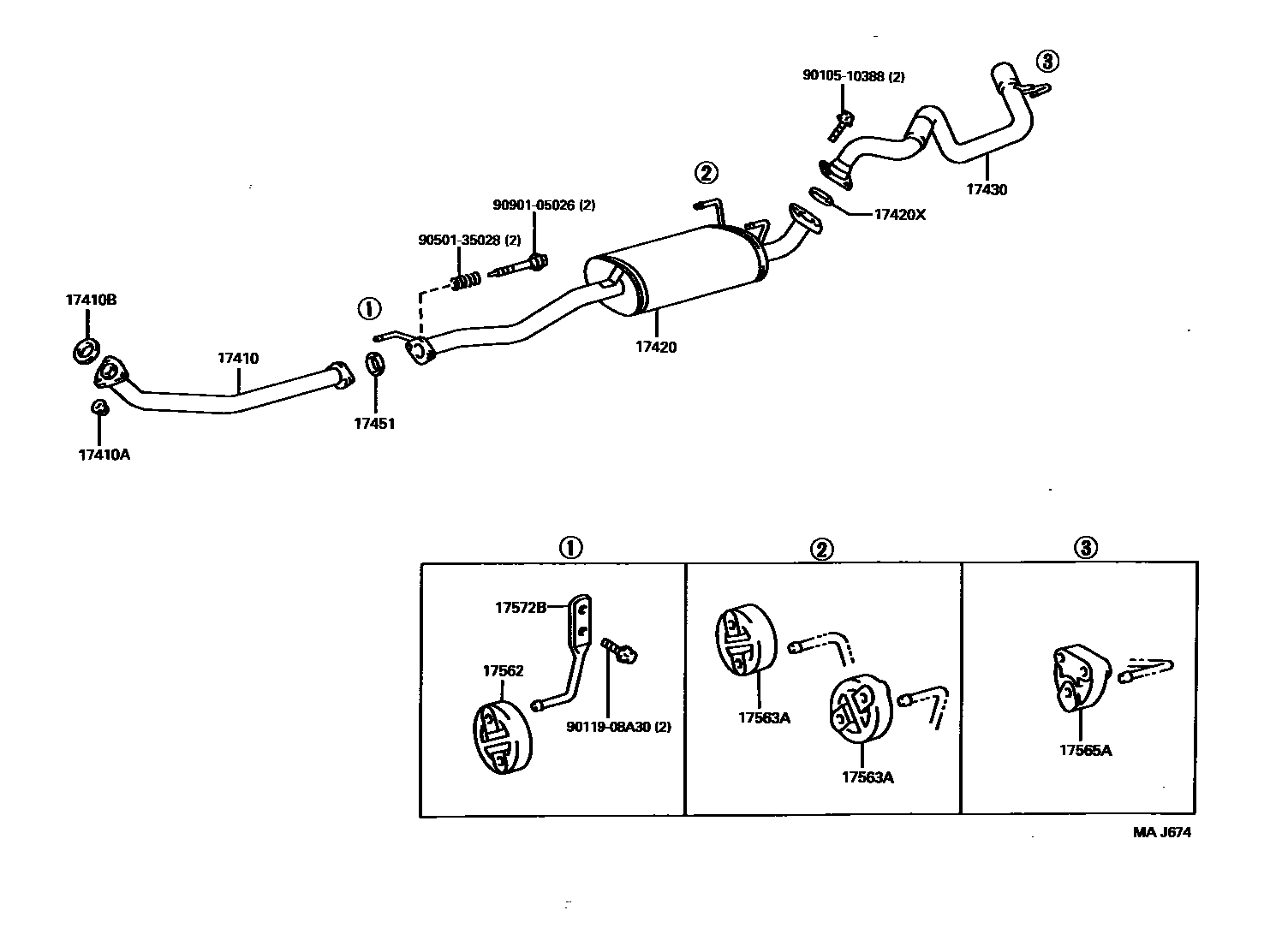

Toyota 4RUNNER — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17562SUPPORT, EXHAUST PIPE, NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
9010510388
main90105-10388
9011908A30
main90119-08A30
9050135028
main90501-35028
9090105026
main90901-05026
15 parts on this diagram · 3 diagrams in section
EXHAUST PIPE for Toyota 4RUNNER
This section contains 26 genuine Toyota parts for the EXHAUST PIPE system of the Toyota 4RUNNER. Key components include: PIPE ASSY, EXHAUST, FRONT, NUT, EXHAUST PIPE SET STUD BOLT, GASKET, EXHAUST PIPE, PIPE ASSY, EXHAUST, CENTER, GASKET, EXHAUST PIPE, CENTER.
