Toyota 4RUNNER — EXHAUST GAS RECIRCULATION SYSTEM

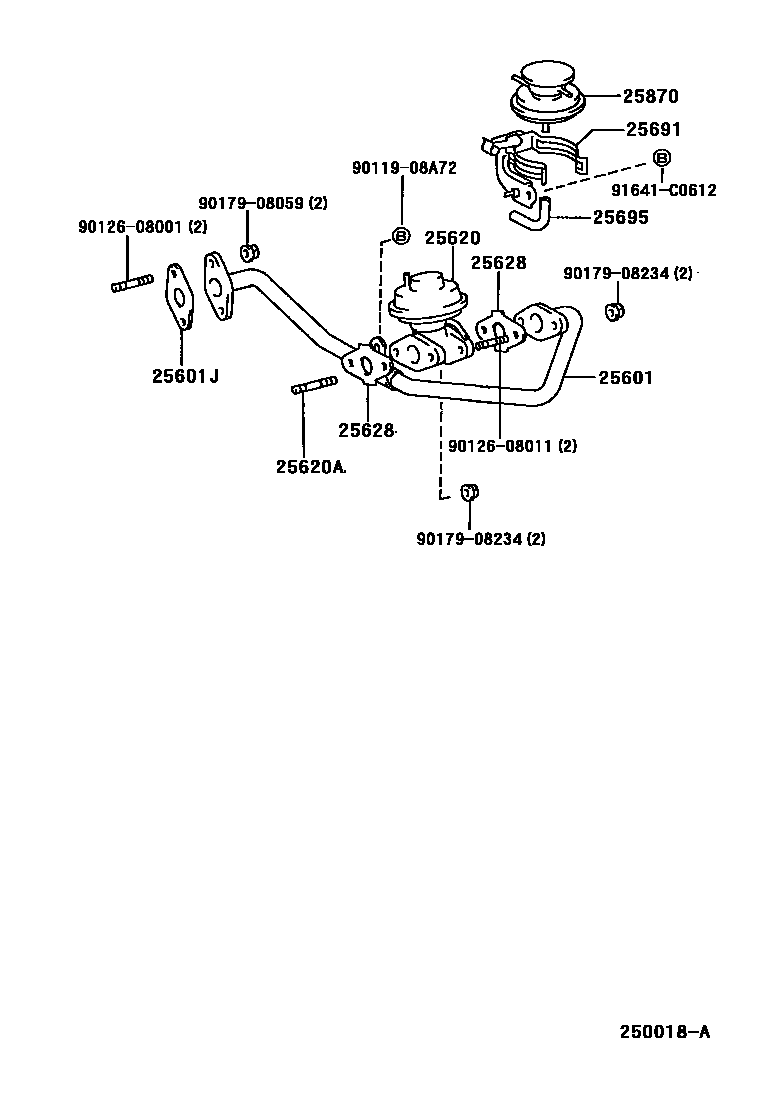

Parts diagram

25601PIPE SUB-ASSY, EGR, NO.1

main25611-75020i199511-200005

main25611-75021i200005

25601JGASKET(FOR EGR PIPE, NO.1)

main25634-75010i199511

25620VALVE ASSY, EGR

main25620-75040i199511

25620ABOLT, STUD(FOR EGR VALVE)

main92112-B0818×4i199511-199807

25628GASKET, EGR INLET

main25628-75010×2i199511

25691BRACKET, EGR VACUUM MODULATOR

main25691-75031i199511

25695HOSE, EGR VACUUM MODULATOR

main25695-75020i199511

25870VALVE ASSY, EGR VACUUM MODULATOR

main25870-75040i199511

9011908A72

main90119-08A72

9012608001

main90126-08001

9012608011

main90126-08011

9017908059

main90179-08059

9017908234

main90179-08234

91641C0612

main91641-C0612

14 parts on this diagram · 1 diagram in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota 4RUNNER

This section contains 14 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota 4RUNNER. Key components include: PIPE SUB-ASSY, EGR, NO.1, GASKET(FOR EGR PIPE, NO.1), VALVE ASSY, EGR, BOLT, STUD(FOR EGR VALVE), GASKET, EGR INLET.
