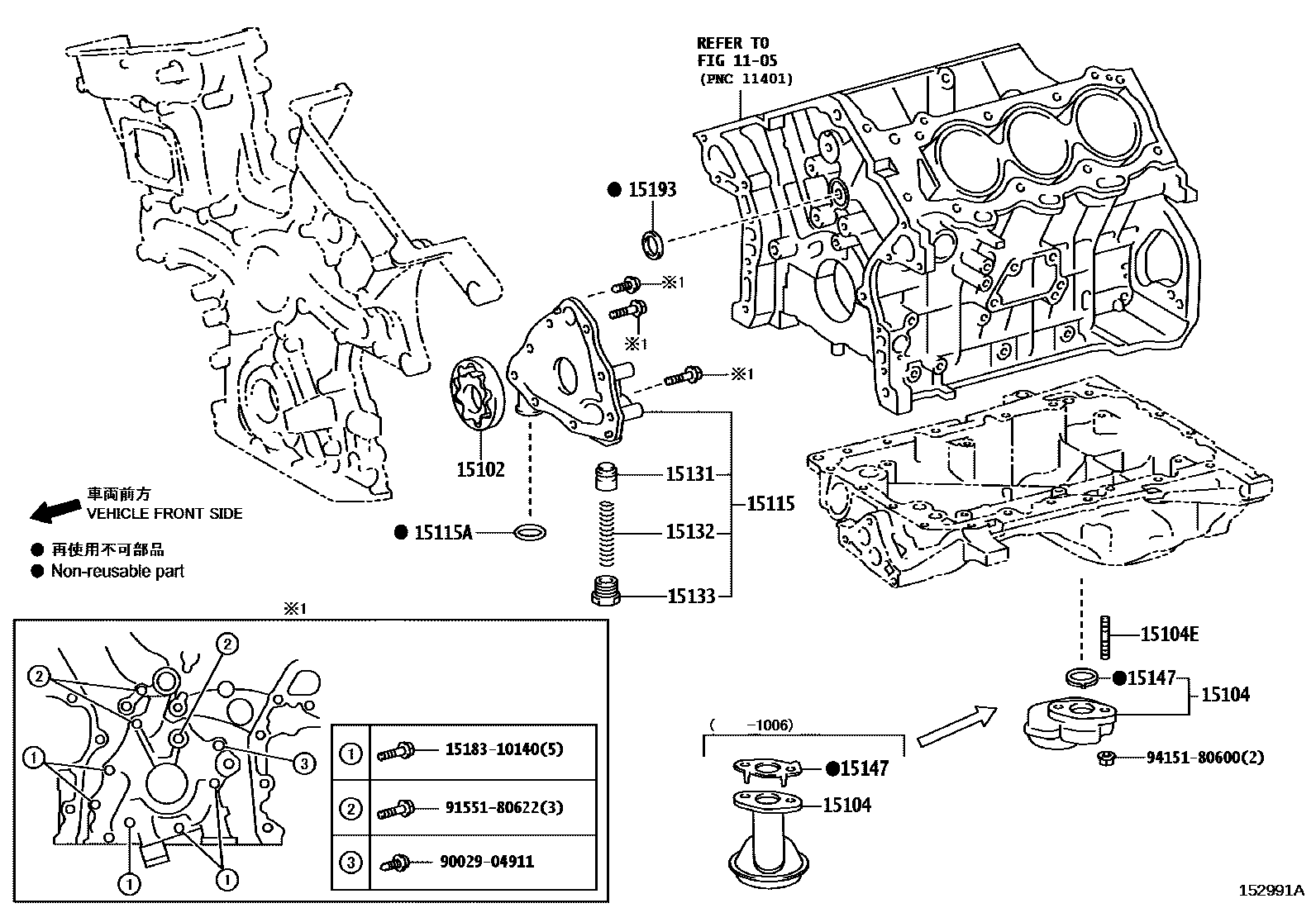

Toyota 4RUNNER — ENGINE OIL PUMP

1105CYLINDER BLOCK

→ Go to FIG 11-05

15102ROTOR SET, OIL PUMP

main15103-31080i200908-201308

15104STRAINER SUB-ASSY, OIL

main15104-31130i200908-201006

main15104-31140i201006-201308

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06029×2i200908-201308

15115COVER, OIL PUMP

main15115-31080i200908-201308

15115ARING, O(FOR OIL PUMP COVER)

main96722-24030i200908-201308

15131VALVE, OIL PUMP RELIEF

main15131-17010i200908-201308

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46020i200908-201308

15133PLUG, OIL PUMP RELIEF VALVE

main15133-28020i200908-201308

15147GASKET, OIL STRAINER

main15147-31070i201308-201908

main15147-46010i200908-201006

15193GASKET, OIL PUMP

main15193-38010i200908-201308

1518310140BOLT, UNION(FOR OIL PUMP)

main15183-10140

9002904911

main90029-04911

9155180622

main91551-80622

9415180600

main94151-80600

15 parts on this diagram · 1 diagram in section

ENGINE OIL PUMP for Toyota 4RUNNER

This section contains 15 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota 4RUNNER. Key components include: CYLINDER BLOCK, ROTOR SET, OIL PUMP, STRAINER SUB-ASSY, OIL, BOLT, STUD(FOR OIL STRAINER), COVER, OIL PUMP.
