Toyota 4RUNNER — ELECTRONIC CONTROLED DIESEL (ECD)

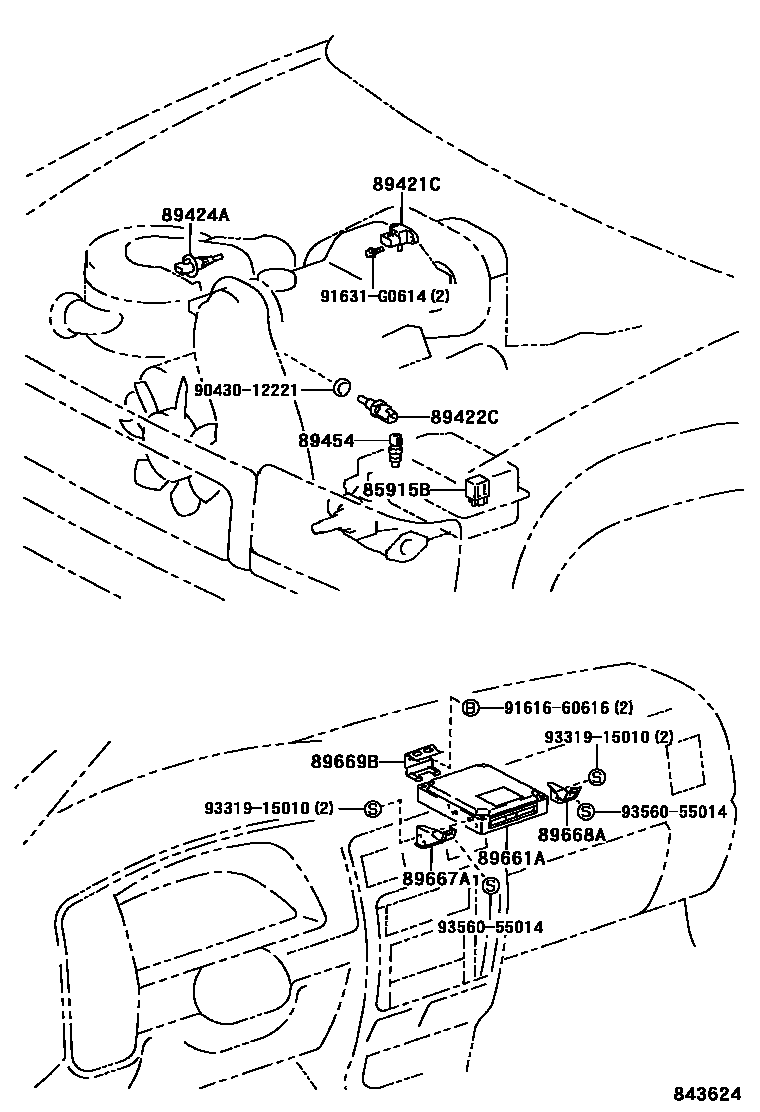

Parts diagram

85915BRELAY, MAIN (FOR DIESEL TURBO)

main90987-02012i200008

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-60030i200008

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-35010i200008

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-12010i200008

89454SENSOR, FUEL TEMPERATURE

main89454-60010i200008

89661ACOMPUTER, ENGINE CONTROL

main89666-35190i200008

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-35080i200008

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-35120i200008

89669BBRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-35060i200008

9043012221

main90430-12221

9161660616

main91616-60616

91631G0614

main91631-G0614

9331915010

main93319-15010

9356055014

main93560-55014

14 parts on this diagram · 1 diagram in section

ELECTRONIC CONTROLED DIESEL (ECD) for Toyota 4RUNNER

This section contains 14 genuine Toyota parts for the ELECTRONIC CONTROLED DIESEL (ECD) system of the Toyota 4RUNNER. Key components include: RELAY, MAIN (FOR DIESEL TURBO), SENSOR, TURBO PRESSURE (FOR DIESEL TURBO), SENSOR, DIESEL ENGINE WATER TEMPERATURE, SENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO), SENSOR, FUEL TEMPERATURE.
