Toyota 4RUNNER — CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
BLACK,TRIM1#,4#
55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP
58804APANEL SUB-ASSY, CONSOLE, UPPER
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
58811EBOX, CONSOLE, UPPER
58822APANEL, CONSOLE, UPPER REAR
58827AGARNISH, CONSOLE BOX POCKET
58832AGARNISH, CONSOLE UPPER PANEL, REAR
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
STONE,TRIM1#
FAWN,TRIM4#
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
STONE,TRIM1#
FAWN,TRIM4#
58836BPAD, CONSOLE BOX SILENCER, NO.1
58837APAD, CONSOLE BOX SILENCER, NO.2
58839ACOVER, CONSOLE BOX HOLE
58849COVER, CONSOLE BOX HOLE, NO.2
58860AREGISTER ASSY, CONSOLE BOX
58863BSUPPORT, CONSOLE BOX, NO.3
58865ALENS, FRONT CONSOLE BOX, NO.1
58903APANEL SUB-ASSY, CONSOLE REAR END
DK.GRAY,TRIM1#,4#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#,4#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58910CBOX ASSY, CONSOLE, REAR
STONE,TRIM1#
FAWN,TRIM4#
STONE,TRIM1#
FAWN,TRIM4#
STONE,TRIM1#
FAWN,TRIM4#
58911DBOX, REAR CONSOLE, UPPER
STONE,TRIM1#
FAWN,TRIM4#
58912BBOX, REAR CONSOLE, LOWER
58917MAT, BOX BOTTOM, NO.2
58991CBRACKET, CONSOLE BOX MOUNTING, FRONT
58993BRACKET, CONSOLE BOX MOUNTING, REAR
8121INTERIOR LAMP
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
9011906341
main90119-06341
9046710203
main90467-10203
9046712080
main90467-12080
9046805135
main90468-05135
91631B0610
main91631-B0610
91631B0625
main91631-B0625
9356855012
main93568-55012

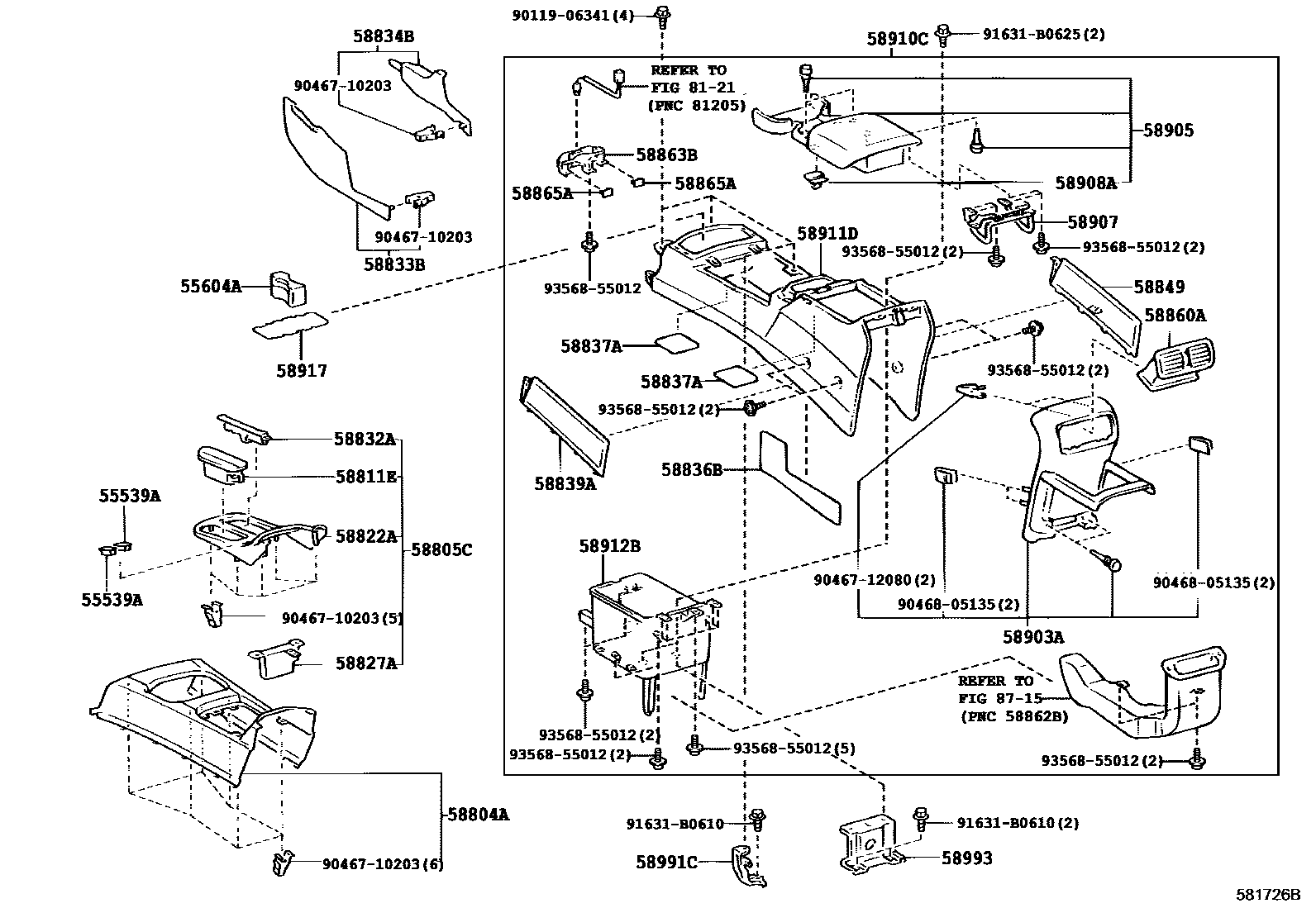

36 parts on this diagram · 1 diagram in section
CONSOLE BOX & BRACKET for Toyota 4RUNNER
This section contains 36 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota 4RUNNER. Key components include: COVER, SPARE SWITCH HOLE, HOLDER SUB-ASSY, INSTRUMENT PANEL CUP, PANEL SUB-ASSY, CONSOLE, UPPER, PANEL SUB-ASSY, CONSOLE, UPPER REAR, BOX, CONSOLE, UPPER.
