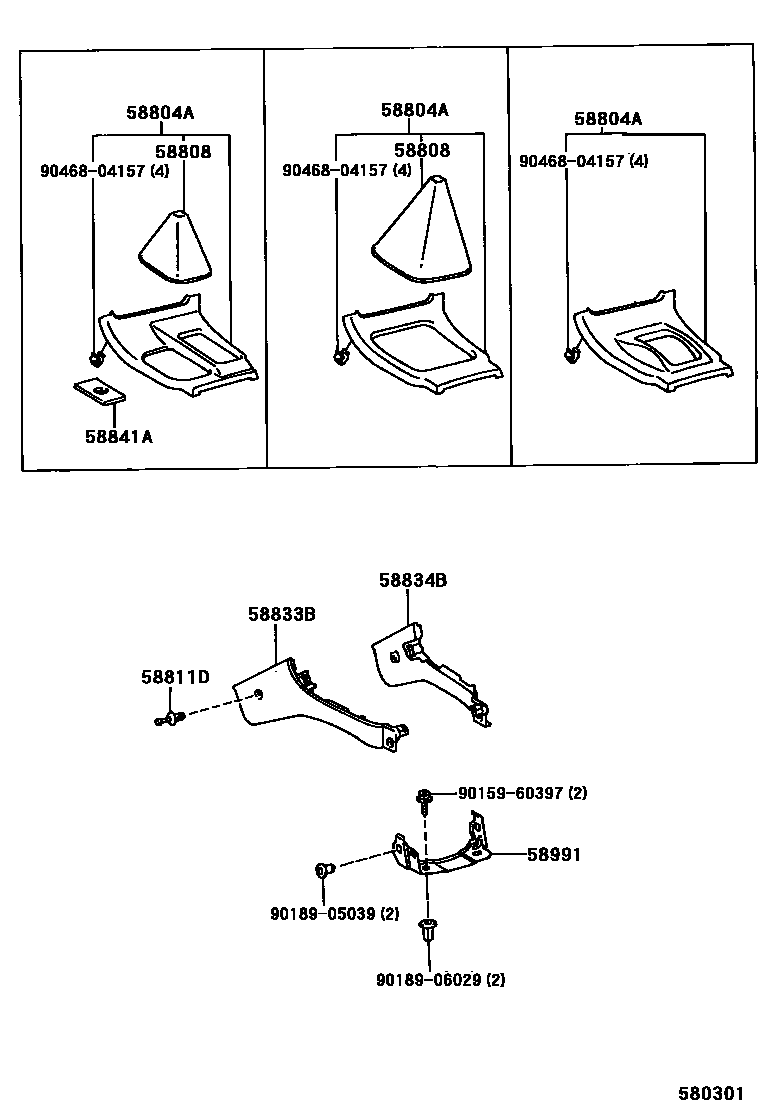

Toyota 4RUNNER — CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-35020iVZN180200008

WOOD GRAIN

main58804-35060iKZN185,RZN185199511

main58804-35070iVZN185199511

main58804-35080iRZN180200008

main58804-35090iVZN180200008

main58804-35210iKZN185200008

WOOD GRAIN

main58804-35280iVZN185200008

WOOD GRAIN

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-35110iRZN180200008

main58808-35140iKZN185,RZN185199511

main58808-35170iVZN185199511

58811DCLIP(FOR CONSOLE BOX)

main90467-07041-B5×2iKZN185,RZN185,VZN185199511-200008

MD.MOON MIST,TRIM1#

main90467-07041-B7×2iKZN185,RZN18#,VZN18#200008

DK.CHARCOAL,TRIM1#

main90467-07041-E0×2iKZN185,RZN18#,VZN18#199511

OAK,TRIM4#

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58833-35010-B0iKZN185,RZN185,VZN185199511-200008

MD.MOON MIST,TRIM1#

main58833-35010-B1iKZN185,RZN18#,VZN18#200008

DK.CHARCOAL,TRIM1#

main58833-35010-E0iKZN185,RZN18#,VZN18#199511

OAK,TRIM4#

58834BGARNISH, CONSOLE UPPER PANEL, NO.2

main58834-35010-B0iKZN185,RZN185,VZN185199511-200008

MD.MOON MIST,TRIM1#

main58834-35010-B1iKZN185,RZN18#,VZN18#200008

DK.CHARCOAL,TRIM1#

main58834-35010-E0iKZN185,RZN18#,VZN18#199511

OAK,TRIM4#

58841ACOVER, SHIFTING HOLE

main58841-35010iVZN185199511

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-35030iKZN185,RZN18#,VZN180199511

9015960397

main90159-60397

9018905039

main90189-05039

9018906029

main90189-06029

9046804157

main90468-04157

11 parts on this diagram · 3 diagrams in section
