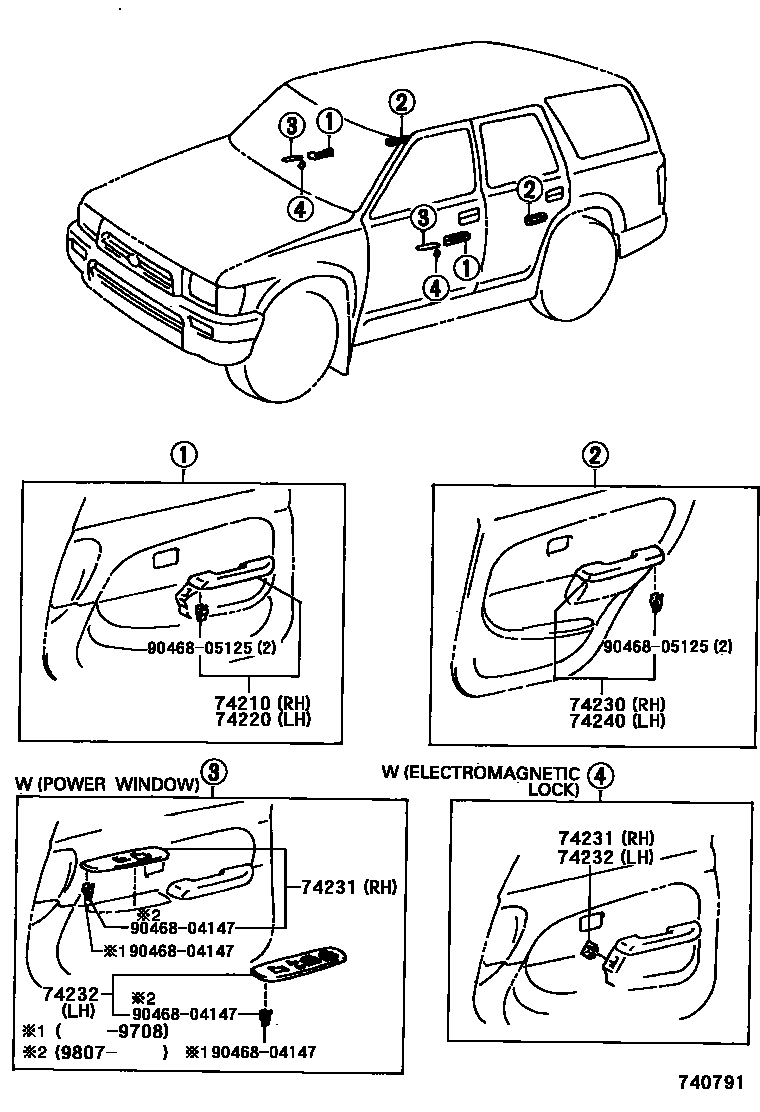

Toyota 4RUNNER — ARMREST & VISOR

0001 1ARMREST 0002 1VISOR

74210ARMREST ASSY, FRONT, RH

main74210-35020-B0iKZN185,RZN185,VZN185199511-199807

MOONMIST,TRIM1#

main74210-35020-E0iKZN185,RZN185,VZN185199511-199807

OAK,TRIM4#

main74210-35030-B2iVZN185199511-199708

SPORT SEAT(YH**),MEDIUM MOONMIST,TRIM1#

main74210-35030-E1iVZN185199511-199708

SPORT SEAT(YH**),MEDIUM OAK,TRIM4#

main74210-35050-E0iKZN185,VZN185..EFI,TBO199511

LEATHER SPORT SEAT(LC**/LD**/LH**/LK**),MD.OAK,TRIM4#

main74210-35080-B1iKZN185,RZN185,VZN185199807-200008

MD.MOON MIST,TRIM1#

main74210-35080-E1iKZN185,RZN185,VZN185199807-200008

OAK,TRIM4#

main74210-35140-B1iVZN185199708-200008

SPORT SEAT(FG**/YH**),MEDIUM MOONMIST,TRIM1#

main74210-35140-E1iVZN185199708-200008

SPORT SEAT(FG**/YH**),MEDIUM OAK,TRIM4#

main74210-35180-B0iKZN185,RZN18#200008-200107

MEDIUM CHARCOAL,TRIM1#

main74210-35180-E0iKZN185,RZN18#200008-200107

SPORT SEAT(FH**),MEDIUM OAK,TRIM4#

main74210-35181-B2iKZN185,RZN18#,VZN18#200107

CHARCOAL,TRIM1#

main74210-35181-E1iKZN185,RZN18#,VZN18#200107

OAK,TRIM4#

74220ARMREST ASSY, FRONT, LH

main74220-35020-B0iKZN185,RZN185,VZN185199511-199807

MOONMIST,TRIM1#

main74220-35020-E0iKZN185,RZN185,VZN185199511-199807

OAK,TRIM4#

main74220-35030-B2iVZN185199511-199708

SPORT SEAT(YH**),MEDIUM MOONMIST,TRIM1#

main74220-35030-E1iVZN185199511-199708

SPORT SEAT(YH**),MEDIUM OAK,TRIM4#

main74220-35050-E0iKZN185,VZN185..EFI,TBO199511

LEATHER SPORT SEAT(LC**/LD**/LH**/LK**),MD.OAK,TRIM4#

main74220-35080-B1iKZN185,RZN185,VZN185199807-200008

MD.MOON MIST,TRIM1#

main74220-35080-E1iKZN185,RZN185,VZN185199807-200008

OAK,TRIM4#

main74220-35140-B1iVZN185199708-200008

SPORT SEAT(FG**/YH**),MEDIUM MOONMIST,TRIM1#

main74220-35140-E1iVZN185199708-200008

SPORT SEAT(FG**/YH**),MEDIUM OAK,TRIM4#

main74220-35180-B0iKZN185,RZN18#200008-200107

MEDIUM CHARCOAL,TRIM1#

main74220-35180-E0iKZN185,RZN18#200008-200107

SPORT SEAT(FH**),MEDIUM OAK,TRIM4#

main74220-35181-B2iKZN185,RZN18#,VZN18#200107

CHARCOAL,TRIM1#

main74220-35181-E1iKZN185,RZN18#,VZN18#200107

OAK,TRIM4#

74230ARMREST ASSY, REAR, RH

main74250-35020-B0iKZN185,RZN185,VZN185199511-199807

MOONMIST,TRIM1#

main74250-35020-E0iKZN185,RZN185,VZN185199511-199807

OAK,TRIM4#

main74250-35030-B2iVZN185199511-199708

SPORT SEAT(YH**),MEDIUM MOONMIST,TRIM1#

main74250-35030-E1iVZN185199511-199708

SPORT SEAT(YH**),MEDIUM OAK,TRIM4#

main74250-35050-E0iKZN185,VZN185..EFI,TBO199511

LEATHER SPORT SEAT(LC**/LD**/LH**/LK**),MD.OAK,TRIM4#

main74250-35080-B1iKZN185,RZN185,VZN185199807-200008

MD.MOON MIST,TRIM1#

main74250-35080-E1iKZN185,RZN185,VZN185199807-200008

OAK,TRIM4#

main74250-35130-B1iVZN185199708-200008

SPORT SEAT(FG**/YH**),MEDIUM MOONMIST,TRIM1#

main74250-35130-E1iVZN185199708-200008

SPORT SEAT(FG**/YH**),MEDIUM OAK,TRIM4#

main74250-35170-B0iKZN185,RZN18#200008-200107

MEDIUM CHARCOAL,TRIM1#

main74250-35170-E0iKZN185,RZN18#200008-200107

SPORT SEAT(FH**),MEDIUM OAK,TRIM4#

main74250-35171-B2iKZN185,RZN18#,VZN18#200107

CHARCOAL,TRIM1#

main74250-35171-E1iKZN185,RZN18#,VZN18#200107

OAK,TRIM4#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-35050-C0iRZN185199511-199807

W(ELECTROMAGNETIC LOCK),BLACK,TRIM1#,4#

main74231-35080-C0iKZN185,VZN185199511-199603

W(POWER WINDOW & ELECTROMAGNETIC LOCK),BLACK,TRIM1#,4#

main74231-35120-C0iKZN185,RZN185,VZN185199608-199807

W(POWER WINDOW & ELECTROMAGNETIC LOCK),BLACK,TRIM1#,4#

main74231-35160-C0iKZN185,RZN18#,VZN18#199807

W(POWER WINDOW),BLACK,TRIM1#,4#

main74231-35230iKZN185,VZN18#200008

WOOD GRAIN,W(POWER WINDOW)

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74231-35050-C0iKZN185,VZN185199511-200008

BLACK,TRIM1#,4#

main74232-35020-C0iKZN185,VZN185199511-199603

W(POWER WINDOW & ELECTROMAGNETIC LOCK),BLACK,TRIM1#,4#

main74232-35080-C0iKZN185,RZN185,VZN185199608-199708

W(POWER WINDOW & ELECTROMAGNETIC LOCK),BLACK,TRIM1#,4#

main74232-35100-C0iKZN185,RZN18#,VZN18#199708

W(POWER WINDOW),BLACK,TRIM1#,4#

sub74232-35040

main74232-35190iKZN185,VZN18#200008

WOOD GRAIN,W(POWER WINDOW)

74240ARMREST ASSY, REAR, LH

main74260-35020-B0iKZN185,RZN185,VZN185199511-199807

MOONMIST,TRIM1#

main74260-35020-E0iKZN185,RZN185,VZN185199511-199807

OAK,TRIM4#

main74260-35030-B2iVZN185199511-199708

SPORT SEAT(YH**),MEDIUM MOONMIST,TRIM1#

main74260-35030-E1iVZN185199511-199708

SPORT SEAT(YH**),MEDIUM OAK,TRIM4#

main74260-35050-E0iKZN185,VZN185..EFI,TBO199511

LEATHER SPORT SEAT(LC**/LD**/LH**/LK**),MD.OAK,TRIM4#

main74260-35080-B1iKZN185,RZN185,VZN185199807-200008

MD.MOON MIST,TRIM1#

main74260-35080-E1iKZN185,RZN185,VZN185199807-200008

OAK,TRIM4#

main74260-35120-B1iVZN185199708-200008

SPORT SEAT(FG**/YH**),MEDIUM MOONMIST,TRIM1#

main74260-35120-E1iVZN185199708-200008

SPORT SEAT(FG**/YH**),MEDIUM OAK,TRIM4#

main74260-35160-B0iKZN185,RZN18#200008-200107

MEDIUM CHARCOAL,TRIM1#

main74260-35160-E0iKZN185,RZN18#200008-200107

SPORT SEAT(FH**),MEDIUM OAK,TRIM4#

main74260-35161-B2iKZN185,RZN18#,VZN18#200107

CHARCOAL,TRIM1#

main74260-35161-E1iKZN185,RZN18#,VZN18#200107

OAK,TRIM4#

9046804147

main90468-04147

9046805125

main90468-05125

8 parts on this diagram · 2 diagrams in section
