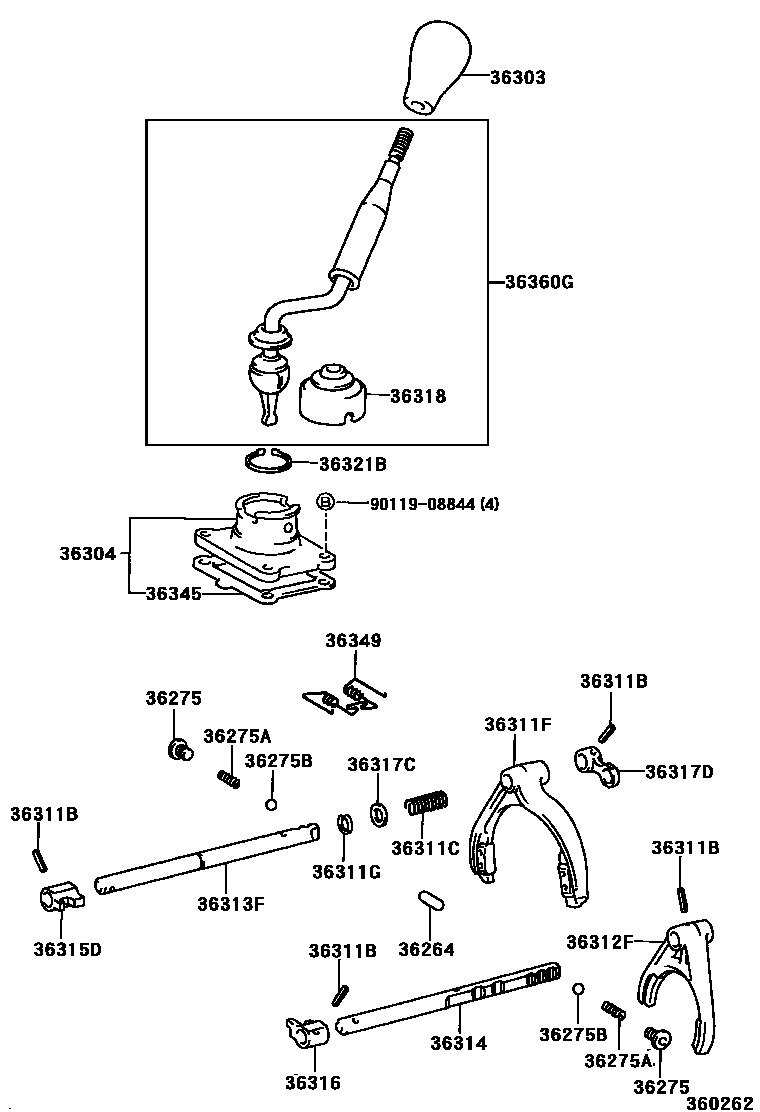

Toyota 4RUNNER — TRANSFER LEVER & SHIFT ROD
36264PIN OR ROLLER, SHIFT INTER-LOCK
L=8.6,OD=6
L=25.7,OD=9.53
36275PLUG, SHIFT DETENT BALL SPRING
36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)
L=23
36275BBALL, SHIFT DETENT
OD=9.52,STEEL
36303KNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM1#,4#
BLACK,TRIM1#,4#; BLACK,TRIM4#
BLACK,TRIM4#
36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER
36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
L=22
36311CSPRING, COMPRESION (FOR SHIFT FORK)
36311FFORK, TRANSFER GEAR SHIFT, NO.1
W(*ADD)
36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
36312FFORK, TRANSFER GEAR SHIFT, NO.2
36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK
36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK
36315DHEAD, TRANSFER GEAR SHIFT, NO.1
36316HEAD, TRANSFER GEAR SHIFT, NO.2
36317CSTOPPER, TRANSFER SHIFT SHAFT
36317DSTOPPER, NO.2, TRANSFER SHIFT SHAFT
36318BOOT, TRANSFER FRONT DRIVE SHIFT
36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)
36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER
36349SPRING, TRANSFER SELECT RETURN
36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT
9011908844
main90119-08844
23 parts on this diagram · 4 diagrams in section
TRANSFER LEVER & SHIFT ROD for Toyota 4RUNNER
This section contains 32 genuine Toyota parts for the TRANSFER LEVER & SHIFT ROD system of the Toyota 4RUNNER. Key components include: BUSH, TRANSFER SHIFT LEVER, PIN OR ROLLER, SHIFT INTER-LOCK, PLUG, SHIFT DETENT BALL SPRING, SPRING, COMPRESSION (FOR SHIFT DETENT BALL), BALL, SHIFT DETENT.
