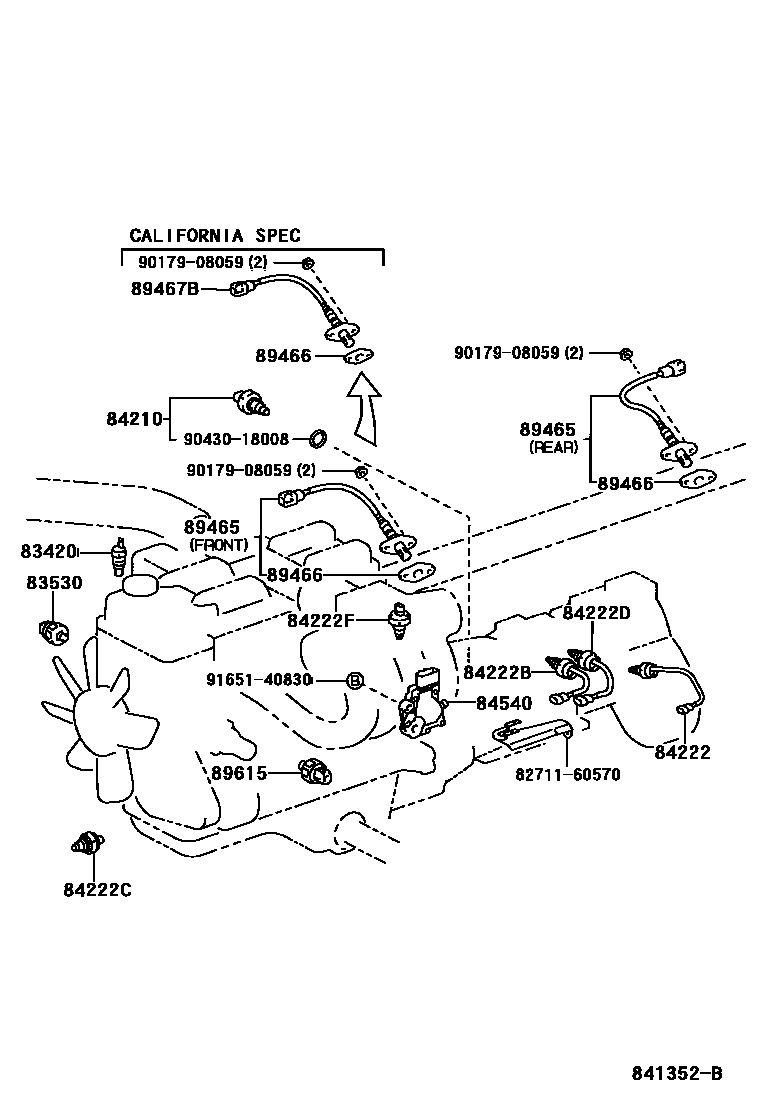

Toyota 4RUNNER — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 0006 1HEADER ROOF,CLUSTER PANEL,DOO0007 1HEADER ROOF,CLUSTER PANEL,DOO0008 1CENTER CLUSTER INTEGRATION 0009 1COWL 0010 1COWL 0011 1COMBINATION SWITCH 0012 1ROOF,SEAT,FLOOR & DOOR SWITCH

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iVZN18#199511

main83420-20040iRZN18#199511-200008

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iRZN18#,VZN18#199803

DENSO

main83530-30090iRZN18#,VZN18#199511-199803

main83530-60020iRZN18#,VZN18#199803

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iRZN18#,VZN185..5F199511-200008

sub84210-52050

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iVZN185200008

NO.1

main84222-35110iRZN185,VZN185..SR5B,SR5V199511-200008

main84222-35120iVZN185200008-200112

NO.2

main84222-35121iVZN185200112

NO.2

main84222-60080iVZN185..LULI199807-199909

NO.2

main84222-60081iVZN185..LULI199909-200008

NO.2

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-35080iRZN185,VZN185199511

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-35070iRZN185,VZN185199511-200008

84222DSWITCH, TRANSFER INDICATOR, NO.4

main84222-35090iRZN185,VZN185..4FC199511

84222FSWITCH, TRANSFER INDICATOR

main84222-12010iRZN185,VZN185199511-200008

84540SWITCH ASSY, NEUTRAL START

main84540-30270iRZN18#,VZN18#..4FC199511-200008

main84540-30320iVZN18#200008

89465SENSOR, OXYGEN

main89465-35570iRZN18#..4FC199908-200008

CALIFORNIA SPEC,REAR

main89465-35580iVZN18#200008

REAR

main89465-39605iRZN185..4FC199511-200008

REAR

main89465-39735iRZN18#199511-200008

FRONT

main89465-39825iRZN180,VZN180199511-200008

REAR

main89465-39835×2iVZN185..LULI199807-199809

FRONT

main89465-39855iRZN185..5F;VZN185..SR5V199807-200008

REAR

main89465-39895iVZN185..5F199511-199809

FRONT

main89465-49105iVZN185..4FC..SR5V199807-200008

CALIFORNIA SPEC,REAR

main89465-49135iVZN185..LULI199807-200008

CALIFORNIA SPEC,REAR

main89465-80029iVZN180199807-200008

CALIFORNIA SPEC,REAR

main89465-80030iVZN185..5F199807-200008

CALIFORNIA SPEC,REAR

main89465-80034iVZN18#..4FC199809-200008

FRONT

main89465-80035iVZN185..5F199809-200008

FRONT

main89465-80041iRZN18#..5F199906-199908

CALIFORNIA SPEC,REAR

main89467-35010iVZN180;VZN185..4FC..SR5V199807-199906

CALIFOLNIA SPEC,FRONT

main89467-35011iVZN18#..4FC199906

CALIFORNIA SPEC,FRONT

main89467-35020iVZN185..5F199807-199906

main89467-35021iVZN185..5F199906-200008

89466GASKET, OXYGEN SENSOR

main89466-20020iRZN18#..4FC199908-200008

CALIFORNIA SPEC

89467BSENSOR, AIR FUEL RATIO

main89467-34021iRZN18#..5F199908-200008

main89467-35070iRZN18#..5F199906-199908

CALIFORNIA SPEC

main89467-35090iRZN18#..4FC199906-200008

CALIFORNIA SPEC

89615SENSOR, KNOCK CONTROL

main89615-12040×2iVZN18#199511

MATSUSHITA

main89615-12050×2iVZN18#199511

DENSO

sub89615-12090

main89615-26010iRZN18#199906-200008

DENSO

main89615-50010iRZN18#199511-200008

MATSUSHITA

8271160570WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60570

9017908059

main90179-08059

9043018008

main90430-18008

9165140830

main91651-40830

17 parts on this diagram · 12 diagrams in section
