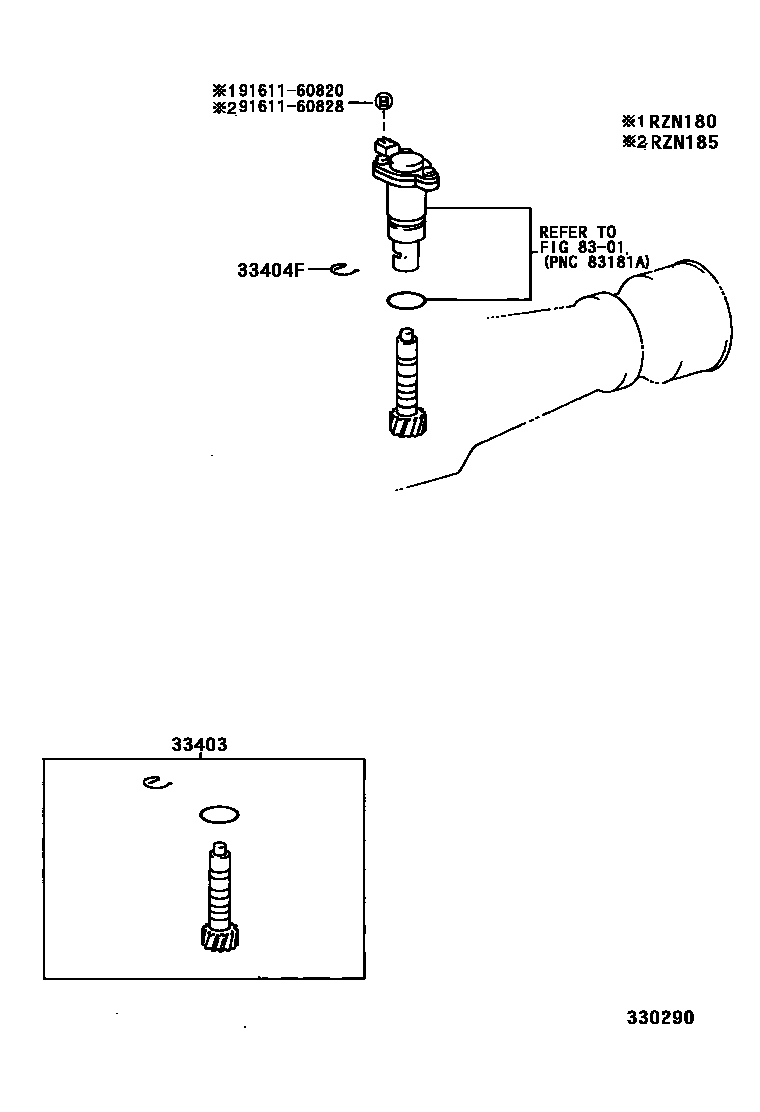

Toyota 4RUNNER — SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-39365i199608-200008

N=30,MARK 30:11,W(265/70R16 TIRE)

main33403-39415i199511-200008

N=33,MARK 33:11,W(265/70R16 TIRE)

main33403-39425i199511-200008

N=32,MARK 32:11

main33403-39515i199511-200008

N=29,MARK 29:11

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005i199511-200008

8301METER

→ Go to FIG 83-01

9161160820

main91611-60820

9161160828

main91611-60828

5 parts on this diagram · 1 diagram in section

SPEEDOMETER DRIVEN GEAR (MTM) for Toyota 4RUNNER

This section contains 5 genuine Toyota parts for the SPEEDOMETER DRIVEN GEAR (MTM) system of the Toyota 4RUNNER. Key components include: GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM), CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE), METER.
