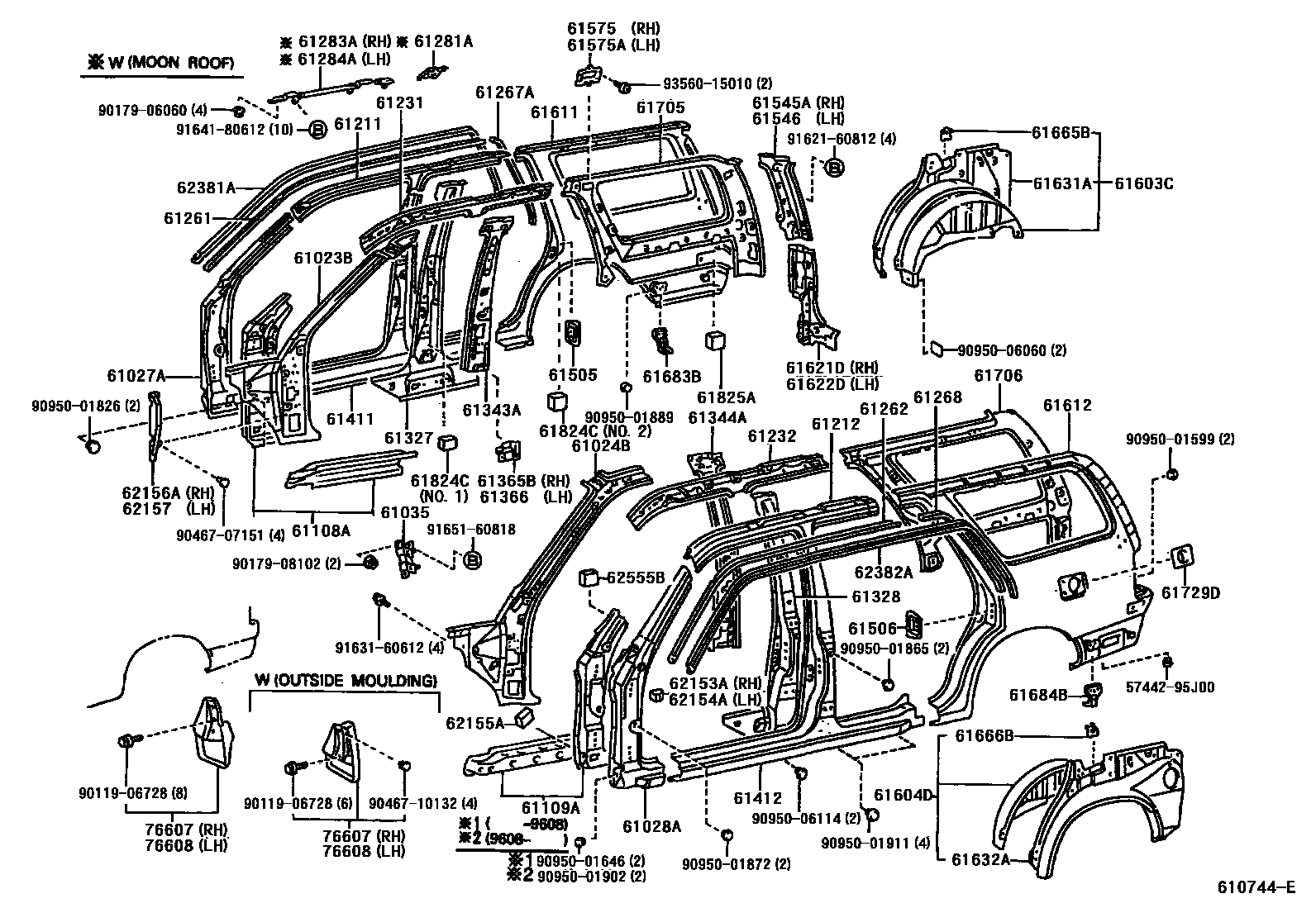

Toyota 4RUNNER — SIDE MEMBER
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
W(REAR WIPER)
W(REAR WIPER)
W(REAR WIPER)
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH
61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
W(MOON ROOF)
W(MOON ROOF)
61232RAIL, ROOF SIDE, INNER LH
W(MOON ROOF)
W(MOON ROOF)
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
61268CHANNEL, ROOF DRIP SIDE, REAR LH
61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH
61284ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH
61327REINFORCEMENT, CENTER BODY PILLAR, OUTER RH
61328REINFORCEMENT, CENTER BODY PILLAR, OUTER LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61365BREINFORCE, BELT ANCHOR TO CENTER PILLAR, NO.3 RH
61366REINFORCE, BELT ANCHOR TO CENTER PILLER, NO.3 LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61505REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH
61506REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH
61545APANEL SUB-ASSY, CAB REAR PILLAR, INNER RH
W(3RD SEAT)
61546PANEL SUB-ASSY, CAB REAR PILLAR, INNER LH
W(3RD SEAT)
61575PLATE, CAB REAR PILLAR, UPPER LH
61575APLATE, CAB REAR PILLAR, UPPER LH
61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
61604DPANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH
61611PANEL, QUARTER, RH
W(QUARTER WHEEL OPENING MOULDING)
W(LARGE FENDER)
W(LARGE FENDER)
W(QUARTER WHEEL OPENING MOULDING)
BADLANDS(CANADA)
W(LARGE FENDER)
61612PANEL, QUARTER, LH
W(QUARTER WHEEL OPENING MOULDING)
W(LARGE FENDER)
W(LARGE FENDER)
W(QUARTER WHEEL OPENING MOULDING)
BADLANDS(CANADA)
W(LARGE FENDER)
61621DTROUGH, BACK DOOR OPENING, RH
61622DTROUGH, BACK DOOR OPENING, LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61665BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH
61666BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, LH
61683BBRACKET, REAR WHEEL OPENING, NO.1 RH
61684BBRACKET, REAR WHEEL OPENING, NO.1 LH
61705PANEL SUB-ASSY, ROOF SIDE, INNER RH
W(3RD SEAT)
61706PANEL SUB-ASSY, ROOF SIDE, INNER LH
W(3RD SEAT)
61729DPLATE, FUEL INLET BOX
61824CPAD, NOISE SHUTTER, NO.1
NO.1
61825APLATE, NOISE CONTROL, NO.2
62153APAD, COWL SIDE SILENCER, UPPER RH
62154APAD, COWL SIDE SILENCER, UPPER LH
62155APAD, COWL SIDE LOWER SILENCER
62156AINSULATOR, COWL SIDE, RH
62157INSULATOR, COWL SIDE, LH
62381AWEATHERSTRIP, ROOF SIDE RAIL, RH
62382AWEATHERSTRIP, ROOF SIDE RAIL, LH
62555BPAD, PILLAR, NO.5
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
NO PAINT REQ.,W/O(OUTSIDE MOULDING)
NO PAINT REQ.
NO PAINT REQ.,SILVER ME.
NO PAINT REQ.,DARK GRAY ME.
NO PAINT REQ.,SILVER ME.
NO PAINT REQ.,DARK GRAY ME.
WARM GRAY PEARL ME,1A5
LIMITED PEARL PAINT(USA),WHITE PM,KF7
LT.GREIGE ME.,3K4 ,3L5 ,8L7
LT.GREIGE ME.,K87 ,K89 ,K90 ,K92
LT.GREIGE ME.,K87 ,K89 ,K92
SILVER ME.,056 ,1C0 ,8N1
SILVER ME.,K72 ,K73
SILVER ME.,K73
SILVER ME.,KG0 ,K72 ,K73
BL.SILVER ME.,K82 ,K84 ,K85
WARM GRAY PEARL ME.,1A5
BADLANDS(CANADA),GRAY ME,KF9
GRAY ME,KF8 ,KF9 ,KG1 ,KG2 ,KG5 ,KG6 ,KG7 ,KG9
GRAY ME,KF9 ,KG2 ,KG7 ,KG9
GRAY ME,KF9 ,KG2 ,KG6 ,KG7 ,KG9
BLACK,202
BADLANDS(CANADA),BLACK,KA3
BLACK,KA3
BADLANDS(CANADA),RED M.M.,KH6
RED M.M.,KH6
CHAMPAGNE M.M.,KG4
DK.GREEN MC.,K79
DK.GREEN MC.,6Q7
BADLANDS(CANADA),DARK BLUE M.M.,KH7
DARL BLUE M.M.,KH7
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
NO PAINT REQ.
NO PAINT REQ.,W/O(OUTSIDE MOULDING)
NO PAINT REQ.,SILVER ME.
NO PAINT REQ.,DARK GRAY ME.
NO PAINT REQ.,SILVER ME.
NO PAINT REQ.,DARK GRAY ME.
WARM GRAY PEARL ME,1A5
LIMITED PEARL PAINT(USA),WHITE PM,KF7
LT.GREIGE ME.,K87 ,K89 ,K92
LT.GREIGE ME.,3K4 ,3L5 ,8L7
LT.GREIGE ME.,K87 ,K89 ,K90 ,K92
SILVER ME.,K72 ,K73
SILVER ME.,K73
SILVER ME.,056 ,1C0 ,8N1
SILVER ME.,KG0 ,K72 ,K73
BL.SILVER ME.,K82 ,K84 ,K85
WARM GRAY PEARL ME.,1A5
GRAY ME,KF8 ,KF9 ,KG1 ,KG2 ,KG5 ,KG6 ,KG7 ,KG9
GRAY ME,KF9 ,KG2 ,KG7 ,KG9
BADLANDS(CANADA),GRAY ME,KF9
GRAY ME,KF9 ,KG2 ,KG6 ,KG7 ,KG9
BADLANDS(CANADA),BLACK,KA3
BLACK,202
BLACK,KA3
BADLANDS(CANADA),RED M.M.,KH6
RED M.M.,KH6
CHAMPAGNE M.M.,KG4
DK.GREEN MC.,6Q7
DK.GREEN MC.,K79
DARL BLUE M.M.,KH7
BADLANDS(CANADA),DARK BLUE M.M.,KH7
5744295J00PLUG, STEP PANEL HOLE
main57442-95J00
9011906728
main90119-06728
9017906060
main90179-06060
9017908102
main90179-08102
9046707151
main90467-07151
9046710132
main90467-10132
9095001599
main90950-01599
9095001646
main90950-01646
9095001826
main90950-01826
9095001865
main90950-01865
9095001872
main90950-01872
9095001889
main90950-01889
9095001902
main90950-01902
9095001911
main90950-01911
9095006060
main90950-06060
9095006114
main90950-06114
9162160812
main91621-60812
9163160612
main91631-60612
9164180612
main91641-80612
9165160818
main91651-60818
9356015010
main93560-15010
80 parts on this diagram · 1 diagram in section
SIDE MEMBER for Toyota 4RUNNER
This section contains 80 genuine Toyota parts for the SIDE MEMBER system of the Toyota 4RUNNER. Key components include: PILLAR SUB-ASSY, FRONT BODY, INNER RH, PILLAR SUB-ASSY, FRONT BODY, INNER LH, PILLAR SUB-ASSY, FRONT BODY, OUTER RH, PILLAR SUB-ASSY, FRONT BODY, OUTER LH, BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH.
