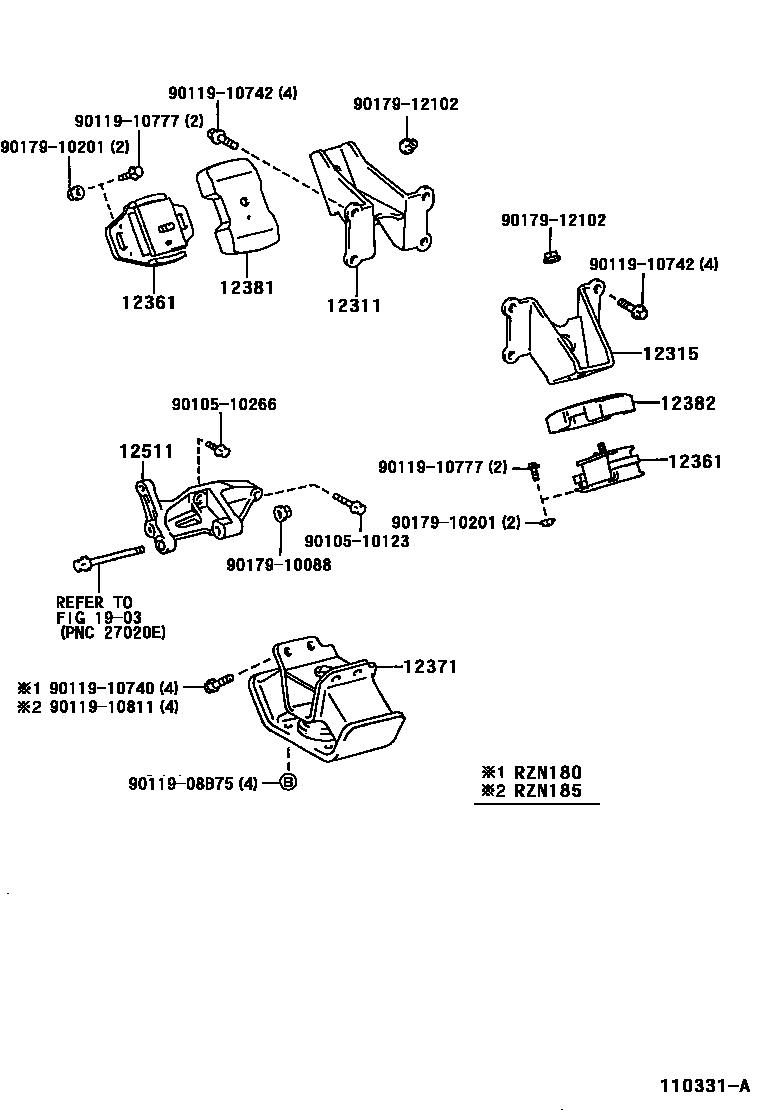

Toyota 4RUNNER — MOUNTING

0001 1 0002 1 0003 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-62030i5VZFE..VZN18#199511-199807

main12311-62060i5VZFE..VZN18#199807-200206

main12311-62070i5VZFE..VZN18#200206

main12311-75050i3RZFE..RZN18#199511-200008

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-62040i5VZFE..VZN18#199511-199807

main12315-62070i5VZFE..VZN18#199807-200206

main12315-62080i5VZFE..VZN18#200206

main12315-75050i3RZFE..RZN18#199511-200008

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-35090×2i3RZFE..RZN18#199511-200008

sub12361-35091

main12361-62090×2i5VZFE..VZN180199511-199807

main12361-62110×2i5VZFE..VZN185199511-199807

main12361-62140×2i5VZFE..VZN18#199807

sub12361-62160

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-62070i5VZFE..VZN180199511-199807

main12371-62110i5VZFE..VZN185..5F199511-200008

main12371-62120i5VZFE..VZN185..4FC199511

main12371-62180i5VZFE..VZN180199807

main12371-75020i3RZFE..RZN180199511-199807

main12371-75030i3RZFE..RZN185..5F199511-200008

main12371-75040i3RZFE..RZN185..4FC199511-200008

main12371-75100i3RZFE..RZN180199807-200008

12381STABILIZER, ENGINE MOUNTING

main12381-62020i5VZFE..VZN18#199807

RH

main12381-65030×2i5VZFE..VZN18#199511-199807

main12381-75020i3RZFE..RZN18#199511-200008

main12382-62010i5VZFE..VZN18#199807

LH

12382STABILIZER, ENGINE MOUNTING, LH

main12382-75010i3RZFE..RZN18#199511-200008

12511BRACKET, ALTERNATOR, NO.1

main12511-62010i5VZFE..VZN18#199511

main12511-75030i3RZFE..RZN18#199511-199704

main12511-75040i3RZFE..RZN18#199704-199705

main12511-75041i3RZFE..RZN18#199705-200008

1903

9010510123

main90105-10123

9010510266

main90105-10266

9011908B75

main90119-08B75

9011910740

main90119-10740

9011910742

main90119-10742

9011910777

main90119-10777

9011910811

main90119-10811

9017910088

main90179-10088

9017910201

main90179-10201

9017912102

main90179-12102

18 parts on this diagram · 3 diagrams in section
